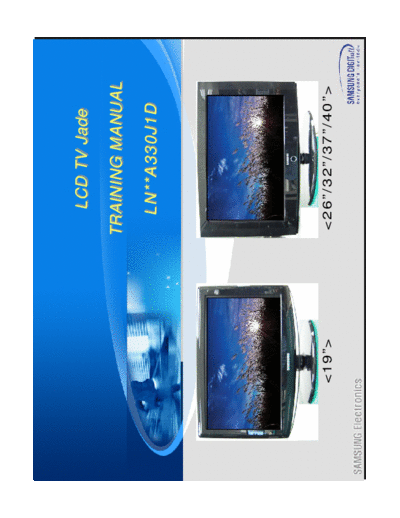

Image preview - the first page of the document
>> Download Samsung LN26B360C5DXZA Training Book documenatation <<
Text preview - extract from the document
LCD TV Jade
TRAINING MANUAL
LN**A330J1D
<19"> <26"/32"/37"/40">
Agenda
I. Understanding of LCD TV
II. Inside of Jade
III. Board description
IV. Disassembly
V. Trouble Shooting
VI. Attachment
. Understanding of LCD TV
UNDERSTANDING
OF LCD TV
. Understanding of LCD TV
CONTENTS
I. LCD TV advantage
II. Basic theory of LCD PANEL
III. Basic block of LCD TV
IV. Basic block of main PBA
V. What is scaler?
VI. TV signal types
VII. TV connector types
. Understanding of LCD TV
LCD TV Advantage
High Sharpness, Resolution
Thin and Light
Low Power Consumption
Real HDTV
Long Life
. Understanding of LCD TV
Basic Theory Of LCD PANEL
A) Lamp Make Light
B) TFT Adjust LCD Array
C) LCD Array can Adjust Light amount (Like Camera Iris )
D) Color Filter Make RGB Color
A) B) C)
D)
A) Back Light B) TFT C) LCD D) Color Filter
. Understanding of LCD TV
Basic Block of LCD TV
De v e lo p e m e n t P a r t
L C D P a ne l
Dig it a l
A/ D C o nv e r t e r S ig na l
Gr a p h ic Sig na l P r o c e s s o r
( IMAGE S C AL E R)
Ana lo g /
Dig it a l SMP S
Sig na l Aud io
