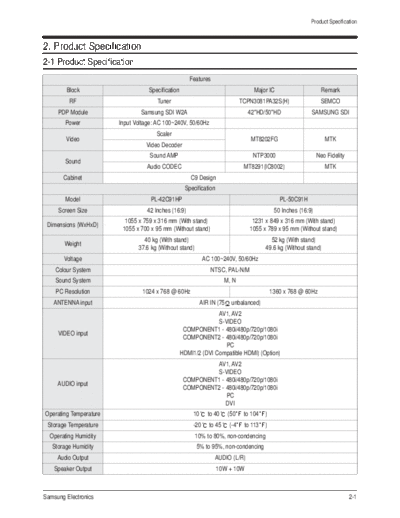

Image preview - the first page of the document
>> Download Product Specification documenatation <<
Text preview - extract from the document
Product Specification
2. Product Specification
2-1 Product Specification
Features
Block Specification Major IC Remark
RF Tuner TCPN3081PA32S(H) SEMCO
PDP Module Samsung SDI W2A 42"HD/50"HD SAMSUNG SDI
Power Input Voltage: AC 100~240V, 50/60Hz
Scaler
Video MT8202FG MTK
Video Decoder
Sound AMP NTP3000 Neo Fidelity
Sound
Audio CODEC MT8291(IC8002) MTK
Cabinet C9 Design
Specification
Model PL-42C91HP PL-50C91H
Screen Size 42 Inches (16:9) 50 Inches (16:9)
1055 x 759 x 316 mm (With stand) 1231 x 849 x 316 mm (With stand)
Dimensions (WxHxD)
1055 x 700 x 95 mm (Without stand) 1055 x 789 x 95 mm (Without stand)
40 kg (With stand) 52 kg (With stand)
Weight
37.6 kg (Without stand) 49.6 kg (Without stand)
Voltage AC 100~240V, 50/60Hz
Colour System NTSC, PAL-N/M
Sound System M, N
PC Resolution 1024 x 768 @ 60Hz 1360 x 768 @ 60Hz
ANTENNA input AIR IN (75 unbalanced)
AV1, AV2
S-VIDEO
COMPONENT1 - 480i/480p/720p/1080i
VIDEO input
COMPONENT2 - 480i/480p/720p/1080i
PC
HDMI1/2 (DVI Compatible HDMI) (Option)
AV1, AV2
S-VIDEO
COMPONENT1 - 480i/480p/720p/1080i
AUDIO input
COMPONENT2 - 480i/480p/720p/1080i
PC
DVI
Operating Temperature 10 to 40 (50 to 104)
Storage Temperature -20 to 45 (-4 to 113)
Operating Humidity 10% to 80%, non-condencing
Storage Humidity 5% to 95%, non-condencing
Audio Output AUDIO (L/R)
Speaker Output 10W + 10W
Samsung Electronics 2-1
Product Specification
2-2 Specifications Analysis
: application, X: non-application
Model PL-42C91HP (Lily-42HD) PL-50C91H (Lily-50HD) PL-42P7HP (Spirra-42HD)
Design
Display Type PDP TV PDP TV PDP TV
Built-In Tuner O O O
PC Resolution 1024 x 768 @ 60Hz 1360 x 768 @ 60Hz 1024 x 768 @75Hz
PDP Module W2A W2A V5.1
Basic Screen Size 42 inches 50 inches 42 inches
Aspect Ratio 16 : 9 16 : 9 16 : 9
1055 x 759 x 316 mm (With stand) 1231 x 849 x 316 mm (With stand)
Dimensions (WxHxD) 1055 x 775 x 341 mm (With stand)
1055 x 700 x 95 mm (Without stand) 1055 x 789 x 95 mm (Without stand)
40 kg (With stand) 52 kg (With stand)
Weight 40.4 kg (With stand)
37.6 kg (Without stand) 49.6 kg (Without stand)
Brightness 1,100 Cd/m2 1,100 Cd/m2 1,100 Cd/m2
Picture Contrast Ratio 10000:1 10000:1 10000:1
Image Enhacer FBE2 FBE2 FBE
Equalizer O O O
Auto Volume O O O
Audio Surround Sound SRS TruSurround SRS TruSurround SRS TruSurround
Speaker Output 10 W + 10 W 10 W + 10 W 15 W + 15 W
Speaker Included Included Included
PIP O O O
Double Screen O O X
Caption O O X
Still Image O O O
Features
My Color Control O O X
Color Weakness X X X
Energy Saving O O O
Screen Burn Protection O O O
Antenna 1 Input 1 Input 1 Input
CVBS AV1(Rear)/AV2(Side) AV1(Rear)/AV2(Side) 1AV (Rear)
S-Video 1 Input 1 Input 1 Input
Component(Y/PB/PR) 2 Input 2 Input 2 Input
PC(D-SUB) 1 Input 1 Input 1 Input
Connections
DVI O O X
HDMI 1 Input 1 Input 1 Input
Sub Woofer X X X
Optical X X X
Coaxial X X X
For the power supply and power consumption, refer to the label attached to the product.
2-2 Samsung Electronics
Product Specification
2-3 Accessories
Accessories Item Item code Remark
Remote Control BN59-00604A
Batteries 4301-000103
XAP-3903-000144
Power Cord
XAZ-3903-000195
Owner's Instructions BN68-00866X
Warranty Card XAP-AA68-03727A
XAZ-BN68-00580A
Safety Guide Manual AA68-03242F
Supplied Accessories
Cloth-Clean BN63-01798A Samsung Service center
Ferrite Core for
3301-001110
Power Cord
Ferrite Core for
3301-001305
Side-AV/S-VIDEO
Ferrite Core for
3301-001456
Headphone
Cover-Bottom BN63-03055A
Screws (2ea) 6003-001621
S-VIDEO Cable
BN39-00149A
1200mm
Accessories that can be purchased
HDMI Cable
BN39-00641A
3000mm
additionally
Electronics Store/
Internal shopping mall
HDMI/DVI cable
BN39-00643A
3000mm
Component Cables (RCA)
BN39-00279A
1500mm
Samsung Electronics 2-3
Product Specification
Accessories Item Item code Remark
Accessories that can be purchased
PC Cable
BN39-00115A
1830mm
additionally
PC Audio Cable Electronics Store/
BN39-00061B
2000mm Internal shopping mall
Antenna Cable
BN39-00333A
3000mm
2-4 Samsung Electronics
