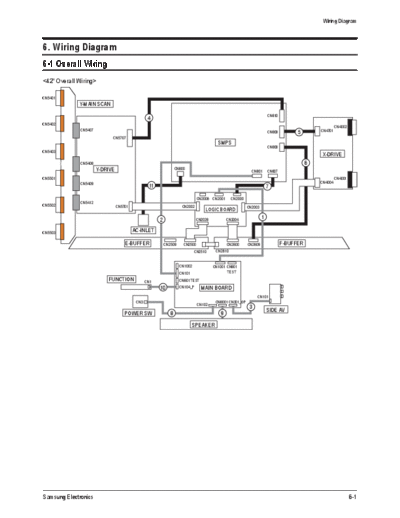

Image preview - the first page of the document
>> Download Wiring Diagram documenatation <<
Text preview - extract from the document
Wiring Diagram
6. Wiring Diagram
6-1 Overall Wiring
<42" Overall Wiring>
CN5401
Y-MAIN SCAN
CN810
4
CN5402
CN4002
CN5407 CN4701
CN809 5
CN5707
SMPS
CN808
CN5403
X-DRIVE
CN5408 6
Y-DRIVE CN800 CN801 CN807
CN5501 CN4001
CN5409 CN4004
11 7
CN2006 CN2001 CN2000
CN5412
CN5502 CN5701 CN2002 CN2003
?
LOGIC BOARD
2 CN2028 CN2004 1
CN5503 AC-INLET
E-BUFFER CN2509 CN2500 CN2600 CN2609 F-BUFFER
CN2510 CN2610
CN1002 CN1001 CN901
CN101 TEST
FUNCTION CN1 CN601 TEST
10 CN104_P MAIN BOARD
CN101
CN3 CN8001 CN301_OP
CN102
3 SIDE AV
POWER SW 8 9
SPEAKER
Samsung Electronics 6-1
Wiring Diagram
<50" Overall Wiring>
CN5401
Y-MAIN SCAN(HIGH)
4
CN810
CN5402
CN5707 CN4002
CN809 5 CN4701
CN5407
SMPS
CN808
CN5403 CN4001
X-DRIVE
CN5412
Y-DRIVE CN800 CN801 CN807
CN5501 CN4000
CN4004
CN5507 7
11 2 CN2001 CN2000
CN2006
CN2003
CN5502 CN5701 CN2002
LOGIC BOARD
CN2005 6
1
Y-MAIN SCAN(LOW) CN2004
CN5503 AC-INLET
CN2509 E-BUFFER CN2500 CN2600 F-BUFFER CN2609
CN2510 CN2610
CN1002 CN1001 CN901
CN101 TEST
FUNCTION CN1 CN601 TEST
10 CN104_P MAIN BOARD
CN101
CN3 CN8001 CN301_OP
CN102
3 SIDE AV
POWER SW 8 9
SPEAKER
The code number of cable(Lead-connector) can be changed, see "5. Exploded View & Part List."
Use LVDS 31P-30P POWER 24P AC_INPUT
42" - BN39-00859A 42" - 2901-001378
Code BN39-00881A
50" - BN39-00817A 50" - 2901-001340
6-2 Samsung Electronics
Wiring Diagram
CN1401(MAIN B'D) CN2010(LOGIC B'D) CN101(MAIN B'D) CN801(SMPS)
Pin No. Signal Pin No. Signal Pin No. Signal Pin No. Signal
1 RxIN0- 16 NC 1 PS_ON 13 5V
2 RxIN0+ 17 GND 2 N/C (Auto_V) 14 5V
3 RxIN1- 18 WP 3 STBY 15 5V
4 RxIN1+ 19 SCL 4 GND_STBY 16 5V
5 RxIN2- 20 SDA 5 GND_18V AMP 17 GND_12V
6 RxIN2+ 21 LVDS Opt 6 GND_18V AMP 18 GND_12V
7 RxINCLK- 22 DCC Opt 7 18V AMP 19 12V
8 RxINCLK+ 23 GND 8 18V AMP 20 GND_12V
9 RxIN3- 24 GND 9 GND_5V 21 12V
10 RxIN3+ 25 GND 10 GND_5V 22 12V
11 NC 26 Vdd 11 GND_5V 23 N.C(FAN_ON)
12 NC 27 Vdd 12 GND_5V 24 N.C(FAN_DET)
13 NC 28 Vdd
14 NC 29 Vdd
15 NC 30 Vdd
CN1804(MAIN B'D) CN105(SIDE AV)
Pin No. Signal Pin No. Signal Pin No. Signal Pin No. Signal
1 GND 12 TXC- 23 NC 34 VIDEO_SR_IN
2 TX2+ 13 GND 24 NC 35 VIDEO_SL_IN
3 TX2- 14 MICOM_CEC 25 GND 36 HP_IDENT
4 GND 15 GND 26 SVHS_IDENT 37 HP_OUT_R
5 TX1+ 16 TSCL 27 SVHS_Y 38 HP_OUT_L
6 TX1- 17 TSDA 28 GND 39 USB_VCC
7 GND 18 LSCL 29 SVHS_C 40 B1.8V
8 TX0+ 19 HDMI3_5V 30 GND 41 B3.3V
9 TX0- 20 HPD_SIL9185 31 VIDEO_IDENT
10 GND 21 DDC_WP 32 VIDEO_CVBS
11 TXC+ 22 GND 33 GND
Samsung Electronics 6-3
Wiring Diagram
CN805(SMPS) CN804(SMPS) CN806/CN807(SMPS) CN803(SMPS) CN1701(MAIN B'D)
CN5015(Y B'D) CN4000(X B'D) CN2501(E-BUFFER) CN2036(LOGIC B'D) POWER&IR
Pin No. Signal Pin No. Signal Pin No. Signal Pin No. Signal Pin No. Signal
1 Vg 1 Vg 1 Va 1 STBY 1 IR
2 GND 2 GND 2 GND 2 VS_ON 2 GND
3 GND 3 GND 3 5.3V 3 N/C 3 A5V_1
4 GND 4 Vs 4 PS_ON 4 LED_STB
5 Vs 5 Vs 5 RTN 5 BUZZER
6 Vs 6 5.3V 6 KEY_INPUT1
7 RTN 7 KEY_INPUT2
8 RTN 8 GND
9 5.3V 9 B5V
10 5.3V 10 LED_CTRL
CN1201(MAIN B'D) CN1702(MAIN B'D) CN800(SMPS)
SPEAKER FUNCTION AC INLET
Pin No. Signal Pin No. Signal Pin No. Signal
1 R+_OUT 1 KEY_INPUT1 1 AC Neutral
2 R-_OUT 2 KEY_INPUT2 2 N/C
3 L+_OUT 3 GND 3 AC Live
4 L-_OUT
6-4 Samsung Electronics
Wiring Diagram
6-1-1 Connector role
42" Loc. No. 50" Loc. No. Description
CN5401 CN5401 Horizontal Y-scan line(1~128) of Module and Y-Main Scan Connect
CN5402 CN5402 Horizontal Y-scan line(129~256) of Module and Y-Main Scan Connect
CN5403 CN5403 Horizontal Y-scan line(256~384) of Module and Y-Main Scan Connect
- CN5512 Y-Main Scan(High) and Y-Main Scan(Low) Connect
CN5501 CN5501 Horizontal Y-scan line(384~512) of Module and Y-Main Scan Connect
CN5502 CN5502 Horizontal Y-scan line(512~640) of Module and Y-Main Scan Connect
CN5503 CN5503 Horizontal Y-scan line(640~768) of Module and Y-Main Scan Connect
CN5407 CN5407 Upper Y-Drive and Y-Main Scan Connect
CN5507 CN5507 Lower Y-Drive and Y-Main Scan Connect
CN5707 CN5707 Vs(205V),Vg(15v) Power input connect(6Pin) of Y-Drive
CN5701 CN5701 Y-Drive control signal from Logic Board
CN810 CN810 Vs(205V),Vg(15v) Power input connect(6Pin) of SMPS for Y-Drive
CN809 CN809 Vs(205V),Vg(15v) Power input connect(6Pin) of SMPS for X-Drive
CN808 CN808 Va(63V) ,5.3V Power input connect(3Pin) of SMPS for F-Buffer
CN807 CN807 Power input connect(10pin) for Logic Board
CN801 CN801 Image signal(LVDS) connect(41pin) from Main Board
CN800 CN800 AC Power input connect from AC-inlet
CN4002 CN4002 Horizontal X-scan line of Module and X-scan Connect(first Block)
CN4001 CN4001 Horizontal X-scan line of Module and X-scan Connect(second Block)
- CN4000 Horizontal X-scan line of Module and X-scan Connect(third Block)
CN2000 CN2000 Power input connect(10pin) of Logic Board from SMPS
CN2001 CN2001 Image signal(LVDS) connect(41pin) of Logic board from Main Board
CN2002 CN2002 Y-Drive control signal of Logic Board
CN2004 CN2005 Address Data(684th~1366th) connect for F-Buffer board
CN2028 CN2004 Address Data(1st~683th) connect for E-Buffer board
CN2500 CN2500 Address Data(1st~683th) connect from Logic Board
CN2510 CN2510 Power input connect from F-Buffer Board
CN2610 CN2610 Power input connect to E-Buffer Board
CN2600 CN2600 Address Data(684th~1366th) connect from Logic board
CN2609 CN2609 Va(63V) ,5.3V Power input connect(3Pin) from SMPS
CN1101 CN1101 Power input connect(24Pin) from SMPS
CN2202 CN2202 Image signal(LVDS) connect(41pin) for Logic board
CN1605 CN1605 Function input(source,ch up/down...) connect on Main board
CN1404 CN1404 Video signal input connect form Side AV ass'y
CN1606 CN1606 Power SW input connect on Main Board
CN1203 CN1203 Speak out connect on Main Board
CN101 CN101 Video signal input connect on Side AV ass'y
CN1 CN1 Function input(source,ch up/down...) connect to Main board
CN3 CN3 Power SW input connect to Main Board
Samsung Electronics 6-5
