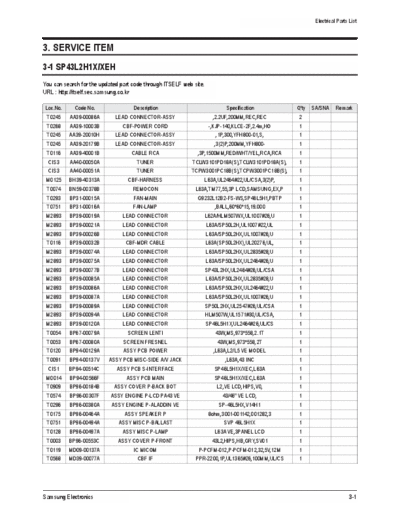

Image preview - the first page of the document
>> Download 04_Electrical Part List documenatation <<
Text preview - extract from the document
Electrical Parts List
3. SERVICE ITEM
3-1 SP43L2H1X/XEH
You can search for the updated part code through ITSELF web site.
URL : http://itself.sec.samsung.co.kr
Loc.No. Code No. Description Specification Q'ty SA/SNA Remark
T0245 AA39-00086A LEAD CONNECTOR-ASSY ,2.2UF,200MM,REC,REC 2
T0268 AA39-10003B CBF-POWER CORD -,KJP-140,KLCE-2F,2.4m,HO 1
T0245 AA39-20010H LEAD CONNECTOR-ASSY ,1P,300,YFH800-01,S, 1
T0245 AA39-20179B LEAD CONNECTOR-ASSY ,3(2)P,200MM,YFH800- 1
T0116 AA39-40001B CABLE RCA ,3P,1500MM,RED/WHT/YEL,RCA,RCA 1
CIS3 AA40-00050A TUNER TCLW3101PD18A(S),TCLW3101PD18A(S), 1
CIS3 AA40-00051A TUNER TCPW3001PC18B(S),TCPW3001PC18B(S), 1
M0125 BH39-40313A CBF-HARNESS L63A,UL2464#22,UL/CSA,3(2)P, 1
T0074 BN59-00378B REMOCON L63A,TM77,55,3P LCD,SAMSUNG,EX,P 1
T0293 BP31-00015A FAN-MAIN G9232L12B2-FS-WS,SP46L5H1,PBTP 1
T0751 BP31-00016A FAN-LAMP ,BALL,60*60*15,19.000 1
M2893 BP39-00019A LEAD CONNECTOR L62A/HLM507WX,UL1007#26,U 1
M2893 BP39-00021A LEAD CONNECTOR L63A/SP50L2H,UL1007#22,UL 1
M2893 BP39-00026B LEAD CONNECTOR L63A/SP50L2HX,UL1007#26,U 1
T0116 BP39-00032B CBF-MDR CABLE L63A(SP50L2HX),UL20276,UL, 1
M2893 BP39-00074A LEAD CONNECTOR L63A/SP50L2HX,UL2835#28,U 1
M2893 BP39-00075A LEAD CONNECTOR L63A/SP50L2HX,UL2464#26,U 1
M2893 BP39-00077B LEAD CONNECTOR SP43L2HX,UL2464#26,UL/CSA 1
M2893 BP39-00085A LEAD CONNECTOR L63A/SP50L2HX,UL2835#28,U 1
M2893 BP39-00086A LEAD CONNECTOR L63A/SP50L2HX,UL2464#22,U 1
M2893 BP39-00087A LEAD CONNECTOR L63A/SP50L2HX,UL1007#26,U 1
M2893 BP39-00089A LEAD CONNECTOR SP50L2HX,UL2547#26,UL/CSA 1
M2893 BP39-00094A LEAD CONNECTOR HLM507W,UL1571#30,UL/CSA, 1
M2893 BP39-00120A LEAD CONNECTOR SP46L5H1X,UL2464#26,UL/CS 1
T0054 BP67-00079A SCREEN LENTI 43W,MS,973*558,2.1T 1
T0053 BP67-00080A SCREEN FRESNEL 43W,MS,973*558,2T 1
T0120 BP94-00129A ASSY PCB POWER ,L63A,L2/L5 VE MODEL 1
T0091 BP94-00137V ASSY PCB MISC-SIDE A/V JACK ,L63A,43 INC 1
CIS1 BP94-00514C ASSY PCB S-INTERFACE SP46L5H1X/XEC,L63A 1
M0014 BP94-00566F ASSY PCB MAIN SP46L5H1X/XEC,L63A 1
T0909 BP96-00184B ASSY COVER P-BACK BOT L2,VE LCD,HIPS,V0, 1
T0574 BP96-00307F ASSY ENGINE P-LCD PA43 VE 43/46" VE LCD, 1
T0296 BP96-00380A ASSY ENGINE P-ALADDIN VE SP-46L5HX,V14H1 1
T0175 BP96-00464A ASSY SPEAKER P 8ohm,3001-001142,001282,3 1
T0751 BP96-00494A ASSY MISC P-BALLAST SVP 46L5H1X 1
T0128 BP96-00497A ASSY MISC P-LAMP L63A VE,3PANEL LCD 1
T0003 BP96-00553C ASSY COVER P-FRONT 43L2,HIPS,HB,GRY,SV01 1
T0119 MD09-00137A IC MICOM P-PCFM-012,P-PCFM-012,32,5V,12M 1
T0568 MD39-00077A CBF IF PPR-2200,1P,UL1365#26,100MM,UL/CS 1
Samsung Electronics 3-1
MEMO
3-2 Samsung Electronics
