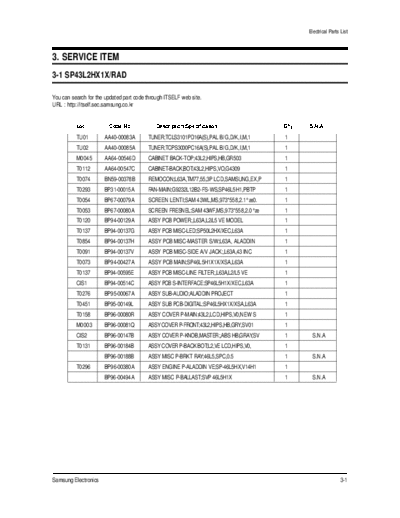

Image preview - the first page of the document
20040213164951421_l63a-eplis


>> Download 20040213164951421_l63a-eplis documenatation <<

Text preview - extract from the document
                                                                                           Electrical Parts List



3. SERVICE ITEM
3-1 SP43L2HX1X/RAD

You can search for the updated part code through ITSELF web site.
URL : http://itself.sec.samsung.co.kr


          Loc.          Code No              Description;Specification              Q'ty   S.N.A
          TU01        AA40-00083A        TUNER;TCLS3101PD16A(S),PAL B/G,D/K,I,M,1   1
          TU02        AA40-00085A        TUNER;TCPS3000PC16A(S),PAL B/G,D/K,I,M,1   1
          M0045       AA64-00546D        CABINET BACK-TOP;43L2,HIPS,HB,GR503        1
          T0112       AA64-00547C        CABINET-BACK,BOT;43L2,HIPS,VO,G4309        1
          T0074       BN59-00378B        REMOCON;L63A,TM77,55,3P LCD,SAMSUNG,EX,P   1
          T0293       BP31-00015A        FAN-MAIN;G9232L12B2-FS-WS,SP46L5H1,PBTP    1
          T0054       BP67-00079A        SCREEN LENTI;SAM 43WL,MS,973*558,2.1
