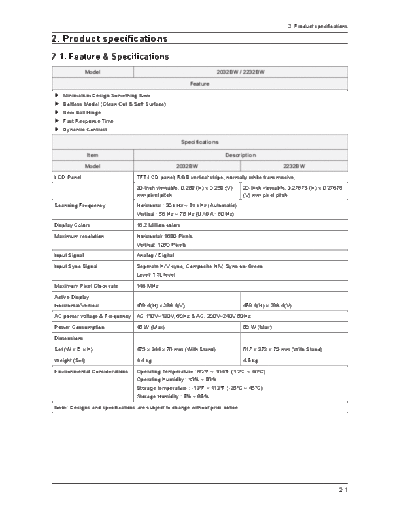

Image preview - the first page of the document



>> Download 2232BW[1] documenatation <<

Text preview - extract from the document

                                                                                                2. Product specifications

2. Product specifications
2-1. Feature & Specifications
               Model                                                2032BW / 2232BW

                                                          Feature

 Minimalism Design Something New
 Boltless Model (Clean Cut & Soft Surface)
 New Ball Hinge
 Fast Response Time
 Dynamic Contrast

                                                       Specifications

               Item                                                     Description
               Model                                2032BW                                    2232BW
LCD Panel                        TFT-LCD panel, RGB vertical stripe, normally white transmissive,
                                 20-Inch viewable, 0.258 (H) x 0.258 (V)       20-Inch viewable, 0.27675 (H) x 0.27675
                                 mm pixel pitch                                (V) mm pixel pitch
Scanning Frequency               Horizontal : 30 kHz ~ 81 kHz (Automatic)
                                 Vertical : 56 Hz ~ 75 Hz (UXGA : 60 Hz)
Display Colors                   16.2 Million colors
Maximum resolution               Horizontal: 1680 Pixels
                                 Vertical: 1050 Pixels
Input Signal                     Analog / Digital
Input Sync Signal                Seperate H/V sync, Composite H/V, Sync-on-Green
                                 Level: TTL level
Maximum Pixel Clock rate         146 MHz
Active Display
Horizontal/Vertical              459.4(H) x 296.4(V)                           459.4(H) x 296.4(V)
AC power voltage & Frequency AC 110V~130V, 60Hz & AC, 200V~240V 50Hz
Power Consumption                45 W (Max)                                    50 W (Max)
Dimensions
Set (W x D x H)                  476 x 344 x 70 mm (With Stand)                517 x 372 x 70 mm (With Stand)
Weight (Set)                     4.4 kg                                        4.5 kg
Environmental Considerations     Operating Temperature : 50
