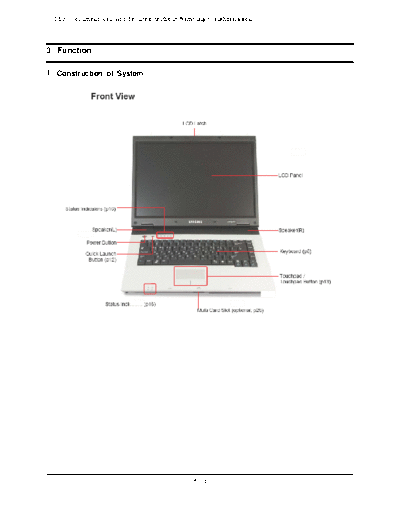

Image preview - the first page of the document
>> Download 05_Operation Instruction & Installation documenatation <<
Text preview - extract from the document
- This Document can not be used without Samsung's authorization -
3. Function
1) Construction of System
3- 1
- This Document can not be used without Samsung's authorization -
3. Function
3- 2
- This Document can not be used without Samsung's authorization -
3. Function
3- 3
- This Document can not be used without Samsung's authorization -
3. Function
2) Keyboard
3- 4
- This Document can not be used without Samsung's authorization -
3. Function
3- 5
- This Document can not be used without Samsung's authorization -
3. Function
3) User define button
3- 6
- This Document can not be used without Samsung's authorization -
3. Function
4) Multi Card Slot
3- 7
- This Document can not be used without Samsung's authorization -
3. Function
3- 8
- This Document can not be used without Samsung's authorization -
3. Function
3- 9
- This Document can not be used without Samsung's authorization -
3. Function
5) PC Card Slot
3- 10
- This Document can not be used without Samsung's authorization -
3. Function
6) System Main board.
(1) TOP
No. Item No. Item
1 RTC battery 17 USB connector x 2
2 South Bridge (ATI SB450-rev:A14) 18 External Mic jack
3 Clock chipset 19 Headphone jack
4 MICOM 20 PCMCIA connector
5 BIOS ROM 21 Bluetooth connector (Factory Option)
6 Cardbus controller (R5C843) 22 HDD connector
7 User button 23 Bluetooth cable (Factory Option)
8 Power button 24 Bluetooth Module (Factory Option)
9 Touchpad button (Left) 25 LEDs
10 Touchpad button (Right) 26 Modem cable connector
11 USB connector x 2 27 Battery connector
12 CRT connector 28 RJ11 + Modem cable
13 SVHS connector 29 Speaker connector
14 AC connector 30 Keyboard connector
15 DMB Antenna connector (Factory Option) 31 ODD connector
16 LAN connector
3- 11
- This Document can not be used without Samsung's authorization -
3. Function
(2) BOTTOM
No. Item
1 CPU
2 North Bridge (ATI RC410MD/ME)
3 Thermal Sensor (W83L771WG)
4 LAN controller
5 Audio Codec (ALC262C)
6 Audio AMP
7 Modem
8 WLAN (Atheros)
9 FAN connector
10 DMB connector (Factory Option)
11 6-in-1 connector
12 DDR2 SODIMM connector
3- 12
