>> Download 08_Exploded View & Part List documenatation <<
Text preview - extract from the document
.
This Document can not be used without Samsung's authorization.
6. MECHANICAL EXPLODED VIEW AND PARTLIST

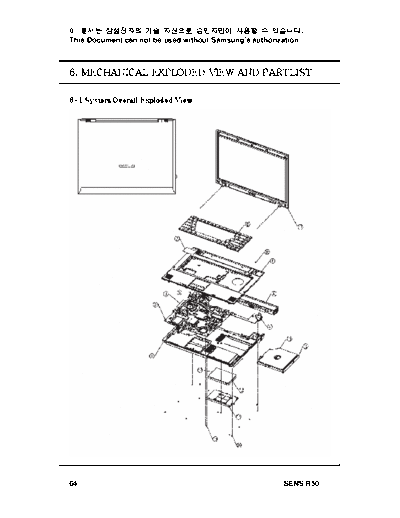

6-1 System Overall Exploded View
64 SENS R50
.
This Document can not be used without Samsung's authorization.
6. MECHANICAL EXPLODED VIEW AND PARTLIST
6-2 System Parlist
NP-R50K001/SER
No Part Code Part Name & Specification Q'ty SA/SNA Note
1 BA75-01621A UNIT-HOUING_BOTTOM;FIRENZE,DOMESTIC,PC/A 1 SA
2 BA92-03877A ASSY MOTHER BD-TOP;FIRENZE,TOP,MFCPGA,PA 1 SA
BA96-02888A ASSY COOLER-MCH;FIRENZE,MCH cooling,MCF- 1 SA
3
BA96-02888B ASSY COOLER-MCH;FIRENZE,MCH cooling,AD06 1 SA
4 BA92-03881A ASSY ETC-USB BOARD;FIRENZE,ASSY USB BOAR 1 SA
5 6001-001570 SCREW-MACHINE;CH,+,-,M2,L4,ZPC(BLK),SWRC 5 SA
6 BA75-01622A UNIT-HOUSING_TOP;FIRENZE,DOMESTIC,PC/ABS 1 SA
7 BA63-00509A SHIELD-MINIPCI;FIRENZE,STS304,W31*L51.6* 1 SNA
8 BA59-01587C KEYBOARD;Firenze,88Key,M/B,-,Rus,-,Black 1 SA
9 BA43-00144A BATTERY;AA-PB0NC6B,CICHLID2,Li-Ion,4800m 1 SA
10 BA81-01735A UNIT-BEZEL-DVDCOMBO;FIRENZE,PC/ABS,W129* 1 SA
BA59-01565A DVD-COMBO;TS-L462C,8X,190ms,EIDE,2M,8W,5 1 SA
11
BA59-01687A DVD-COMBO;DW-224E-C,24X,110ms,EIDE,2M,6W 1 SA
BA59-01323A HDD;40GB,MK4026GAX,S16383,H16,C16383,H9. 0.2 SA
BA59-01469A HDD;40G,HTS541040G9AT00,S63,H16,C16383,9 0.2 SA
12
BA59-01366A HDD;40GB,MHT2040AH,S63,H16,C16383,9.5MM, 0.3 SA
BA59-01649A HDD;40GB,MHV2040AH,S63,H16,C16383,H9.5,W 0.3 SA
14 BA81-01741A UNIT-DOOR_HDD;FIRENZE,DOMESTIC,W121*L80. 1 SA
15 6001-001570 SCREW-MACHINE;CH,+,-,M2,L4,ZPC(BLK),SWRC 5 SA
16 6001-001625 SCREW-MACHINE;BH,+,-,M2.6,L8,ZPC(BLK),SW 15 SA
SENS R50 65
.
This Document can not be used without Samsung's authorization.
6. MECHANICAL EXPLODED VIEW AND PARTLIST
6-3 LCD Exploded View
66 SENS R50
.
This Document can not be used without Samsung's authorization.
6. MECHANICAL EXPLODED VIEW AND PARTLIST
NP-R50K001/SER
No Part Code Part Name & Specification Q'ty SA/SNA Note
1 BA81-01757A HOUSING-LCD_BACK;FIRENZE,PC/ABS,W357*L26 1 SA
BA42-00137A ANTENNA-MAIN;SS-03-03-064,FIRENZE,2.4to6 1 SA
2
BA42-00139A ANTENNA-MAIN;81.ED115.005,FIRENZE,2.4to6 1 SA
BA42-00138A ANTENNA-AUX;SS-03-03-065,FIRENZE,2.4to6G 1 SA
3
BA42-00140A ANTENNA-AUX;81.ED115.006,FIRENZE,2.4to6G 1 SA
4 BA81-01758A KNOB-LATCH_LCD;FIRENZE,PC/ABS,W8.2*L157. 1 SA
5 BA61-00631A SPRING ETC-KNOB_LCD;AQUILLA,STS304,T0.25 1 SA
6 BA81-02038A TAPE-BACK_PLATE;FIRENZE,POLYESTER,W20*L2 3 SNA
7 BA61-00999A HINGE-R;FIRENZE,Mg,T3.0mm,-,-,NTR,-,CLIP 1 SA
8 BA61-00998A HINGE-L;FIRENZE,Mg,T3.0mm,-,-,NTR,-,CLIP 1 SA
9 BA61-01002A BRACKET-BACK_PLATE;FIRENZE,STS304,T0.5,W 1 SA
10 BA81-02037A SPONGE-LCD_BACK-UPPER;FIRENZE,CR SPONGE, 2 SA
11 BA81-01825A SPONGE-BACK_PLATE;FIRENZE,CR SPONGE,W100 2 SA
12 BA81-01824A SPONGE-BACK_CENTER;FIRENZE,CR SPONGE,W50 1 SA
13 BA59-01494A LCD PANEL-15.4WXGA_GLARE;LTN154X3-L03,WX 1 SA
15 6001-001650 SCREW-MACHINE;BH,+,-,M2,L3,NI PLT,SWRCH1 6 SA
16 BA61-01003A BRACKET-LCD154_L;FIRENZE,STS304,T0.8,W5. 1 SA
17 BA61-01004A BRACKET-LCD154_R;FIRENZE,STS304,T0.8,W5. 1 SA
18 6001-001650 SCREW-MACHINE;BH,+,-,M2,L3,NI PLT,SWRCH1 8 SA
19 BA70-00584A PLATE-MAGNET_LCD;GEMINI,MAGNET,-,T1.2mm, 1 SNA
20 BA72-00531A INSULATION-LCD_TAPE;MATRIX,PET(3M5413),T 1 SNA
21 BA81-01759A HOUSING-LCD154_FRT;FIRENZE,PC/ABS,T1.5,W 1 SNA
23 6001-001570 SCREW-MACHINE;CH,+,-,M2,L4,ZPC(BLK),SWRC 2 SA
24 6001-001406 SCREW-MACHINE;CH,+,M2.0,L6.0,NI PLT,SWRC 2 SA
25 6001-001406 SCREW-MACHINE;CH,+,M2.0,L6.0,NI PLT,SWRC 4 SA
26 BA73-00381A RUBBER-LCD_CAP;FIRENZE,VIBRATHANE,W6.93* 2 SA
27 BA73-00381B RUBBER-LCD_CAP;FIRENZE,VIBRATHANE,W7.0*L 3 SA
BA64-00700B LOGO-SAMSUNG;CICHLID2,NI,T0.75(W/Tape),W 1 SA
28
BA64-00700E LOGO-SAMSUNG;CICHLID2,NI,T0.75(W/Tape),W 1 SA
30 BA81-01961A INSULATOR-BACK154;FIRENZE,PET,W332.7*L23 1 SNA
SENS R50 67
.
This Document can not be used without Samsung's authorization.
6. MECHANICAL EXPLODED VIEW AND PARTLIST
6-5 TOP Ass'y Exploded View
68 SENS R50
.
This Document can not be used without Samsung's authorization.
6. MECHANICAL EXPLODED VIEW AND PARTLIST
NP-R50K001/SER
No Part Code Part Name & Specification Q'ty SA/SNA Note
1 BA81-01747A HOUSING-TOP;FIRENZE,PC/ABS,W357*L260.4*T 1 SNA
2 BA81-01755A LENS-LED_POWER;FIRENZE,PC,W15*L18*T1.5mm 1 SNA
3 BA81-01749A KNOB-TOUCHPAD;FIRENZE,PC/ABS,W24*L92*T1. 1 SNA
4 BA59-01557A BOARD-TOUCHPAD_IF;FIRENZE,A9300403,-,TOU 1 SA
5 BA41-00467A FFC-TOUCHPAD;CYGNUS,1.0,Film,12Pin,T0.01 1 SA
6 BA63-00029A GASKET-CPU;BLADE,71TS,T1.5,W4.0,L9.0mm,N 1 SNA
7 BA59-01340A BOARD-TOUCHPAD;CICHLID,TM51P-378,BONGWOO 1 SA
8 BA81-01106A TAPE-TOUCHPAD;CYGNUS,POLYESTER,W76*L39*T 1 SNA
9 BA81-01828A UNIT-BRACKET_TOUCHPAD;FIRENZE,STS304,W68 1 SA
9-1 BA81-01752A BRACKET-TOUCHPAD;FIRENZE,STS304,W68*L86* 1 SNA
9-2 BA81-01777A RUBBER-TOUCHPAD_UPPER;FIRENZE,VIBRATHANE 1 SNA
9-3 BA81-01783A RUBBER-TOUCHPAD_UPPER_L;FIRENZE,VIBRATHA 1 SNA
10 BA81-01778A RUBBER-TOUCHPAD_LOWER;FIRENZE,VIBRATHANE 1 SNA
11 BA81-01781A GASKET-TOUCHPAD;FIRENZE,Cu+Ni,DK1042,PU 2 SNA
12 BA39-00492A WIRE HARNESS-I/F_TOUCHPAD;FIRENZE,WIRE,U 1 SA
14 BA81-02081A SILICONE-GEL_BUSHING;FIRENZE,SILICONE GE 4 SA
15 BA96-02838A ASSY SPEAKER;FIRENZE,PB19RE04-2-AGH,195( 1 SA
16 BA81-00527A GASKET-USB;OSCAR,PU SPONGE,W8*10*10,EMI, 1 SNA
17 BA81-01751A BRACKET-REINFORCE_R;FIRENZE,Mg,W132*L180 1 SNA
18 BA81-01750A BRACKET-REINFORCE_L;FIRENZE,Mg,W46*L224* 1 SNA
19 BA81-01753A KNOB-POWER;FIRENZE,ABS,W18*L20*T1.2mm,-, 1 SNA
20 BA81-01754A KNOB-MIO;FIRENZE,ABS,W14*L15*T1.2mm,-,-, 1 SNA
21 BA81-01748A LENS-LED_FUNCTION;FIRENZE,PC,W9.3*L36*T1 1 SNA
22 BA59-01556A BOARD-ONTOP;FIRENZE,A9300404,-,ONTOP,10P 1 SA
23 BA39-00490A WIRE HARNESS-ONTOP;FIRENZE,WIRE,UL1571,1 1 SA
24 BA81-01827A UNIT-BRACKET_TOP-PLATE;FIRENZE,STS304,W4 1 SNA
24-1 BA81-01756A BRACKET-TOP_PLATE;FIRENZE,STS304,W44*L19 1 SNA
24-2 BA81-01782A TAPE-TOP_PLATE;FIRENZE,POLYESTER,W188.0* 2 SNA
25 BA81-01776A RUBBER-TOP_PLATE;FIRENZE,VIBRATHANE,W30. 3 SNA
26 BA61-00004A SPRING ETC-PS KEYBOARD;JAZZ,STS,-,-,-,-, 2 SNA
27 BA64-00019A KNOB-LOCK_KBD;AQUILLA,PC/ABS,T1.5,W3.5,L 2 SNA
28 BA81-01775A RUBBER-TOP;FIRENZE,VIBRATHANE,W6.0*L2.5* 2 SA
29 BA81-01775B RUBBER-TOP;FIRENZE,VIBRATHANE,W6.0*L2.5* 2 SA
30 BA81-01780A INSULATOR-TOUCHPAD_TOP;FIRENZE,PC SHEET, 1 SNA
32 6001-001650 SCREW-MACHINE;BH,+,-,M2,L3,NI PLT,SWRCH1 11 SA
SENS R50 69
.
This Document can not be used without Samsung's authorization.
6. MECHANICAL EXPLODED VIEW AND PARTLIST
6-7 Bottom Ass'y Overall Exploded View
70 SENS R50
.
This Document can not be used without Samsung's authorization.
6. MECHANICAL EXPLODED VIEW AND PARTLIST
NP-R50K001/SER
No Part Code Part Name & Specification Q'ty SA/SNA Note
1 BA81-01763A HOUSING-BOTTOM;FIRENZE,PC/ABS,W352.6*L25 1 SNA
2 BA81-01746A CAP-5N1;FIRENZE,PC,W5.9*L41.4*T1.0mm,BLA 1 SNA
3 BA81-01740A LINK-BATTERY_R;FIRENZE,POM,W27.3*L8.2*T1 1 SA
4 BA81-01737A LINK-BATTERY_L;FIRENZE,POM,W27.3*L8.2*T1 1 SA
5 BA61-00780A SPRING ETC-BATT;AQUILA-P,STS304,CD0.3,ID 2 SA
6 BA70-00322A BRACKET-KENSINGTON;DRAKE,SUS301,T0.6,-,- 1 SNA
7 BA81-01784A SPONGE-RHE;FIRENZE,NBR/PVC,W4.0*L60.0*T1 1 SNA
8 BA81-01957A GASKET-COMBO;FIRENZE,Cu+Ni, PU SPONGE,W7 3 SNA
9 BA81-01906A INSULATOR-GRILL_C;FIRENZE,PET,W55.4*L24. 1 SNA
11 BA81-01738A KNOB-BATTERY_L;FIRENZE,PC/ABS,W6.6*L6.6* 1 SA
12 BA81-01739A KNOB-BATTERY_R;FIRENZE,PC/ABS,W6.6*L24.7 1 SA
13 BA81-01743A UNIT-DOOR_MEMORY;FIRENZE,PC/ABS+STS,W77. 1 SA
14 BA81-01774A RUBBER-FOOT;FIRENZE,VIBRATHANE,W17.0*L6. 6 SA
15 BA81-01958A GASKET-HDD;FIRENZE,Cu+Ni, PU SPONGE,W5.0 2 SNA
16 BA73-00238A RUBBER-HDD_SHOCK;AQUILA,PORON,-,-,-,NTR, 1 SA
17 BA73-00262A RUBBER-HDD_SUPPORT;AQUILA,PORON,W6*L10*T 7 SA
18 BA81-01956A GASKET-1394;FIRENZE,Cu+Ni, PU SPONGE,W4. 1 SNA
19 BA81-02045A RUBBER-HDD;FIRENZE,PORON,W8.0*L8.0*T2.3m 4 SA
SENS R50 71
.
This Document can not be used without Samsung's authorization.
6. MECHANICAL EXPLODED VIEW AND PARTLIST
6-9 ODD Ass'y Exploded View
72 SENS R50
.
This Document can not be used without Samsung's authorization.
6. MECHANICAL EXPLODED VIEW AND PARTLIST
NP-R50K001/SER
No Part Code Part Name & Specification Q'ty SA/SNA Note
2 BA81-01760A KNOB-ODD;FIRENZE,PC/ABS,W7.5*L31.7*T0.7m 1 SNA
3 BA81-01761A LENS-ODD;FIRENZE,PC,W2.1*L7.3*T0.6mm,CLE 1 SNA
BA59-01565A DVD-COMBO;TS-L462C,8X,190ms,EIDE,2M,8W,5 1 SA
4
BA59-01687A DVD-COMBO;DW-224E-C,24X,110ms,EIDE,2M,6W 1 SA
5 BA81-01762A BRACKET-ODD;FIRENZE,SECC,W29.7*L8.7*T1.0 1 SA
6 6001-001650 SCREW-MACHINE;BH,+,-,M2,L3,NI PLT,SWRCH1 2 SA
SENS R50 73
.
This Document can not be used without Samsung's authorization.
6. MECHANICAL EXPLODED VIEW AND PARTLIST
NP-R50K001/SER
No Part Code Part Name & Specification Q'ty SA/SNA Note
0401-000191 DIODE-SWITCHING;MMBD4148,75V,200MA,SOT-2 2 SA
0402-001024 DIODE-RECTIFIER;MBR0540,40V,0.5A,SOD-123 2 SA
0402-001097 DIODE-SCHOTTKY;B140,40V,1000MA,DO-214AC, 2 SA
0402-001405 DIODE-RECTIFIER;B340A,40,3A,SMA,TP 3 SA
0501-000465 TR-SMALL SIGNAL;MMBT3904,NPN,350mW,SOT-2 2 SA
0505-000275 FET-SILICON;SI4435DY,P,-30V,+-8.0A,0.014 2 SA
0505-001386 FET-SILICON;FDS6680A,N,30V,12.5A,0.0095o 5 SA
0505-001507 FET-SILICON;SI4465DY,P,-8V,+-14A,0.009oh 1 SA
0505-001516 FET-SILICON;SI2315DS,P,-12V,+-3.5A,0.118 1 SA
0505-001562 FET-SILICON;SI4816DY,N,30V,5.3/7.7A,30/1 2 SA
0801-002252 IC-CMOS LOGIC;7S14,INVERTER,SOT-25,5P,63 1 SA
0801-002628 IC-CMOS LOGIC;7SZ08,2-INPUT AND GATE,SC7 2 SA
0902-001861 IC-MICROPROCESSOR;SL86K,1.4GHz,64Bit,uFC 1 SA
0904-001873 IC-BUS CONTROLLER;R5C841-208CSP-002,32Bi 1 SA
0904-001936 IC-I/O CONTROLLER;82801FBM,32Bit,MBGA,60 1 SA
1103-001239 IC-EEPROM;524C20,256x8,TSSOP,8P,4.4x3mm, 1 SA
1103-001244 IC-EEPROM;93LC46B,64X16BIT,SOP,8P,5X4MM, 1 SA
1105-001609 IC-DRAM MODULE;M470T3354BG0,32Mx64Bit,SO 0.7 SA
1105-001614 IC-DRAM MODULE;HYS64T32000HDL,-,256MByte 0.3 SA
1107-001465 IC-FLASH MEMORY;49LF008A,1Mx8,TSOP,40P,1 1 SA
1201-001559 IC-AUDIO AMP;4863,TSSOP,20P,173MIL,DUAL, 1 SA
1201-002024 IC-OP AMP;LM13700M,SO,TR,16P,9.9x3.9mm,D 1 SA
1203-002203 IC-POSI.ADJUST REG.;LP2951,SOP,8P,153MIL 1 SA
1203-002511 IC-PWM CONTROLLER;MB3887,SSOP,24P,305MIL 1 SA
1203-002746 IC-SWITCH REG.;LTC3735EG,SSOP,36P,12.8X5 1 SA
1203-002972 IC-POSI.FIXED REG.;TPS793475DBVR,SOT-23, 1 SA
SENS R50 73
.
This Document can not be used without Samsung's authorization.
6. MECHANICAL EXPLODED VIEW AND PARTLIST
NP-R50K001/SER
No Part Code Part Name & Specification Q'ty SA/SNA Note
1203-002982 IC-POWER SUPERVISOR;R5532V002-TR-FA,SSOP 1 SA
1203-002989 IC-SWITCH REG.;LTC3728LXCUH,QFN,32P,5x5m 2 SA
1203-003437 IC-PWM CONTROLLER;SC1486AIITSTR,TSSOP,28 1 SA
1203-003441 IC-SWITCH VOL. REG.;SC338AIMSTR,MSOP,10P 1 SA
1205-002484 IC-CODEC;AD1981BJST,LQFP,48P,7x7mm,PLAST 1 SA
1205-002557 IC-ETHERNET CONTROLLER;BCM4401KFB,FBGA,1 1 SA
1205-002705 IC-CLOCK GENERATOR;ICS954201BGLF,TSSOP,5 1 SA
1209-001507 IC-ETC, LINEAR;LM26CIM5X-TPA,SOT-23,5P,2 1 SA
1209-001531 IC-TEMP. TRANSDUCER;EMC6N300,SSOP,24P,8. 1 SA
1404-001089 THERMISTOR-PTC;0.21ohm,-,-,6.0V,40A,2.2A 3 SA
1404-001248 THERMISTOR-PTC;0.29OHM,-,-,24VAC,40A,0.7 1 SA
2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 2 SA
2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 2 SA
2007-000475 R-CHIP;1Mohm,1%,1/10W,TP,1608 1 SA
2007-007468 R-CHIP;121KOHM,1%,1/16W,TP,1005 1 SA
2203-000888 C-CER,CHIP;4.7nF,10%,50V,X7R,TP,1608 1 SA
2203-000998 C-CER,CHIP;0.047nF,5%,50V,C0G,1608 1 SA
2203-006048 C-CER,CHIP;100nF,10%,10V,X7R,1005 1 SA
2203-006090 C-CER,CHIP;10000nF,10%,6.3V,X5R,2012 14 SA
2203-006093 C-CER,CHIP;1000nF,+80-20%,6.3V,Y5V,1005 5 SA
2402-001122 C-POLYMER AL CHIP;100uF,20%,6.3V,-,TP,7. 1 SA
2603-000048 TRANS-MATCHING;-,1:1,1:1,-,6P:6P,11.81x8 1 SA
2801-004203 CRYSTAL-SMD;25MHz,30ppm,-,15.0pF,50ohm,T 1 SA
3301-000314 BEAD-SMD;120ohm,1.6x0.8x0.8mm,150mA,,,,4 4 SA
3701-001305 CONNECTOR-DSUB;15P,2R,FEMALE,ANGLE,AU 1 SA
3704-001153 SOCKET-IC;479P,PGA,AU,- 1 SA
3708-001507 CONNECTOR-FPC/FFC/PIC;24P,1MM,SMD-A,SN,Z 1 SA
3709-001322 CONNECTOR-CARD EDGE;124P,0.8,SMD-A,TIN,M 1 SA
3709-001325 CONNECTOR-CARD EDGE;200P,0.6mm,SMD-A,AU, 1 SA
3709-001327 CONNECTOR-CARD EDGE;200P,0.6mm,SMD-A,AUF 1 SA
3709-001382 CONNECTOR-CARD EDGE;44P,0.80mm,SMD-A,Gol 1 SA
3710-001150 SOCKET-BOARD TO BOARD;40P,2R,0.635mm,SMD 1 SA
3710-001763 SOCKET-BOARD TO BOARD;30P,2R,0.8MM,SMD-S 1 SA
3710-002130 SOCKET-BOARD TO CABLE;30P,1R,0.5mm,SMD-S 1 SA
3710-002136 SOCKET-BOARD TO BOARD;50P,2R,0.8mm,ANGLE 1 SA
.
This Document can not be used without Samsung's authorization.
6. MECHANICAL EXPLODED VIEW AND PARTLIST
NP-R50K001/SER
No Part Code Part Name & Specification Q'ty SA/SNA Note
3710-002160 SOCKET-BOARD TO CABLE;8P,1R,1mm,SMD-S,SN 1 SA
3710-002253 SOCKET-BOARD TO BOARD;40P,2R,0.635mm,SMD 1 SA
3711-000386 HEADER-BOARD TO CABLE;BOX,10P,1R,1.25MM, 1 SA
3711-000541 HEADER-BOARD TO CABLE;BOX,2P,1R,1.25MM,S 2 SA
3711-002613 HEADER-BOARD TO CABLE;3WALL,3P,1R,1.25mm 1 SA
3711-005163 HEADER-BOARD TO CABLE;1WALL,5P,1R,2.5mm, 1 SA
3711-005739 HEADER-BOARD TO BOARD;BOX,68P,2R,0.635mm 1 SA
3722-001175 JACK-DC POWER;3P,5.9PI,SN,BLK 1 SA
3722-001641 JACK-USB;4P/2C,AUF,BLK,ANGLE-OFFSET,A TY 2 SA
3722-001649 JACK-IEEE1394;6P/1C,AU,BLK,ANGLE,IEEE139 1 SA
3722-001775 JACK-PHONE;6P,3.6P,AG,PINK,- 1 SA
3722-002071 JACK-PHONE;10P,AU,LIME,ANLGE 1 SA
3722-002226 JACK-VHS;7P,-,NICKEL,BLK,- 1 SA
3722-002291 JACK-MODULAR;8P+2P,STANDARD,BRASS,DIP,-, 1 SA
4301-001012 BATTERY-LI;3V,165mAH,-,OD20xH2.5,- 1 SA
6001-001406 SCREW-MACHINE;CH,+,M2.0,L6.0,NI PLT,SWRC 2 SA
6001-001420 SCREW-MACHINE;CH,+,UNC4-40,L4,NI PLT,SWR 2 SA
6001-001570 SCREW-MACHINE;CH,+,-,M2,L4,ZPC(BLK),SWRC 1 SA
6001-001625 SCREW-MACHINE;BH,+,-,M2.6,L8,ZPC(BLK),SW 3 SA
6001-001626 SCREW-MACHINE;CH,+,-,M2,L4,ZPC(YEL),SWRC 4 SA
BA39-00133A WIRE HARNESS-RTC BATT;MAVERICK,2WIRE,RTC 1 SA
BA39-00491A WIRE HARNESS-MDC;FIRENZE,WIRE,UL1571,2P, 1 SA
BA39-00494A CBF COAXIAL CABLE-LCD154;FIRENZE,BD to C 1 SA
BA44-00162A ADAPTOR;AD-6019(API1AD02),CORONA,-,90TO2 1 SA
BA44-00182A INVERTER;CYGNUS,KUBNKM092A,DC,8.5to20V,1 1 SA
BA44-00183A INVERTER;CYGNUS,SIC350E,DC,8.5to20V,1.0m 1 SA
BA59-01272A MODEM;DANIO,56K,2,NONE,-,24.576,MDC 1 SA
BA59-01318A MODULE-WLAN;Aquila,WM3B2200BGRW,WMAC+RF, 1 SA
BA61-00608B HOLDER-M_STICK;CICHLID2,PC/ABS(NH1026M), 1 SA
BA61-00784A SUPPORT-VIDEO_BD;ARGO,CU ALLOY,T3.5,W3.5 4 SA
BA61-00988A DUMMY CARD-PCMCIA;SORRENTO,PC/ABS,T1.5,W 1 SA
BA62-00367A INSULATION-RHE;FIRENZE,PET,T0.2,W57.0,L2 1 SA
BA62-00368B HEAT SINK;FIRENZE,AL,T15,W57,L150mm,Silv 1 SA
BA63-00472A PROTECTOR-FILM_LCD154;ARGO,PET,T0.1mm,TR 1 SA
BA67-00281A CAP-HINGE_L;FIRENZE,PC/ABS,T1.3,W35,L37m 1 SA
.
This Document can not be used without Samsung's authorization.
6. MECHANICAL EXPLODED VIEW AND PARTLIST
NP-R50K001/SER
No Part Code Part Name & Specification Q'ty SA/SNA Note
BA67-00282A CAP-HINGE_R;FIRENZE,PC/ABS,T1.3,W35,L37m 1 SA
BA39-00061A CBF HARNESS;ASTRO,-,-,4P,2100mm,SIL,-,-, 1 SA
3903-000055 CBF-POWER CORD;DT,EU,CP2/NO,E(IEC320 C7) 1 SA
0904-002012 IC-MEMORY CONT.;910GML,64Bit,uFCBGA,1257 1 SA
1205-002552 IC-BUS SWITCH;SN74CB3Q3306APWR,TSSOP,8P, 1 SA
BA68-00793D LABEL-LOGO_WINXP;OSCAR,-,PETRON,T0.075,W 1 SA
BA68-02502A LABEL-INTEL_CELERON-M;CETUS,ALL,-,-,W19. 1 SA
BA68-20039A LABEL-PPID_E;BLADE,-,PET,-,W50.8,L12.7mm 1.2 SA
BA68-20323A LABEL CAUTION;NOTE PC,-,PET,T0.07,W30.0, 1 SA
BA70-00388A BRACKET-VGA;FIRENZE,STS304,T0.15mm,-,-,N 1 SA
BA75-01623A UNIT-HOUSING_LCD-BACK;FIRENZE,DOMESTIC,P 1 SA
BA75-01624A UNIT-HOUSING_LCD154-FRT;FIRENZE,DOM,PC/A 1 SA
BA75-01632A UNIT-BRACKET_CPU;FIRENZE,-,STS304+PET,W4 1 SA
BA75-01663A UNIT-SHIELD_MINIPCI;FIRENZE,-,STS304,W31 1 SA
BA81-01903A FAN;FIRENZE,MCF-907AM05,PBA,2800rpm,W60* 1 SA
BA59-01617A MODULE-WLAN;Cygnus,2200LF BG(RW2),-,2.4, 1 SA
BA41-00472A FPC-HDD;CYGNUS-W,1.0,POLYAMIDE,50P,T0.3m 1 SA
6001-001433 SCREW-MACHINE;CH,+,M2,L3,ZPC(WHT),SWRCH1 1 SA
BA96-03004A ASSY DVD-COMBO;FIRENZE,24X,DW-224E-C 1 SA
BA96-02914A ASSY DVD-COMBO;FIRENZE,24X_TS,TS-L462C 1 SA
◦ Jabse Service Manual Search 2026 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
