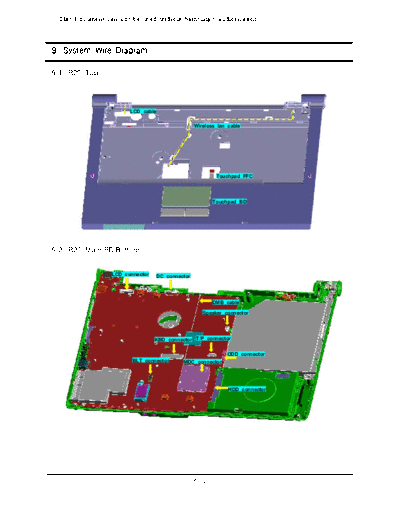

Image preview - the first page of the document
>> Download 08_Wiring_Diagram documenatation <<
Text preview - extract from the document
- This Document can not be used without Samsung's authorization -
9. System Wire Diagram
9-1. R20 Top
LCD cable
Wireless lan cable
Touchpad FFC
Touchpad BD
9-2. R20 Main-BD/Bottom
LCD connector DC connector
DMB cable
Speaker connector
KBD connector T/P connector
ODD connector
BLT connector MDC connector
HDD connector
9- 1
- This Document can not be used without Samsung's authorization -
9. System Wire Diagram
9-3. R20 Bottom
DMB cable
Speaker connector
MDC cable
9-4. R20 LCD
WLAN cable
9- 2
