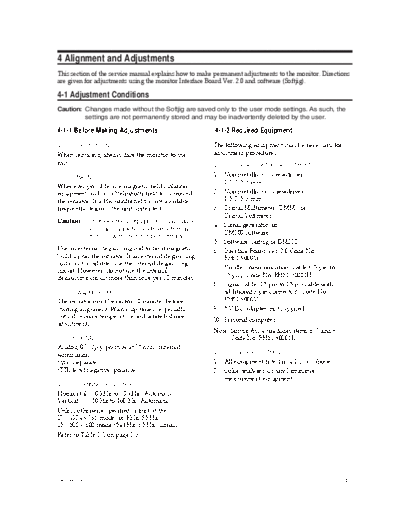

Image preview - the first page of the document



>> Download DP17LS7U-EDC - 750S documenatation <<

Text preview - extract from the document

4 Alignment and Adjustments
This section of the service manual explains how to make permanent adjustments to the monitor. Directions
are given for adjustments using the monitor Interface Board Ver. 2.0 and software (Softjig).

4-1 Adjustment Conditions
Caution: Changes made without the Softjig are saved only to the user mode settings. As such, the
         settings are not permanently stored and may be inadvertently deleted by the user.

4-1-1 Before Making Adjustments                        .4-1-2 Required Equipment

4-1-1 (a) ORIENTATION                                  The following equipment may be necessary for
When servicing, always face the monitor to the         adjustment procedures:
east.                                                  4-1-2 (a) DISPLAY CONTROL ADJUSTMENT
4-1-1 (b) MAGNETIC FIELDS                              1. Non-metallic (
