5-1
M0013
T0074 T0268
M0020
Exploded View & Part List
M0412
T0044
M0149 T0915 T0079

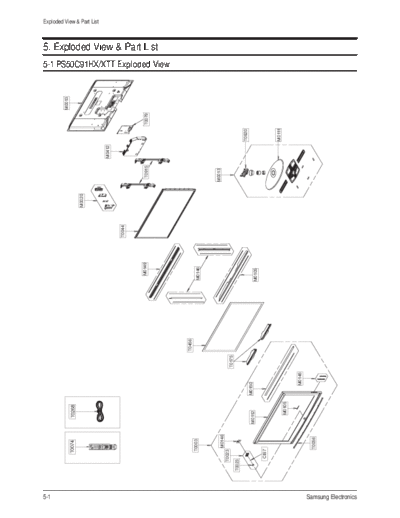

5. Exploded View & Part List
5-1 PS50C91HX/XTT Exploded View
T0456
T0003 M0146
M0013
M0146
T0023
T0175
T0023
T0920
M0112 M0150
M0105
CIS7
M0111
M0105
M0145
T0056
Samsung Electronics
Exploded View & Part List
Loc. No. Code No. Description Specification Q'ty SA/SNA Remark
CIS7 AA61-60003B SPRING ETC-CS -,SUS304,-,-,OD11.2,N7,OD1 1 S.N.A
M0013 BN96-04714B ASSY STAND P-BASE C9/Q9,ABS HB SF-0507,B 1 S.A
M0013 BN96-04711K ASSY COVER P-REAR 50Q9/C9,PCM T0.5,BLM-S 1 S.A
M0020 BN96-04900H ASSY BOARD P-SIDE A/V Lily 50" CHINA,SJ0 1 S.N.A
M0105 BN67-00190A LENS-LED 42Q9,PC,light blue,Material of 1 S.N.A
M0111 BN63-03049B COVER-STAND 42Q9,ABS SF-0507,BK23 1 S.N.A
M0112 BN63-03067G COVER-FRONT 50C9,ABS,HB,BK23,STEAM MOLD 1 S.N.A
M0145 BN96-04853B ASSY BOARD P-FUNCTION Lily/Calla,CT5000- 1 S.A
M0146 BN96-04690A ASSY BRACKET P-FILTER SIDE 50Q9,AL6063,T 2 S.N.A
M0146 BN96-04861D ASSY BOARD P-POWER & IR Lily/Calla,CT500 1 S.A
M0149 BN96-04688A ASSY BRACKET P-FILTER TOP 50Q9,AL6063,T1 1 S.N.A
M0150 BN96-04692A ASSY BRACKET P-SUPPORT FILTER 50Q9,AL606 1 S.N.A
M0150 BN96-04689A ASSY BRACKET P-FILTER BOTTOM 50Q9,AL6063 1 S.N.A
M0412 BN96-04903C ASSY BRACKET P-PCB 42Q9,SECC T0.8 1 S.N.A
T0003 BN96-04713G ASSY COVER P-FRONT 50C9,ABS HB,BK23,STEA 1 S.A
T0023 BN96-04707A ASSY COVER P-KNOB POWER C9/Q9,ABS HB 1 S.N.A
T0023 BN64-00567A KNOB POWER 42Q9,PC,VIOLET 1 S.N.A
T0044 BN96-04775A ASSY PDP MODULE P 50HD W2A,M1,W2A,1365*7 1 S.A
T0056 BN63-03081A COVER-DECORATION 50C9,ABS,HB BLK 1 S.N.A
T0074 BN59-00613A REMOCON Jasmine/Lily,TM86,samsung 24p+ee 1 S.A
T0079 BN94-01357D ASSY PCB MISC-MAIN CHINA,LILY 50INCH 1 S.A
T0175 BN96-04704A ASSY SPEAKER P 8ohm,C9,10W,4P connector, 1 S.A
T0268 3903-000172 CBF-POWER CORD DT,CN,IP3/YES,U(IEC C13-R 1 S.A
T0456 BN67-00197A GLASS-FILTER EMI 50 W2, C9,Sputter, wit 1 S.A
T0915 BN61-02895B HOLDER-MODULE 50Q9,PCABS 2 S.N.A
T0920 BN61-02990A GUIDE-STAND 42Q9,PC GF20% 1 S.N.A
Samsung Electronics 5-2
Exploded View & Part List
5-2 PS50C91HX/XTT Service Item
This is the list which is available to repair the real material at the time of service.
Loc. No. Code No. Description Specification Q'ty Remark
M0013 BN96-04711K ASSY COVER P-REAR 50Q9/C9,PCM T0.5,BLM-S 1
M0013 BN96-04714B ASSY STAND P-BASE C9/Q9,ABS HB SF-0507,B 1
M2893 BN39-00817A LEAD CONNECTOR LILLY 50",UL20276#30,UL/C 1
M2893 BN39-00881A LEAD CONNECTOR LILLY 42"/50",UL1007#26,U 1
T0003 BN96-04713G ASSY COVER P-FRONT 50C9,ABS HB,BK23,STEA 1
T0044 BN96-04775A ASSY PDP MODULE P 50HD W2A,M1,W2A,1365*7 1
T0074 BN59-00613A REMOCON Jasmine/Lily,TM86,samsung 24p+ee 1
T0079 BN94-01357D ASSY PCB MISC-MAIN CHINA,LILY 50INCH 1
T0175 BN96-04704A ASSY SPEAKER P 8ohm,C9,10W,4P connector, 1
T0764 BN44-00162A SMPS-PDP TV HPS5053,SEM,AC/DC,460W,AC100 1
T1910 BN96-04573A ASSY PDP MODULE P-X-MAIN 50HD W2,PL50HW0 1
T1911 BN96-04574A ASSY PDP MODULE P-Y-MAIN 50HD W2,PL50HW0 1
T1914 BN96-04578A ASSY PDP MODULE P-ADDRESS E_BU 50HD W2,P 1
T1915 BN96-04579A ASSY PDP MODULE P-ADDRESS F_BU 50HD W2,P 1
T1917 BN96-04881A ASSY PDP MODULE P-LOGIC MAIN PL50HW021A, 1
T1960 BN96-04575A ASSY PDP MODULE P-Y-MAIN UPPER 50HD W2,P 1
T1961 BN96-04576A ASSY PDP MODULE P-Y-MAIN LOWWE 50HD W2,P 1
5-3 Samsung Electronics
