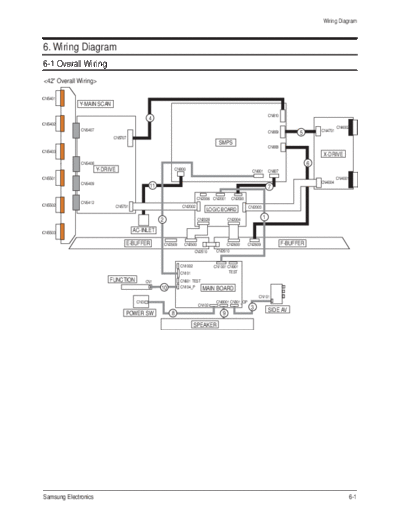

Image preview - the first page of the document
>> Download wiring-6 documenatation <<
Text preview - extract from the document
Wiring Diagram
6. Wiring Diagram
6-1 Overall Wiring
<42" Overall Wiring>
CN5401
Y-MAIN SCAN
CN810
4
CN5402
CN4002
CN5407 CN4701
CN809 5
CN5707
SMPS
CN808
CN5403
X-DRIVE
CN5408 6
Y-DRIVE CN800 CN801 CN807
CN5501 CN4001
CN5409 CN4004
11 7
CN2006 CN2001 CN2000
CN5412
CN5502 CN5701 CN2002 CN2003
?
LOGIC BOARD
2 CN2028 CN2004 1
CN5503 AC-INLET
E-BUFFER CN2509 CN2500 CN2600 CN2609 F-BUFFER
CN2510 CN2610
CN1002 CN1001 CN901
CN101 TEST
FUNCTION CN1 CN601 TEST
10 CN104_P MAIN BOARD
CN101
CN3 CN8001 CN301_OP
CN102
3 SIDE AV
POWER SW 8 9
SPEAKER
Samsung Electronics 6-1
Wiring Diagram
<50" Overall Wiring>
CN5401
Y-MAIN SCAN(HIGH)
4
CN810
CN5402
CN5707 CN4002
CN809 5 CN4701
CN5407
SMPS
CN808
CN5403 CN4001
X-DRIVE
CN5412
Y-DRIVE CN800
CN801 CN807
CN5501 CN4000
CN4004
CN5507 7
11 2 CN2001 CN2000
CN2006
CN2003
CN5502 CN5701 CN2002
LOGIC BOARD
CN2005 6
1
Y-MAIN SCAN(LOW) CN2004
CN5503 AC-INLET
CN2509 E-BUFFER CN2500 CN2600 F-BUFFER CN2609
CN2510 CN2610
CN1002 CN1001 CN901
CN101 TEST
FUNCTION CN1 CN601 TEST
10 CN104_P MAIN BOARD
CN101
CN3 CN8001 CN301_OP
CN102
3 SIDE AV
POWER SW 8 9
SPEAKER
6-2 Samsung Electronics
Wiring Diagram
The code number of cable(Lead-connector) can be changed, see "5. Exploded View & Part List."
Use LVDS 31P-30P POWER 24P SIDE
42" - BN39-00859A
Code BN39-00881A -
50" - BN39-00817A
Use Y Drive X Drive Address
Code - - -
Use Logic Front SPEAKER
Code - - -
Use FUNCTION AC_INPUT
42" - 2901-001378
Code -
50" - 2901-001340
Samsung Electronics 6-3
Wiring Diagram
CN1401(MAIN B'D) CN2010(LOGIC B'D) CN101(MAIN B'D) CN801(SMPS)
Pin No. Signal Pin No. Signal Pin No. Signal Pin No. Signal
1 RxIN0- 16 NC 1 PS_ON 13 5V
2 RxIN0+ 17 GND 2 N/C (Auto_V) 14 5V
3 RxIN1- 18 WP 3 STBY 15 5V
4 RxIN1+ 19 SCL 4 GND_STBY 16 5V
5 RxIN2- 20 SDA 5 GND_18V AMP 17 GND_12V
6 RxIN2+ 21 LVDS Opt 6 GND_18V AMP 18 GND_12V
7 RxINCLK- 22 DCC Opt 7 18V AMP 19 12V
8 RxINCLK+ 23 GND 8 18V AMP 20 GND_12V
9 RxIN3- 24 GND 9 GND_5V 21 12V
10 RxIN3+ 25 GND 10 GND_5V 22 12V
11 NC 26 Vdd 11 GND_5V 23 N.C(FAN_ON)
12 NC 27 Vdd 12 GND_5V 24 N.C(FAN_DET)
13 NC 28 Vdd
14 NC 29 Vdd
15 NC 30 Vdd
CN1804(MAIN B'D) CN105(SIDE AV)
Pin No. Signal Pin No. Signal Pin No. Signal Pin No. Signal
1 GND 12 TXC- 23 NC 34 VIDEO_SR_IN
2 TX2+ 13 GND 24 NC 35 VIDEO_SL_IN
3 TX2- 14 MICOM_CEC 25 GND 36 HP_IDENT
4 GND 15 GND 26 SVHS_IDENT 37 HP_OUT_R
5 TX1+ 16 TSCL 27 SVHS_Y 38 HP_OUT_L
6 TX1- 17 TSDA 28 GND 39 USB_VCC
7 GND 18 LSCL 29 SVHS_C 40 B1.8V
8 TX0+ 19 HDMI3_5V 30 GND 41 B3.3V
9 TX0- 20 HPD_SIL9185 31 VIDEO_IDENT
10 GND 21 DDC_WP 32 VIDEO_CVBS
11 TXC+ 22 GND 33 GND
6-4 Samsung Electronics
Wiring Diagram
CN805(SMPS) CN804(SMPS) CN806/CN807(SMPS) CN803(SMPS) CN1701(MAIN B'D)
CN5015(Y B'D) CN4000(X B'D) CN2501(E-BUFFER) CN2036(LOGIC B'D) POWER&IR
Pin No. Signal Pin No. Signal Pin No. Signal Pin No. Signal Pin No. Signal
1 Vg 1 Vg 1 Va 1 STBY 1 IR
2 GND 2 GND 2 GND 2 VS_ON 2 GND
3 GND 3 GND 3 5.3V 3 N/C 3 A5V_1
4 GND 4 Vs 4 PS_ON 4 LED_STB
5 Vs 5 Vs 5 RTN 5 BUZZER
6 Vs 6 5.3V 6 KEY_INPUT1
7 RTN 7 KEY_INPUT2
8 RTN 8 GND
9 5.3V 9 B5V
10 5.3V 10 LED_CTRL
CN1201(MAIN B'D) CN1702(MAIN B'D) CN800(SMPS)
SPEAKER FUNCTION AC INLET
Pin No. Signal Pin No. Signal Pin No. Signal
1 R+_OUT 1 KEY_INPUT1 1 AC Neutral
2 R-_OUT 2 KEY_INPUT2 2 N/C
3 L+_OUT 3 GND 3 AC Live
4 L-_OUT
Samsung Electronics 6-5
Wiring Diagram
6-1-1 Connector role
42" Loc. No. 50" Loc. No. Description
CN5401 CN5401 Module and Y-Main Scan Connect
CN5402 CN5402 Module and Y-Main Scan Connect
CN5403 CN5403 Module and Y-Main Scan Connect
- CN5412 Y-Main Scan(High) and Y-Main Scan(Low) Connect
CN5501 CN5501 Module and Y-Main Scan Connect
CN5502 CN5502 Module and Y-Main Scan Connect
CN5503 CN5503 Module and Y-Main Scan Connect
CN5407 CN5407 Y-Drive and Y-Main Scan Connect
CN5408 CN5408 Y-Drive and Y-Main Scan Connect
CN5409 CN5409 Y-Drive and Y-Main Scan Connect
CN5412 CN5412 Y-Drive and Y-Main Scan Connect
CN5707 CN5707 Y-Drive and SMPS Connect
CN5701 CN5701 Y-Drive and Logic Board Connect
CN810 CN810 Y-Drive and SMPS Connect
CN809 CN809 X-Drive and SMPS Connect
CN808 CN808 SMPS and F-Buffer Connect
CN807 CN807 SMPS and Logic Board Connect
CN801 CN801 SMPS and Main Board Connect
CN800 CN800 SMPS and AC-Inlet Connect
CN4701 CN4701 SMPS and X-Drive Connect
CN4004 CN4004 Logic Board and X-Drive Connect
CN4002 CN4002 Module and X-Drive Connect
CN4001 CN4001 Module and X-Drive Connect
- CN4000 Module and X-Drive Connect
CN2000 CN2000 SMPS and Logic Board Connect
CN2001 CN2001 Main Board and Logic Board Connect
CN2002 CN2002 Y-Drive and Logic Board Connect
CN2004 CN2004 Logic Board and F-Buffer Connect
CN2028 CN2028 Logic Board and E-Buffer Connect
CN2500 CN2500 Logic Board and E-Buffer Connect
CN2510 CN2510 E-Buffer and F-Buffer Connect
CN2610 CN2610 E-Buffer and F-Buffer Connect
CN2600 CN2600 Logic Board and F-Buffer Connect
CN2609 CN2609 SMPS and F-Buffer Connect
CN1101 CN1101 SMPS and Main Board Connect
CN2202 CN2202 Main Board and Logic Board Connect
CN1605 CN1605 Function Assy and Main Board Connect
CN1404 CN1404 Side AV Assy and Main Board Connect
6-6 Samsung Electronics
Wiring Diagram
42" Loc. No. 50" Loc. No. Description
CN1606 CN1606 Power SW Assy and Main Board Connect
CN1203 CN1203 Speaker and Main Board Connect
CN101 CN101 Side AV Assy and Main Board Connect
CN1 CN1 Function Assy and Main Board Connect
CN3 CN3 Power SW Assy and Main Board Connect
Samsung Electronics 6-7
