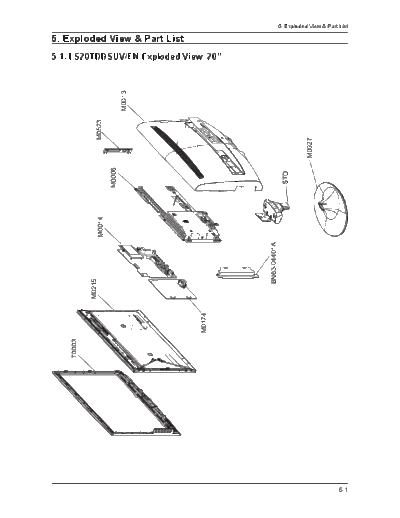

Image preview - the first page of the document
>> Download Exploded View & Part List documenatation <<
Text preview - extract from the document
5. Exploded View & Part List
5. Exploded View & Part List
5-1. LS20TDDSUV/EN Exploded View -20"
M0013
M0523
M0027
M0006
STD
M0014
BN63-04401A
M0215
M0174
T0003
5-1
5. Exploded View & Part List
5-1-1. LS20TDDSUV/EN Parts List (T200HD)
Location No. Code No. Description & Specification Q'ty SA/SNA Remark
T0003 BN96-07446A ASSY COVER P-FRONT;LS20TD,PMMA+ABS,HB,RO 1 S.A
M0215 BN07-00374A LCD-PANEL;CLAA201WA04 1 S.A
M0014 BN94-01833Z ASSY PCB MAIN-PTZ,W/W;LS20TDD* 1 S.A
M0174 BN44-00177D IP BOARD;PWI2204ST(A),T 20" MFM,1.4 ~2.8 1 S.A
M0006 BN96-08149C ASSY SHIELD P-COVER;LS20TD(MFM),EUROPE,S 1 S.N.A
BN63-04401A SHIELD-LAMP;T(22W MFM),SPTE,T 0.3 1 S.N.A
M0523 BN96-07409A ASSY COVER P-JACK;LS22TD,PC+ABS,5V,BK23, 1 S.A
M0013 BN96-07447E ASSY COVER P-REAR;LS20TD,Europe,PMMA ABS 1 S.A
STD BN96-07347D ASSY STAND P-BODY;LS22TD,PMMA ABS HB, SM 1 S.A
M0027 BN96-07345B ASSY STAND P-BASE;LS22TW,ABS HB PMMA,RD0 1 S.A
5-2
5. Exploded View & Part List
5-2. LS20TDDSUV/EN Parts List
Service Bom (SA: SERVICE AVAILABLE, SNA: SERVICE NOT AVAILABLE)
Level Location No. Code No. Description & Specification Q'ty SA/SNA Remark
LS20TDDSUV/
T200HD,WST1/S20A4-LTD,20,LCD-MO,NETHERLA
EN
0.1 M0001 BN90-01634A ASSY COVER FRONT;LS20TD_MFM,TOC,ROSE BLA 1 S.N.A
..2 T0175 BN96-06823C ASSY SPEAKER P;16ohm,T-project,MFM,3W,11 1 S.A
..2 T0003 BN96-07446A ASSY COVER P-FRONT;LS20TD,PMMA+ABS,HB,RO 1 S.A
...3 M0081 6003-000282 SCREW-TAPTITE;BH,+,-,B,M3,L8,ZPC(BLK),SW 2 S.A
...3 M0960 BN61-03932A HOLDER-BOSS;T200,PMMA+ABS HB,WH15 1 S.N.A
...3 CCM1 BN63-02183D COVER-SHEET;Rhcm,PE Vinyl,T0.05,680mm,20 0.5 S.N.A
...3 BN64-00843A KNOB-GUIDE;T220HD,PMMA ABS,HB,BK23,H/GLO 1 S.N.A
...3 T0022 BN64-00845A KNOB CONTROL;T220HD,PMMA ABS,HB,BK23,H/G 1 S.N.A
...3 M0112 BN63-04426F COVER-FRONT;T200HD(Europe),PMMA+ABS,HB,R 1 S.N.A
...3 M0102 BN96-07569A ASSY BLU P;T220D,MB-M0716,WHITE,BLU 1 S.A
....4 BN94-01893J ASSY PCB MAIN-BN96-07569A;T,ASSY BLU P 1 S.N.A
.....5 BN81-01709A A/S-MOLD FRAME;SR-3108F,46.6X10.524X,BN9 1 S.N.A
.....5 BN81-01710A A/S-GUIDE PANEL-L;PC,40.6X7.08X3.4,BN96- 1 S.N.A
.....5 BN81-01711A A/S-DIFFUSER SHEET;G25,42.6X10.31,BN96-0 1 S.N.A
.....5 BN81-01715A A/S-HARNESS;PST0716-01,BN96-07569A 1 S.N.A
.....5 BN81-01716A A/S-SHADING TAPE;#1350,98.9X14.82,-,-,-, 1 S.N.A
.....5 T0174 BN97-02297N ASSY SMD;T,W/W 1 S.N.A
......6 BN81-01712A A/S-PCB;FR-4,0.6T,8.68X7.05,BN96-07569A 1 S.N.A
......6 BN81-01713A A/S-LED;MWHT213Z,BN96-07569A 1 S.N.A
......6 BN81-01714A A/S-RESISTOR;RC1206JR-0733R,BN96-07569A 1 S.N.A
...3 M0145 BN96-07556D ASSY BOARD P-FUNCTION;T220HD,CT5000-5800 1 S.A
..2 M0081 6006-001096 SCREW-TAPTITE;BH,+,WP,B,M4.0,L12,ZPC(BLK 4 S.N.A
0.1 M0002 BN90-01635A ASSY COVER REAR;LS20TD_MFM,Europe 1 S.N.A
..2 M0013 BN96-07447E ASSY COVER P-REAR;LS20TD,Europe,PMMA ABS 1 S.A
...3 M0081 6003-000282 SCREW-TAPTITE;BH,+,-,B,M3,L8,ZPC(BLK),SW 2 S.A
...3 BN61-03947A GUIDE-CONTROL;T200D / T220D / T240D / T2 2 S.N.A
...3 CCM1 BN63-02183D COVER-SHEET;Rhcm,PE Vinyl,T0.05,680mm,20 0.5 S.N.A
...3 M0006 BN63-04435A COVER-REAR;T200D,PMMA+ABS,HB,BK23,H/GLOS 1 S.N.A
...3 T0071 BN64-00860A INLAY-TERMINAL;T220D,PS SHEET,T0.3,-,-,- 1 S.N.A
...3 T0530 BN96-08053A ASSY COVER P-DOOR CONTROL;LS20TD,PMMA AB 1 S.A
....4 CCM1 BN63-02183B COVER-SHEET;Rhcm,PE Vinyl,T0.05,150mm,20 0.07 S.N.A
....4 T0151 BN64-00861B DOOR-CONTROL;LS20TD(MFM),PMMA+ABS HB,BK2 1 S.N.A
...3 M0126 BN73-00096A RUBBER-PANEL;BI19BS,RUBBER,T1.0,50~60,NT 2 S.N.A
..2 M0081 6003-001086 SCREW-TAPTITE;BH,+,-,B,M3,L12,ZPC(BLK),S 4 S.A
0.1 M0135 BN91-01517B ASSY LCD-PTZ;LS20MEW* 1 S.N.A
..2 M0215 BN07-00374A LCD-PANEL;CLAA201WA04 1 S.A
0.1 M0017 BN91-02236C ASSY CHASSIS;LS20TDDSUV/EN 1 S.N.A
..2 M0081 6003-001439 SCREW-TAPTITE;BH,+,-,S,M4,L8,ZPC(WHT),SW 1 S.N.A
..2 M0174 BN44-00177D IP BOARD;PWI2204ST(A),T 20" MFM,1.4 ~2.8 1 S.A
..2 BN73-00024C SILICON/RUBBER-BERGQUIST;VENUS 32,40",SI 1 S.N.A
..2 CCMM1 BN73-00143A SILICON/RUBBER;CURIE,SILICON+ALUMINA,W13 1 S.N.A
5-3
5. Exploded View & Part List
Level Location No. Code No. Description & Specification Q'ty SA/SNA Remark
..2 CCMM1 BN73-00143A SILICON/RUBBER;CURIE,SILICON+ALUMINA,W13 1 S.N.A
..2 M0014 BN94-01833Z ASSY PCB MAIN-PTZ,W/W;LS20TDD* 1 S.A
...3 T0245 0202-001608 SOLDER-WIRE FLUX;LFC7-107,D0.8,99.3Sn/0. 0.25 S.N.A
...3 CN3000 3701-001385 CONNECTOR-DSUB;15P,3R,FEMALE,STRAIGHT,AU 1 S.A
...3 CN9001 3701-001386 CONNECTOR-DVI;24P,3R,FEMALE,AU 1 S.A
...3 CN3004 3701-001388 CONNECTOR-HDMI;20P,Phosphor Bronze,ANGLE 1 S.A
...3 CN906 3707-001081 CONNECTOR-OPTICAL;STRAIGHT,SPDIF 1 S.A
...3 JA9001 3709-001346 CONNECTOR-CARD SLOT;68P,0.27mm,ANGLE,AU1 1 S.A
...3 CN330 3711-000058 HEADER-BOARD TO CABLE;BOX,4P,1R,2.5MM,AN 1 S.A
...3 CN330 3711-004379 HEADER-BOARD TO CABLE;BOX,4P,1R,2mm,STRA 1 S.A
...3 CN330 3711-004712 HEADER-BOARD TO CABLE;BOX,9P,1R,2mm,STRA 1 S.A
...3 JA330 3722-000143 JACK-PHONE;1P(VER),AG,BLK,ANGLE 1 S.A
...3 JA4001 3722-000498 JACK-SCART;21P,-,SN,BLK,NO 1 S.A
...3 JA330 3722-001061 JACK-PHONE;1P,3.6PI,AG,BLK,N 1 S.A
...3 JA333 3722-001903 JACK-PIN;2P,-,AU,WHT/RED,- 1 S.A
...3 JA333 3722-001938 JACK-PIN;3P,-,AU,GRN/BLU/RED,- 1 S.A
...3 JA330 3722-002176 JACK-PHONE;7P/4C,-,SN,L-BLU,- 1 S.A
...3 T0073 AA63-00929A GASKET-EMI;PS37S4A,Conductive Fabric,1.0 1 S.N.A
...3 CIS3 BN40-00096A TUNER;DNOS403MH261B(S),PAL Hyper,181CH, 1 S.A
...3 HDCP BN97-00688A ASSY HDCP;BN46-00018A,PS-42V6S,D73A,GENE 1 S.N.A
....4 BN46-00018A KEY CODE-CERTIFICATE;(HDCP KEY)PPM42M5S, 1 S.N.A
...3 T0174 BN97-02297S ASSY SMD;LS20TDD*,W/W 1 S.N.A
....4 SUB05 0202-001477 SOLDER-CREAM;LST309-M,-,D20~45um,96.5Sn/ 3.391 S.N.A
....4 D8002 0401-000132 DIODE-SWITCHING;BAV99,70V,50mA,SOT-23,TP 1 S.A
....4 D2006 0401-000133 DIODE-SWITCHING;RLS4148,75V,150mA,LL-34, 1 S.A
....4 D2007 0401-000133 DIODE-SWITCHING;RLS4148,75V,150mA,LL-34, 1 S.A
....4 D2008 0401-000133 DIODE-SWITCHING;RLS4148,75V,150mA,LL-34, 1 S.A
....4 D2009 0401-000133 DIODE-SWITCHING;RLS4148,75V,150mA,LL-34, 1 S.A
....4 D2022 0401-000133 DIODE-SWITCHING;RLS4148,75V,150mA,LL-34, 1 S.A
....4 D1003 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D3003 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D3004 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D3006 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D3007 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D3008 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D3009 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D3010 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D3011 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D3012 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D3013 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D3014 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D3015 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D3016 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D3202 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D3203 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D3204 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D3205 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D3206 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D3207 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D3208 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D3209 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
5-4
5. Exploded View & Part List
Level Location No. Code No. Description & Specification Q'ty SA/SNA Remark
....4 D3210 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D3211 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D4102 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D4109 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D4110 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D4111 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D9301 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D9302 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D9303 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D9304 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D9305 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D9306 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D9307 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D9308 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A
....4 D2010 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3 1 S.A
....4 D4112 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3 1 S.A
....4 D4113 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3 1 S.A
....4 D4114 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3 1 S.A
....4 D8001 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3 1 S.A
....4 D0254 0402-000553 DIODE-SCHOTTKY;SS24/B240,40V,2000mA,DO-2 1 S.A
....4 D2004_DE 0403-000002 DIODE-ZENER;VLZ5V6B,5.45/5.73V,500mW,SOD 1 S.A
....4 D2023 0403-000002 DIODE-ZENER;VLZ5V6B,5.45/5.73V,500mW,SOD 1 S.A
....4 D3005 0403-000002 DIODE-ZENER;VLZ5V6B,5.45/5.73V,500mW,SOD 1 S.A
....4 D3017 0403-000002 DIODE-ZENER;VLZ5V6B,5.45/5.73V,500mW,SOD 1 S.A
....4 D3018 0403-000002 DIODE-ZENER;VLZ5V6B,5.45/5.73V,500mW,SOD 1 S.A
....4 D3019 0403-000002 DIODE-ZENER;VLZ5V6B,5.45/5.73V,500mW,SOD 1 S.A
....4 D3020 0403-000002 DIODE-ZENER;VLZ5V6B,5.45/5.73V,500mW,SOD 1 S.A
....4 D3021 0403-000002 DIODE-ZENER;VLZ5V6B,5.45/5.73V,500mW,SOD 1 S.A
....4 D3214 0403-000002 DIODE-ZENER;VLZ5V6B,5.45/5.73V,500mW,SOD 1 S.A
....4 D5001 0403-000002 DIODE-ZENER;VLZ5V6B,5.45/5.73V,500mW,SOD 1 S.A
....4 D2003 0403-000258 DIODE-ZENER;BZX84C5V6,5.2-6V,225mW,SOT-2 1 S.A
....4 D3022 0403-000258 DIODE-ZENER;BZX84C5V6,5.2-6V,225mW,SOT-2 1 S.A
....4 D9300 0403-000579 DIODE-ZENER;BZX84C5V1,4.8-5.4V,200mW,SOT 1 S.A
....4 D9317 0403-000579 DIODE-ZENER;BZX84C5V1,4.8-5.4V,200mW,SOT 1 S.A
....4 D4005 0403-000607 DIODE-ZENER;VLZ16C,15.69/16.51V,500mW,SO 1 S.A
....4 D3002 0403-000771 DIODE-ZENER;VLZ6V2B,5.96-6.27V,500mW,SOD 1 S.A
....4 D3201 0403-000771 DIODE-ZENER;VLZ6V2B,5.96-6.27V,500mW,SOD 1 S.A
....4 D3001 0403-001052 DIODE-ZENER;RD8.2MB,7.7-8.7V,200mW,SOT-2 1 S.A
....4 D3200 0403-001052 DIODE-ZENER;RD8.2MB,7.7-8.7V,200mW,SOT-2 1 S.A
....4 D5201 0403-001052 DIODE-ZENER;RD8.2MB,7.7-8.7V,200mW,SOT-2 1 S.A
....4 D1002 0403-001425 DIODE-ZENER;BZX84C33,31-35V,350mW,SOT-23 1 S.A
....4 D9329 0403-001435 DIODE-ZENER;QZX363C5V6,5.32-5.88V,200MW, 1 S.A
....4 D9340 0403-001435 DIODE-ZENER;QZX363C5V6,5.32-5.88V,200MW, 1 S.A
....4 D2001 0406-001172 DIODE-TVS;CDS3C30GTH,48/-/50V,SMD 1 S.A
....4 D2002 0406-001172 DIODE-TVS;CDS3C30GTH,48/-/50V,SMD 1 S.A
....4 D3023 0406-001172 DIODE-TVS;CDS3C30GTH,48/-/50V,SMD 1 S.A
....4 D3024 0406-001172 DIODE-TVS;CDS3C30GTH,48/-/50V,SMD 1 S.A
....4 D3027 0406-001172 DIODE-TVS;CDS3C30GTH,48/-/50V,SMD 1 S.A
....4 D3028 0406-001172 DIODE-TVS;CDS3C30GTH,48/-/50V,SMD 1 S.A
....4 D4001 0406-001172 DIODE-TVS;CDS3C30GTH,48/-/50V,SMD 1 S.A
....4 D4002 0406-001172 DIODE-TVS;CDS3C30GTH,48/-/50V,SMD 1 S.A
5-5
5. Exploded View & Part List
Level Location No. Code No. Description & Specification Q'ty SA/SNA Remark
....4 D4003 0406-001172 DIODE-TVS;CDS3C30GTH,48/-/50V,SMD 1 S.A
....4 D4004 0406-001172 DIODE-TVS;CDS3C30GTH,48/-/50V,SMD 1 S.A
....4 D4009 0406-001172 DIODE-TVS;CDS3C30GTH,48/-/50V,SMD 1 S.A
....4 D4012 0406-001172 DIODE-TVS;CDS3C30GTH,48/-/50V,SMD 1 S.A
....4 D4013 0406-001172 DIODE-TVS;CDS3C30GTH,48/-/50V,SMD 1 S.A
....4 D4115 0406-001172 DIODE-TVS;CDS3C30GTH,48/-/50V,SMD 1 S.A
....4 D4117 0406-001172 DIODE-TVS;CDS3C30GTH,48/-/50V,SMD 1 S.A
....4 D3029 0407-000123 DIODE-ARRAY;DAN202K,80V,100mA,CA2-3,SOT- 1 S.A
....4 D3030 0407-000123 DIODE-ARRAY;DAN202K,80V,100mA,CA2-3,SOT- 1 S.A
....4 D3031 0407-000123 DIODE-ARRAY;DAN202K,80V,100mA,CA2-3,SOT- 1 S.A
....4 D9001 0407-000123 DIODE-ARRAY;DAN202K,80V,100mA,CA2-3,SOT- 1 S.A
....4 D9002 0407-000123 DIODE-ARRAY;DAN202K,80V,100mA,CA2-3,SOT- 1 S.A
....4 D9003 0407-000123 DIODE-ARRAY;DAN202K,80V,100mA,CA2-3,SOT- 1 S.A
....4 D9004 0407-000123 DIODE-ARRAY;DAN202K,80V,100mA,CA2-3,SOT- 1 S.A
....4 D9005 0407-000123 DIODE-ARRAY;DAN202K,80V,100mA,CA2-3,SOT- 1 S.A
....4 D9006 0407-000123 DIODE-ARRAY;DAN202K,80V,100mA,CA2-3,SOT- 1 S.A
....4 Q8003 0501-000002 TR-SMALL SIGNAL;KSA812,PNP,150MW,SOT-23, 1 S.A
....4 Q8004 0501-000002 TR-SMALL SIGNAL;KSA812,PNP,150MW,SOT-23, 1 S.A
....4 Q8006 0501-000002 TR-SMALL SIGNAL;KSA812,PNP,150MW,SOT-23, 1 S.A
....4 Q7003 0501-000434 TR-SMALL SIGNAL;KTC3875S-GR,NPN,150mW,SO 1 S.A
....4 Q7010 0501-000434 TR-SMALL SIGNAL;KTC3875S-GR,NPN,150mW,SO 1 S.A
....4 Q8001 0501-000434 TR-SMALL SIGNAL;KTC3875S-GR,NPN,150mW,SO 1 S.A
....4 Q8002 0501-000434 TR-SMALL SIGNAL;KTC3875S-GR,NPN,150mW,SO 1 S.A
....4 Q8005 0501-000434 TR-SMALL SIGNAL;KTC3875S-GR,NPN,150mW,SO 1 S.A
....4 Q1001 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A
....4 Q1005 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A
....4 Q2001 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A
....4 Q2002 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A
....4 Q2003 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A
....4 Q2004 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A
....4 Q2005 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A
....4 Q3002 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A
....4 Q3201 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A
....4 Q4004 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A
....4 Q5005 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A
....4 Q6001 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A
....4 Q5012 0501-000669 TR-SMALL SIGNAL;KTA1505Y,PNP,150mW,SOT-2 1 S.A
....4 Q1002 0501-002080 TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59 1 S.A
....4 Q1003 0501-002080 TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59 1 S.A
....4 Q1006 0501-002080 TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59 1 S.A
....4 Q5011 0501-002080 TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59 1 S.A
....4 Q5013 0501-002080 TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59 1 S.A
....4 Q9327 0501-002080 TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59 1 S.A
....4 Q409 0505-000110 FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0. 1 S.A
....4 Q409 0505-000110 FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0. 1 S.A
....4 Q409 0505-000110 FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0. 1 S.A
....4 Q409 0505-000110 FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0. 1 S.A
....4 Q409 0505-000110 FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0. 1 S.A
....4 Q409 0505-000110 FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0. 1 S.A
....4 Q409 0505-000110 FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0. 1 S.A
....4 Q409 0505-000110 FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0. 1 S.A
5-6
5. Exploded View & Part List
Level Location No. Code No. Description & Specification Q'ty SA/SNA Remark
....4 Q409 0505-001170 FET-SILICON;SI9933ADY-T1,P,-20V,3.4A,0.0 1 S.A
....4 Q409 0505-002169 FET-SILICON;Si4435BDY-T1-E3,P,-30V,-9.1A 1 S.N.A
....4 IC104 0801-002095 IC-CMOS LOGIC;74LCX245,TRANSCEIVER,TSSOP 1 S.A
....4 IC104 0801-002172 IC-CMOS LOGIC;74LCX16244,BUFFER/LINE DRI 1 S.A
....4 IC104 0801-002172 IC-CMOS LOGIC;74LCX16244,BUFFER/LINE DRI 1 S.A
....4 IC104 0801-002172 IC-CMOS LOGIC;74LCX16244,BUFFER/LINE DRI 1 S.A
....4 IC104 0801-002432 IC-CMOS LOGIC;74LVC244,8BIT BUFFER/DRIVE 1 S.N.A
....4 IC104 0801-002630 IC-CMOS LOGIC;74AHCT1G08,2-INPUT AND GAT 1 S.A
....4 IC104 0801-003239 IC-CMOS LOGIC;74LVC1G00,2-input NAND Gat 1 S.A
....4 IC104 0801-003239 IC-CMOS LOGIC;74LVC1G00,2-input NAND Gat 1 S.A
....4 IC105 0909-001032 IC-REAL TIME CLOCK;PCF8563,SOP,8P,4.9x3. 1 S.A
....4 IC106 1001-001082 IC-VIDEO SWITCH;BA7657F,-,SOP,24P,300MIL 1 S.A
....4 IC6002 1001-001109 IC-ANALOG SWITCH;FST3125M,BUS SWITCH & C 1 S.A
....4 IC106 1001-001516 IC-VIDEO SWITCH;PI3HDMI201ZFE,3HDMI201 : 1 S.A
....4 IC107 1002-001482 IC-D/A CONVERTER;WM8521H9GED/R,16bit,SOI 1 S.A
....4 IC110 1006-001076 IC-DRIVER/RECEIVER;MAX232ECWE+T,SOP,16P, 1 S.A
....4 IC112 1103-000129 IC-EEPROM;24C02,2Kbit,256x8Bit,SOP,8P,5x 1 S.A
....4 IC112 1103-000129 IC-EEPROM;24C02,2Kbit,256x8Bit,SOP,8P,5x 1 S.A
....4 IC112 1103-000129 IC-EEPROM;24C02,2Kbit,256x8Bit,SOP,8P,5x 1 S.A
....4 IC112 1103-000129 IC-EEPROM;24C02,2Kbit,256x8Bit,SOP,8P,5x 1 S.A
....4 IC112 1103-001385 IC-EEPROM;AT24C256,256Kbit,32Kx8,SOP,8P, 1 S.A
....4 IC112 1103-001410 IC-EEPROM;S-24CS08AFJ-TB-1GE,8Kbit,1Kx8, 1 S.A
....4 IC113 1105-001712 IC-DRAM;HYB25D256163CE,DDR,256Mbit,16Mx1 1 S.A
....4 IC6001 1105-001838 IC-DDR SDRAM;EM6A9160TS0A-5G,DDR SDRAM,1 1 S.A
....4 DU410 1201-000166 IC-OP AMP;LM358,SOP,ST,8P,150MIL,DUAL,10 1 S.A
....4 DU410 1201-000541 IC-OP AMP;062,SOP,8P,153MIL,DUAL,6V/mV,P 1 S.A
....4 T0124 1201-002430 IC-POWER AMP;NTP-3000,QFN,56P,8x8mm,DUAL 1 S.A
....4 T0085 1201-002487 IC-AUDIO AMP;MAX9728A,QFN,12P,3x3mm,DUAL 1 S.A
....4 T0087 1203-001815 IC-POSI.FIXED REG.;78M09,TO-252,3P,-,PLA 1 S.A
....4 T0087 1203-002842 IC-POSI.FIXED REG.;AP1117D-33A,TO-252,3P 1 S.A
....4 T0087 1203-002842 IC-POSI.FIXED REG.;AP1117D-33A,TO-252,3P 1 S.A
....4 T0087 1203-002974 IC-POSI.FIXED REG.;AP1117D-25A,TO-252,3P 1 S.A
....4 T0087 1203-002974 IC-POSI.FIXED REG.;AP1117D-25A,TO-252,3P 1 S.A
....4 T0170 1203-003059 IC-SWITCH VOL. REG.;MP1583,SOIC,8P,4.9x3 1 S.A
....4 T0087 1203-003060 IC-POSI.FIXED REG.;AP1084,TO-263,3P,9.97 1 S.A
....4 IC9003 1203-003394 IC-POWER SUPERVISOR;MIC2544-1YM,SOP,8P,4 1 S.A
....4 T0087 1203-003696 IC-POSI.FIXED REG.;NCP1117DT18T5G,DPAK,3 1 S.A
....4 IC5001 1203-004363 IC-VOL. DETECTOR;RT9818C-29PV,SOT-23,3P, 1 S.A
....4 IC2003 1203-004364 IC-VOL. DETECTOR;RT9818C-42PV,SOT-23,3P, 1 S.A
....4 IC7002 1203-004364 IC-VOL. DETECTOR;RT9818C-42PV,SOT-23,3P, 1 S.A
....4 T0087 1203-004816 IC-POSI.FIXED REG.;KIA78D015F,DPAK,3P,6. 1 S.A
....4 IC1005 1203-005188 IC-DC/DC CONVERTER;AOZ1021AIL,SOP,8P,4.9 1 S.A
....4 IC8006 1204-002798 IC-DECODER;UPD61211F1-104-FN7-A,BGA,208P 1 S.A
....4 IC109 1205-003308 IC-LCD CONTROLLER;SEMP690-LF,LQFP,256P,2 1 S.A
....4 D4006 1405-001185 VARISTOR;24Vdc,1.6x0.8x0.36mm,TP 1 S.A
....4 D4007 1405-001185 VARISTOR;24Vdc,1.6x0.8x0.36mm,TP 1 S.A
....4 D4008 1405-001185 VARISTOR;24Vdc,1.6x0.8x0.36mm,TP 1 S.A
....4 R9026 2007-000040 R-CHIP;150ohm,1%,1/10W,TP,1608 1 S.A
....4 R1067 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 S.A
....4 R1071 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 S.A
....4 R8041 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 S.A
5-7
5. Exploded View & Part List
Level Location No. Code No. Description & Specification Q'ty SA/SNA Remark
....4 R8043 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 S.A
....4 R8048 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 S.A
....4 R8053 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 S.A
....4 R8054 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 S.A
....4 R8058 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 S.A
....4 R8060 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 S.A
....4 R8069 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 S.A
....4 R8082 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 S.A
....4 R8083 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 S.A
....4 R8084 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 S.A
....4 R8085 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 S.A
....4 R8087 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 S.A
....4 R8090 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 S.A
....4 R6017 2007-000060 R-CHIP;100Kohm,1%,1/10W,TP,1608 1 S.A
....4 R1068 2007-000066 R-CHIP;20Kohm,1%,1/10W,TP,1608 1 S.A
....4 R1029 2007-000067 R-CHIP;15Kohm,1%,1/10W,TP,1608 1 S.A
....4 R1002 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A
....4 R1004 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A
....4 R1063 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A
....4 R1064 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A
....4 R1301 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A
....4 R2013 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A
....4 R3001 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A
....4 R3002 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A
....4 R3003 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A
....4 R3004 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A
....4 R3005 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A
....4 R3006 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A
....4 R3007 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A
....4 R3008 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A
....4 R3010 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A
....4 R3066 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A
....4 R3202 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A
....4 R3211 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A
....4 R3212 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A
....4 R3213 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A
....4 R3214 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A
....4 R3215 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A
....4 R3216 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A
....4 R3217 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A
....4 R3218 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A
....4 R3219 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A
....4 R3259 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A
....4 R3260 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A
....4 R3261 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A
....4 R3264 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A
....4 R3268 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A
....4 R4008 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A
....4 R4058 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A
....4 R4101 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A
....4 R5028 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A
5-8
5. Exploded View & Part List
Level Location No. Code No. Description & Specification Q'ty SA/SNA Remark
....4 R5031 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A
....4 R5036 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A
....4 R5037 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A
....4 R5044 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A
....4 R5045 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A
....4 R5047 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A
....4 R5052 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A
....4 R5057 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A
....4 R5062 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A
....4 R5065 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A
....4 R5209 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A
....4 R5210 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A
....4 R5807 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A
....4 R5999 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A
....4 R6005 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A
....4 R6008 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A
....4 R6014 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A
....4 R6020 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A
....4 R6044 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A
....4 R6045 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A
....4 R6046 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A
....4 R6047 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A
....4 R6094 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A
....4 R6100 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A
....4 R7007 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A
....4 R7015 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A
....4 R7023 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A
....4 R9036 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A
....4 R9348_F3V 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A
....4 R9356 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A
....4 R9357 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A
....4 R3014 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A
....4 R3015 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A
....4 R3027 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A
....4 R3103 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A
....4 R3208 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A
....4 R3209 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A
....4 R5019 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A
....4 R5020 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A
....4 R5021 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A
....4 R5024 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A
....4 R5027 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A
....4 R5029 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A
....4 R5083 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A
....4 R5084 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A
....4 R5203 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A
....4 R5204 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A
....4 R5205 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A
....4 R9318 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A
....4 R9319 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A
....4 R9320 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A
5-9
5. Exploded View & Part List
Level Location No. Code No. Description & Specification Q'ty SA/SNA Remark
....4 R9321 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A
....4 R9322 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A
....4 R9323 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A
....4 R9324 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A
....4 R9325 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A
....4 R2075 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 S.A
....4 R2076 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 S.A
....4 R3016 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 S.A
....4 R3017 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 S.A
....4 R3025 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 S.A
....4 R3026 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 S.A
....4 R3203 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 S.A
....4 R3204 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 S.A
....4 R5032 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 S.A
....4 R5033 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 S.A
....4 R5035 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 S.A
....4 R6039 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 S.A
....4 R6040 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 S.A
....4 R9336 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 S.A
....4 R9337 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 S.A
....4 R2014 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A
....4 R2017 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A
....4 R2019 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A
....4 R2056 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A
....4 R2122 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A
....4 R2147 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A
....4 R3013 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A
....4 R3030 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A
....4 R3040 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A
....4 R3041 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A
....4 R3064 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A
....4 R3065 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A
....4 R3210 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A
....4 R4010 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A
....4 R4014 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A
....4 R4016 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A
....4 R4018 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A
....4 R4127 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A
....4 R5009 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A
....4 R5010 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A
....4 R5011 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A
....4 R5016 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A
....4 R5017 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A
....4 R5018 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A
....4 R5038 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A
....4 R5039 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A
....4 R5040 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A
....4 R5042 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A
....4 R5043 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A
....4 R5049 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A
....4 R5050 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A
5-10
5. Exploded View & Part List
Level Location No. Code No. Description & Specification Q'ty SA/SNA Remark
....4 R5051 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A
....4 R5054 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A
....4 R5055 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A
....4 R5058 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A
....4 R5059 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A
....4 R5061 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A
....4 R5063 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A
....4 R5067 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A
....4 R5068 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A
....4 R5072 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A
....4 R5073 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A
....4 R5086 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A
....4 R6009 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A
....4 R6015 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A
....4 R6016 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A
....4 R6093 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A
....4 R8003 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A
....4 R8006 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A
....4 R8007 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A
....4 R8008 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A
....4 R8009 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A
....4 R8010 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A
....4 R8011 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A
....4 R8012 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A
....4 R8013 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A
....4 R8014 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A
....4 R8017 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A
....4 R9002 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A
....4 R9004 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A
....4 R9006 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A
....4 R9027 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A
....4 R9201 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A
....4 R9330 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A
....4 R1010 2007-000076 R-CHIP;330ohm,5%,1/10W,TP,1608 1 S.A
....4 R4001 2007-000076 R-CHIP;330ohm,5%,1/10W,TP,1608 1 S.A
....4 R4003 2007-000076 R-CHIP;330ohm,5%,1/10W,TP,1608 1 S.A
....4 R8018 2007-000076 R-CHIP;330ohm,5%,1/10W,TP,1608 1 S.A
....4 R8019 2007-000076 R-CHIP;330ohm,5%,1/10W,TP,1608 1 S.A
....4 R8020 2007-000076 R-CHIP;330ohm,5%,1/10W,TP,1608 1 S.A
....4 R8021 2007-000076 R-CHIP;330ohm,5%,1/10W,TP,1608 1 S.A
....4 R2084 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 S.A
....4 R2085 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 S.A
....4 R4021 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 S.A
....4 R5085 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 S.A
....4 R5103 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 S.A
....4 R2015 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A
....4 R2021 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A
....4 R2077 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A
....4 R2078 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A
....4 R2125 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A
....4 R2126 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A
5-11
5. Exploded View & Part List
Level Location No. Code No. Description & Specification Q'ty SA/SNA Remark
....4 R3009 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A
....4 R3028 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A
....4 R3029 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A
....4 R3206 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A
....4 R4020 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A
....4 R5002 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A
....4 R6033 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A
....4 R6048 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A
....4 R7025 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A
....4 R8028 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A
....4 R8031 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A
....4 R8038 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A
....4 R9034 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A
....4 R9039 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A
....4 R9040 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A
....4 R9326 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A
....4 R9328 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A
....4 R9352 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A
....4 R9353 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A
....4 R3036 2007-000081 R-CHIP;2.7Kohm,5%,1/10W,TP,1608 1 S.A
....4 R4054 2007-000082 R-CHIP;3.3Kohm,5%,1/10W,TP,1608 1 S.A
....4 R5070 2007-000082 R-CHIP;3.3Kohm,5%,1/10W,TP,1608 1 S.A
....4 R5071 2007-000082 R-CHIP;3.3Kohm,5%,1/10W,TP,1608 1 S.A
....4 R6091 2007-000082 R-CHIP;3.3Kohm,5%,1/10W,TP,1608 1 S.A
....4 R6092 2007-000082 R-CHIP;3.3Kohm,5%,1/10W,TP,1608 1 S.A
....4 R1031 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A
....4 R1032 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A
....4 R2004 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A
....4 R2005 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A
....4 R2009 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A
....4 R2010 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A
....4 R2018 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A
....4 R2069 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A
....4 R2070 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A
....4 R2081 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A
....4 R2083 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A
....4 R2088 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A
....4 R3012 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A
....4 R3044 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A
....4 R3062 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A
....4 R3063 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A
....4 R3207 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A
....4 R3254 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A
....4 R4019 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A
....4 R5069 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A
....4 R5126 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A
....4 R5127 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A
....4 R6041 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A
....4 R6042 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A
....4 R7004 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A
....4 R7016 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A
5-12
5. Exploded View & Part List
Level Location No. Code No. Description & Specification Q'ty SA/SNA Remark
....4 R7024 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A
....4 R8001 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A
....4 R8002 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A
....4 R8004 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A
....4 R8005 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A
....4 R8042 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A
....4 R1006 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A
....4 R1007 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A
....4 R1028 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A
....4 R1030 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A
....4 R1043 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A
....4 R1048 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A
....4 R1049 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A
....4 R2027 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A
....4 R2028 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A
....4 R2060 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A
....4 R2061 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A
....4 R2080 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A
....4 R2082 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A
....4 R2089 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A
....4 R2156 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A
....4 R2157 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A
....4 R3018 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A
....4 R3019 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A
....4 R3023 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A
....4 R3024 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A
....4 R3031 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A
....4 R3034 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A
....4 R3035 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A
....4 R3042 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A
....4 R3057 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A
....4 R3058 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A
....4 R3059 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A
....4 R3200 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A
....4 R3201 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A
....4 R3220 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A
....4 R3253 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A
....4 R4002 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A
....4 R4004 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A
....4 R4119 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A
....4 R4120 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A
....4 R5004 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A
....4 R5007 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A
....4 R5077 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A
....4 R5080 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A
....4 R5113 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A
....4 R5114 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A
....4 R5115 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A
....4 R5116 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A
....4 R5117 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A
....4 R5119 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A
5-13
5. Exploded View & Part List
Level Location No. Code No. Description & Specification Q'ty SA/SNA Remark
....4 R5120 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A
....4 R5121 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A
....4 R5122 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A
....4 R5124 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A
....4 R5125 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A
....4 R5128 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A
....4 R5129 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A
....4 R6004 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A
....4 R6037 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A
....4 R6101 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A
....4 R7005 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A
....4 R7006 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A
....4 R9001 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A
....4 R9012 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A
....4 R9013 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A
....4 R9016 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A
....4 R9025 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A
....4 R9028 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A
....4 R9029 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A
....4 R9030 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A
....4 R9031 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A
....4 R9032 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A
....4 R9033 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A
....4 R9045 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A
....4 R9200 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A
....4 R9331 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A
....4 R9334 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A
....4 R9335 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A
....4 R4056 2007-000091 R-CHIP;12Kohm,5%,1/10W,TP,1608 1 S.A
....4 R4057 2007-000091 R-CHIP;12Kohm,5%,1/10W,TP,1608 1 S.A
....4 R4121 2007-000091 R-CHIP;12Kohm,5%,1/10W,TP,1608 1 S.A
....4 R4123 2007-000091 R-CHIP;12Kohm,5%,1/10W,TP,1608 1 S.A
....4 R7010 2007-000091 R-CHIP;12Kohm,5%,1/10W,TP,1608 1 S.A
....4 R7011 2007-000091 R-CHIP;12Kohm,5%,1/10W,TP,1608 1 S.A
....4 R9358 2007-000091 R-CHIP;12Kohm,5%,1/10W,TP,1608 1 S.A
....4 R9359 2007-000091 R-CHIP;12Kohm,5%,1/10W,TP,1608 1 S.A
....4 R1012 2007-000094 R-CHIP;22Kohm,5%,1/10W,TP,1608 1 S.A
....4 R2024 2007-000094 R-CHIP;22Kohm,5%,1/10W,TP,1608 1 S.A
....4 R2025 2007-000094 R-CHIP;22Kohm,5%,1/10W,TP,1608 1 S.A
....4 R5074 2007-000094 R-CHIP;22Kohm,5%,1/10W,TP,1608 1 S.A
....4 R5076 2007-000094 R-CHIP;22Kohm,5%,1/10W,TP,1608 1 S.A
....4 R5078 2007-000094 R-CHIP;22Kohm,5%,1/10W,TP,1608 1 S.A
....4 R5081 2007-000094 R-CHIP;22Kohm,5%,1/10W,TP,1608 1 S.A
....4 R5106 2007-000094 R-CHIP;22Kohm,5%,1/10W,TP,1608 1 S.A
....4 R6001 2007-000094 R-CHIP;22Kohm,5%,1/10W,TP,1608 1 S.A
....4 R7009 2007-000094 R-CHIP;22Kohm,5%,1/10W,TP,1608 1 S.A
....4 R1015 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 S.A
....4 R1016 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 S.A
....4 R2048 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 S.A
....4 R2050 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 S.A
....4 R2051 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 S.A
5-14
5. Exploded View & Part List
Level Location No. Code No. Description & Specification Q'ty SA/SNA Remark
....4 R2052 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 S.A
....4 R2162 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 S.A
....4 R2163 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 S.A
....4 R4005 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 S.A
....4 R4006 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 S.A
....4 R7019 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 S.A
....4 R1008 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608 1 S.A
....4 R1011 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608 1 S.A
....4 R1040 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608 1 S.A
....4 R1041 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608 1 S.A
....4 R1042 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608 1 S.A
....4 R1058 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608 1 S.A
....4 R2055 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608 1 S.A
....4 R2058 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608 1 S.A
....4 R5082 2007-000109 R-CHIP;1Mohm,5%,1/10W,TP,1608 1 S.A
....4 R6010 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 S.A
....4 R6011 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 S.A
....4 R6023 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 S.A
....4 R6024 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 S.A
....4 R6026 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 S.A
....4 R6029 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 S.A
....4 R6030 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 S.A
....4 R6031 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 S.A
....4 R6032 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 S.A
....4 R6034 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 S.A
....4 R6035 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 S.A
....4 R6036 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 S.A
....4 R6038 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 S.A
....4 R8044 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 S.A
....4 R8045 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 S.A
....4 R8046 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 S.A
....4 R8049 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 S.A
....4 R8050 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 S.A
....4 R8051 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 S.A
....4 R8052 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 S.A
....4 R8055 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 S.A
....4 R8056 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 S.A
....4 R8059 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 S.A
....4 R8061 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 S.A
....4 R8062 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 S.A
....4 R8063 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 S.A
....4 R8064 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 S.A
....4 R8066 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 S.A
....4 R8067 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 S.A
....4 R8068 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 S.A
....4 R8070 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 S.A
....4 R8071 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 S.A
....4 R8072 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 S.A
....4 R8073 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 S.A
....4 R8074 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 S.A
....4 R8079 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 S.A
5-15
5. Exploded View & Part List
Level Location No. Code No. Description & Specification Q'ty SA/SNA Remark
....4 R8080 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 S.A
....4 R8081 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 S.A
....4 R9018 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 S.A
....4 R9021 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 S.A
....4 R9023 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 S.A
....4 R9035 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 S.A
....4 R9037 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 S.A
....4 R9038 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 S.A
....4 R5108 2007-000115 R-CHIP;82ohm,5%,1/10W,TP,1608 1 S.A
....4 R2074 2007-000119 R-CHIP;560ohm,5%,1/10W,TP,1608 1 S.A
....4 R5006 2007-000124 R-CHIP;2.2Kohm,5%,1/10W,TP,1608 1 S.A
....4 R5506 2007-000124 R-CHIP;2.2Kohm,5%,1/10W,TP,1608 1 S.A
....4 C7020 2007-000127 R-CHIP;9.1Kohm,5%,1/10W,TP,1608 1 S.A
....4 R5075 2007-000127 R-CHIP;9.1Kohm,5%,1/10W,TP,1608 1 S.A
....4 R6013 2007-000127 R-CHIP;9.1Kohm,5%,1/10W,TP,1608 1 S.A
....4 R6022 2007-000133 R-CHIP;330Kohm,5%,1/10W,TP,1608 1 S.A
....4 R2053 2007-000134 R-CHIP;33Kohm,5%,1/10W,TP,1608 1 S.A
....4 R2057 2007-000134 R-CHIP;33Kohm,5%,1/10W,TP,1608 1 S.A
....4 R2062 2007-000134 R-CHIP;33Kohm,5%,1/10W,TP,1608 1 S.A
....4 R2136 2007-000134 R-CHIP;33Kohm,5%,1/10W,TP,1608 1 S.A
....4 R5107 2007-000134 R-CHIP;33Kohm,5%,1/10W,TP,◦ Jabse Service Manual Search 2026 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
