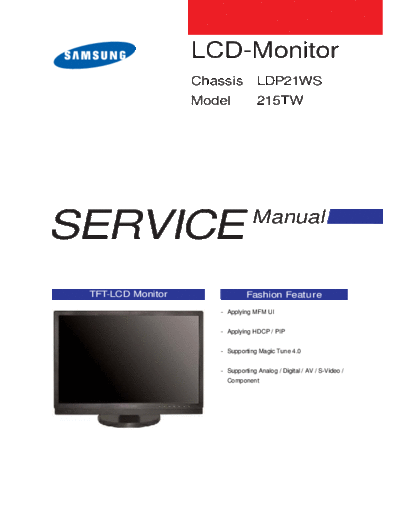

Image preview - the first page of the document
>> Download SAMSUNG_TFT-LCD+Monitor+215TW++Chassis+LPD21WS documenatation <<
Text preview - extract from the document
LCD-Monitor
Chassis LDP21WS
Model 215TW
SERVICE Manual
TFT-LCD Monitor Fashion Feature
- Applying MFM UI
- Applying HDCP / PIP
- Supporting Magic Tune 4.0
- Supporting Analog / Digital / AV / S-Video /
Component
Samsung Electronics Co.,Ltd.
-This Service Manual is a property of Samsung
416, Maetan-3Dong, Yeongtong-Gu, Suwon City,
Electronics Co., Ltd.
Gyeonggi-Do, Korea, 443-742
Any unauthorized use of Manual can be punished
Printed in Korea
under applicable International and/or domestic
P/N : BN82-00137G-00
law.
URL : http://itself.sec.samsung.co.kr/
2 Product Specifications
2 Product Specifications
2-1 Fashion Feature
- Support Analog/Digital/AV/S-Video/Component
- Improved Response Time by Adopting 16ms
- Support PIP when the sources are Anaolg and Digital
- Magic Bright2 : 6steps used
Custom/Text/Internet/Game/Sports/Movie
- Magictune 4.0 and Pivot software installed
- Auto Pivot : When the monitor is rotated in 90 degree, the display LED and OSD also are autimatically rotates
accordingly. This can be performed only when Magictune 4.0 and the Pivot software are running.
2-2 Specifications
Item Description
LCD Panel TFT-LCD panel, RGB vertical stripe, normally black transmissive,
21-Inch viewable, 0.270 (H) x 0.270 (V) mm pixel pitch
Scanning Frequency Horizontal : 31 kHz ~ 80 kHz (Automatic)
Vertical : 56 Hz ~ 75 Hz (WSXGA+ : 60 Hz)
Display Colors 16.7 Million colors
Maximum Resolution Horizontal : 1680 Pixels
Vertical : 1050 Pixels
Input Signal Analog / Digital / AV / S-Video / Component
Input Sync Signal Seperate H/V sync, Composite H/V, Sync-on-Green, Automatic synchroniza
tion whitout external swith of sync type
Support Video mode : NTSC / PAL / SECAM / PAL M / PAL N / NT43 / PAL60
support DVI mode : 480i/p,720p@50Hz, 720p@60Hz , 1080i@50Hz
1080i@60Hz (Support HDCP)
Level : TTL level
Maximum Pixel Clock rate 165 MHz
Active Display
Horizontal/Vertical 453.6(H) X 283.5(V) mm
AC power voltage & Frequency AC 90 ~ 264 Volts, 60/50 Hz ◦ Jabse Service Manual Search 2026 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
