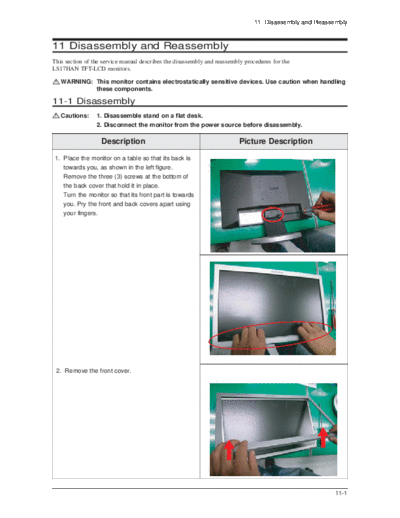

                                                                               11 Disassembly and Reassembly



11 Disassembly and Reassembly
This section of the service manual describes the disassembly and reassembly procedures for the
LS17HAN TFT-LCD monitors.

   WARNING: This monitor contains electrostatically sensitive devices. Use caution when handling
            these components.

11-1 Disassembly
   Cautions:     1. Disassemble stand on a flat desk.
                 2. Disconnect the monitor from the power source before disassembly.

                   Description                                           Picture Description

1. Place the monitor on a table so that its back is
   towards you, as shown in the left figure.
   Remove the three (3) screws at the bottom of
   the back cover that hold it in place.
   Turn the monitor so that its front part is towards
   you. Pry the front and back covers apart using
   your fingers.




 2. Remove the front cover.




                                                                                                        11-1
11 Disassembly and Reassembly



                Description                             Picture Description

3. Turn the monitor so that its front part is looking
   downwards. Then remove the back cover, as
   shown in the figure on the left.




 4. Remove the lamp protection shield on the left of
    the shield (back cover). Then remove the two
    (2) lamp wires and the function connector.
    (Be careful Shield.)
                                                           Lamp Protection Shield




5. Lift up the shield. Check and remove the
   connections between the FFC cable and the
   panel. Then remove the shield from the panel.




11-2
                                                                    11 Disassembly and Reassembly



               Description                                   Picture Description

6. Remove 2 screws.




7. Turn the shield so that its inside looks upwards.
   Remove all the screws on the main board and
   the IP board (total 4 screws). Then remove the
   protection shield at the bottom of the IP board.




8. Main board and IP-Board.




                                                       IP - BOARD                MAIN BOARD




                                                                                              11-3
11 Disassembly and Reassembly

11-2 Reassembly
Reassembly procedures are in the reverse order of disassembly procedures.
