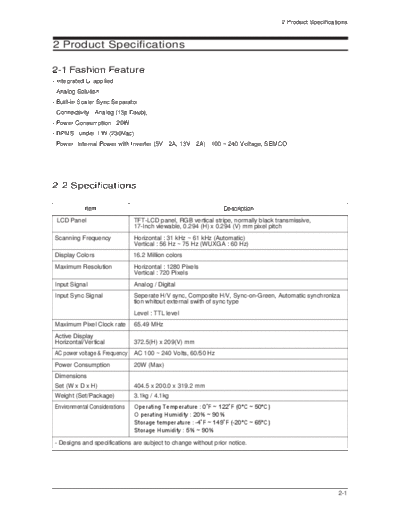

Image preview - the first page of the document



>> Download 740NW[6] documenatation <<

Text preview - extract from the document

                                                                                    2 Product Specifications


2 Product Specifications

2-1 Fashion Feature
- Integrated UI applied
- Analog Solution
- Built-in Scaler Sync Separator
- Connectivity : Analog (15p Dsub),
- Power Consumption : 20W
- DPMS : under 1 W (230Vac)
- Power: Internal Power with Inverter (5V - 2A, 13V - 2A) - 100 ~ 240 Voltage, SEMCO




2-2 Specifications

            Item                                               Description
 LCD Panel                     TFT-LCD panel, RGB vertical stripe, normally black transmissive,
                               17-Inch viewable, 0.294 (H) x 0.294 (V) mm pixel pitch
Scanning Frequency             Horizontal : 31 kHz ~ 61 kHz (Automatic)
                               Vertical : 56 Hz ~ 75 Hz (WUXGA : 60 Hz)
Display Colors                 16.2 Million colors
Maximum Resolution             Horizontal : 1280 Pixels
                               Vertical : 720 Pixels
Input Signal                   Analog / Digital
Input Sync Signal              Seperate H/V sync, Composite H/V, Sync-on-Green, Automatic synchroniza
                               tion whitout external swith of sync type
                               Level : TTL level
Maximum Pixel Clock rate       65.49 MHz
Active Display
Horizontal/Vertical            372.5(H) x 209(V) mm
AC power voltage & Frequency   AC 100 ~ 240 Volts, 60/50 Hz
Power Consumption              20W (Max)
Dimensions
Set (W x D x H)                404.5 x 200.0 x 319.2 mm
Weight (Set/Package)           3.1kg / 4.1kg
Environmental Considerations   Operating Temperature : 0
