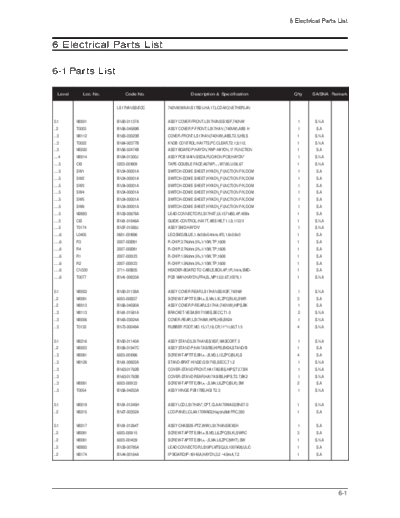

Image preview - the first page of the document
![740NW[9]](/pics/5c55b632b4f9f.gif)
>> Download 740NW[9] documenatation <<
Text preview - extract from the document
6 Electrical Parts List
6 Electrical Parts List
6-1 Parts List
Level Loc. No. Code No. Description & Specification Q'ty SA/SNA Remark
LS17HANSS/EDC 740NW,WAA1/S17B2-LHA,17,LCD-MO,NETHERLAN
0.1 M0001 BN90-01137A ASSY COVER FRONT;LS17HANSS/XSF,740NW 1 S.N.A
..2 T0003 BN96-04589B ASSY COVER P-FRONT;LS17HAN (740NW),ABS H 1 S.A
...3 M0112 BN63-03023B COVER-FRONT;LS17HAN(740NW),ABS,T2.5,HB,S 1 S.N.A
...3 T0022 BN64-00377B KNOB CONTROL;HA17TS,PC CLEAR,T2.1,9,112, 1 S.N.A
...3 M0020 BN96-02474B ASSY BOARD P;HAYDN,YWP-HAYDN,17 FUNCTION 1 S.A
....4 M0014 BN94-01300J ASSY PCB MAIN-SEDA,FUCHION PCB;HAYDN* 1 S.N.A
.....5 CIS 0203-001809 TAPE-DOUBLE FACE;467MP,-,-,W7.80,L106.67 1 S.N.A
.....5 SW1 BN34-00001A SWITCH-DOME SHEET;HYADN_FUNCTION F/K,DOM 1 S.A
.....5 SW2 BN34-00001A SWITCH-DOME SHEET;HYADN_FUNCTION F/K,DOM 1 S.A
.....5 SW3 BN34-00001A SWITCH-DOME SHEET;HYADN_FUNCTION F/K,DOM 1 S.A
.....5 SW4 BN34-00001A SWITCH-DOME SHEET;HYADN_FUNCTION F/K,DOM 1 S.A
.....5 SW5 BN34-00001A SWITCH-DOME SHEET;HYADN_FUNCTION F/K,DOM 1 S.A
.....5 SW6 BN34-00001A SWITCH-DOME SHEET;HYADN_FUNCTION F/K,DOM 1 S.A
.....5 M2893 BN39-00678A LEAD CONNECTOR;LS17HAT,UL1571#30,4P,400m 1 S.A
.....5 CIS BN61-01846A GUIDE-CONTROL;HA17T,ABS HB,T1.1,9,112,IV 1 S.N.A
.....5 T0174 BN97-01589J ASSY SMD;HAYDN* 1 S.N.A
......6 L0405 0601-001896 LED;SMD,BLUE,1.6x0.8x0.4mm,470,1.6x0.8x0 1 S.A
......6 R3 2007-000081 R-CHIP;2.7Kohm,5%,1/10W,TP,1608 1 S.A
......6 R4 2007-000081 R-CHIP;2.7Kohm,5%,1/10W,TP,1608 1 S.A
......6 R1 2007-000123 R-CHIP;1.5Kohm,5%,1/10W,TP,1608 1 S.A
......6 R2 2007-000123 R-CHIP;1.5Kohm,5%,1/10W,TP,1608 1 S.A
......6 CN330 3711-005935 HEADER-BOARD TO CABLE;BOX,4P,1R,1mm,SMD- 1 S.A
......6 T0077 BN41-00633A PCB MAIN;HAYDN,FR4,2L,MP1.0,0.6T,105*8,1 1 S.N.A
0.1 M0002 BN90-01138A ASSY COVER REAR;LS17HANSS/XSF,740NW 1 S.N.A
..2 M0081 6003-000337 SCREW-TAPTITE;BH,+,S,M4,L10,ZPC(BLK),SWR 3 S.A
..2 M0013 BN96-04590A ASSY COVER P-REAR;LS17HA (740NW),HIPS,BK 1 S.A
...3 M0113 BN61-01581A BRACKET-VESA;BI17/19BS,SECC,T1.0 2 S.N.A
...3 M0006 BN63-03024A COVER-REAR;LS17HAW,HIPS,HB,BK24 1 S.N.A
...3 T0132 BN73-00049A RUBBER FOOT;MO 15,17,19,CR,11*11,60,T1.5 4 S.N.A
0.1 M0216 BN90-01140A ASSY STAND;LS17HANSS/XSF,MASCORT 2 1 S.N.A
..2 M0003 BN96-01947C ASSY STAND P;HA17AS/BS,HIPS,BK24,STAND/B 1 S.A
...3 M0081 6003-001086 SCREW-TAPTITE;BH,+,-,B,M3,L12,ZPC(BLK),S 4 S.A
...3 M0126 BN61-00822A STAND-BRKT HINGE;GS17VS,SECC,T1.2 1 S.N.A
...3 BN63-01762B COVER-STAND FRONT;HA17AS/BS,HIPS,T2.7,BK 1 S.N.A
...3 BN63-01763B COVER-STAND REAR;HA17AS/BS,HIPS,T2.7,BK2 1 S.N.A
...3 M0081 6003-000133 SCREW-TAPTITE;BH,+,-,S,M4,L8,ZPC(BLK),SW 2 S.A
...3 T0054 BN96-04253A ASSY HINGE P;BI17BS,HGI T2.3 1 S.N.A
0.1 M0019 BN91-01245H ASSY LCD;LS17HAN*,CPT,CLAA170WA02,BN07-0 1 S.N.A
..2 M0215 BN07-00352A LCD-PANEL;CLAA170WA02,Haydn,6bit FRC,393 1 S.A
0.1 M0017 BN91-01264T ASSY CHASSIS-PTZ,W/W;LS17HANSB/XSH 1 S.A
..2 M0081 6003-000115 SCREW-TAPTITE;BH,+,B,M3,L6,ZPC(BLK),SWRC 3 S.A
..2 M0081 6003-001439 SCREW-TAPTITE;BH,+,-,S,M4,L8,ZPC(WHT),SW 1 S.N.A
..2 M2893 BN39-00785A LEAD CONNECTOR;LS19PLMTSQ,UL1007#26,UL/C 1 S.A
..2 M0174 BN44-00164A IP BOARD;IP-19145A,HAYDN,3.2 ~4.9mA,7.2 1 S.A
6-1
6 Electrical Parts List
Level Loc. No. Code No. Description & Specification Q'ty SA/SNA Remark
..2 M0014 BN94-01160E ASSY PCB MAIN-PTZ,W/W;LS17HANSB/XSH 1 S.N.A
...3 T0245 0202-001492 SOLDER-WIRE FLUX;HSE-02 LFM48 SR-34 S,-, 0.003 S.N.A
...3 CN101 3701-001219 CONNECTOR-DSUB;15P,3R,FEMALE,ANGLE,AUF 1 S.A
...3 BN97-01320E ASSY SMD-PTZ;LS17HANSB/XSH 1 S.N.A
....4 SUB05 0202-001477 SOLDER-CREAM;LST309-M,-,D20~45◦ Jabse Service Manual Search 2026 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
