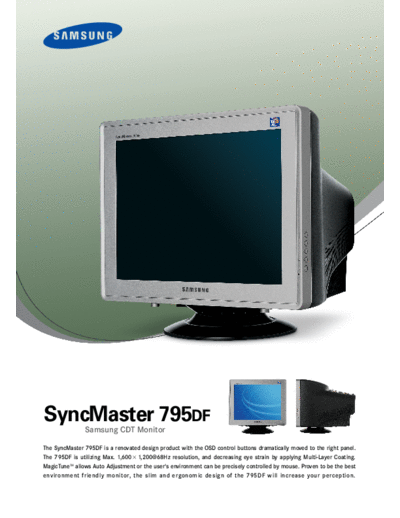

Image preview - the first page of the document
>> Download Samsung SyncMaster 795DF documenatation <<
Text preview - extract from the document
SyncMaster 795DF
Samsung CDT Monitor
The SyncMaster 795DF is a renovated design product with the OSD control buttons dramatically moved to the right panel.
The 795DF is utilizing Max. 1,600 1,200@68Hz resolution, and decreasing eye strain by applying Multi-Layer Coating.
MagicTuneTM allows Auto Adjustment or the user's environment can be precisely controlled by mouse. Proven to be the best
environment friendly monitor, the slim and ergonomic design of the 795DF will increase your perception.
SyncMaster 795DF
Samsung CDT Monitor
DynaFlatTM Specifications Summary
795DF has enriched color realization, CDT Size 17 (16.0 Viewable)
improved white uniformity and excellent focus Face DynaFlatTM
by adopting DynaFlatTM CDT. Of Course, Deflection 90
DynaFlatTM gives distortion free and razor- Pitch 0.20mm(H)
sharp pictures with extraordinary clarity. Surface treatment Multi-Layer Coating
Input Signal Video signal RGB Analog
Sync signal Separate H/V
MagicTuneTM Horizontal Frequency 30 - 85kHz
Vertical Frequency 50 - 160Hz
To control the screen size, the brightness, the
Pixel Frequency 185MHz
contrast, and the MagicBright's detailed color
Signal Connection 15pin D-Sub
of a monitor, a mouse is used instead of using
Resolution Max. (based on 1,600 x1,200 @68Hz
front OSD (On Screen Display) buttons
VESA GTF Timing) 1,280 x 1,024 @79Hz
1,152 x 864 @93Hz
Natural Color ProTM 1,024 x 768 @104Hz
The colors seen on the monitor are portrayed as 800 x 600 @131Hz
more natural colors and will perfectly match the 640 x 480 @160Hz
colors produced by your printer. This software Recommended 1,024 x 768 @85Hz
uses true colors, so what is expressed on your 1,280 x 1,024 @75Hz
monitor will be printed exactly the same way on Display Size Typical(mm) 312 x 234
paper. What you see is what you get. Max(mm) 325 x 244
Mode Factory/User 3/8 modes
Power Supply AC90-264VAC, 50/60Hz
TCO 03 Consumption(nominal) 80W
TCO certification is granted only to high level Power Management 2W @Off State
products that have passed stringent tests in Regulation EPA/VESA DPMS
the evaluation of picture quality, environment- User Control Display DirectorTM Brightness, Contrast,
friendliness, and user convenience. Samsung H/V-Moire, Degauss, Reset
has again renewed its TCO certification for the Color Temperature (6500K/9300K)
SyncMaster in 2003. Rest assured that Samsung monitors are Color (Red, Green, Blue)
environmentally friendly and safe. sRGB
H-Position, V-Position
H-Size, V-Size
Multimedia Stand Pincushion, Pinbalance
A stand-type Audio System without extra Trapezoid, Parallelogram
personal speakers, the Multimedia lets you Rotation
easily experience the dynamic sound of Feature Plug & Play DDC 2B/2Bi
multimedia entertainment! (Option) Regulation Safety & X-ray UL, CSA, TUV, CB, NEMKO, Korea EK
CCIB, PSB, NOM, GOST, CDRH, IRAM
EMC FCC, CE, VCCI, C-tick, BSMI, Mic, ICES
Enviromental/Ergonomics TUV GS, MPR II,TCO 03 (Option)
Windows Logo Windows2000/ME/XP
Dimensions(unit:mm) Set Size Set(WxDxH) [mm] 401x410x378
410 401 Weight Set/Box 14.3kg / 16.2kg
Accessory Software Kit Install Driver
Manual
MagicTuneTM
Natural Color ProTM
378
* Design and specifications are subject to change without notice
