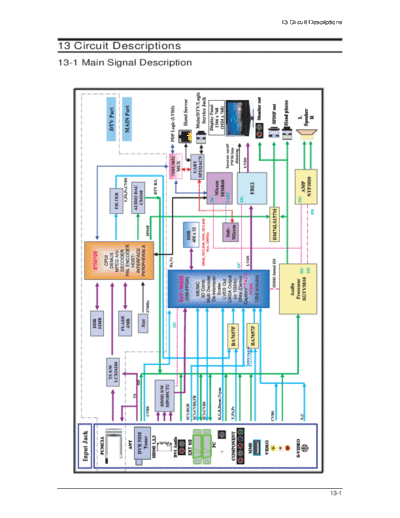

Image preview - the first page of the document



>> Download Samsung_LE23R86BD_LE26R86BD_LE32R86BD_LE37R86BD_LE40R86BD_LE23R87BD_LE26R87BD_LE32R87BD_LE37R87BD_LE40R87BD_CH_GBP23-26-32-37-40SEN_Circuit Description_[SM] documenatation <<

Text preview - extract from the document

                               13 Circuit Descriptions



13 Circuit Descriptions
13-1 Main Signal Description




                                                 13-1
13 Circuit Descriptions

13-2 DTV Signal Description




13-2
                                                                                   13 Circuit Descriptions

13-3 RF/DTV Tuner (DNOS403MH261B(S)) SPEC.
1. Description
1-1 Receiving System : Designed to cover all bands in VHF and UHF including digital terrestrial(DVB-T)
    and hyper channels for CCIR system.
1-2 It built in COFDM-Demod IC & Analog Demod IC (PAL B/G, I, D/K, SECAM L/L')
1-3 Receiving Channel               : 47MHz ~ 862MHz
1-4 Intermediate Frequency          : Digital(center) 36.167 MHz, Analog(picture) 38.9MHz
1-5 Input Impedance                 : 75
