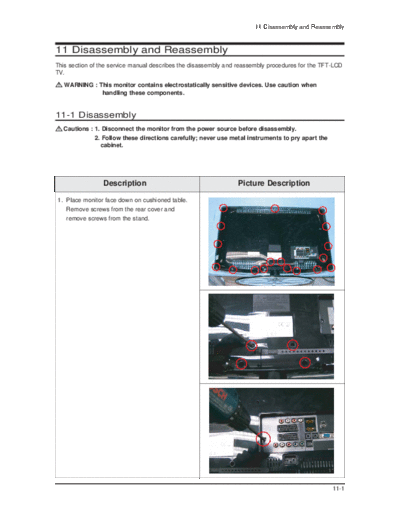

Image preview - the first page of the document



>> Download Samsung_LE23R86BD_LE26R86BD_LE32R86BD_LE37R86BD_LE40R86BD_LE23R87BD_LE26R87BD_LE32R87BD_LE37R87BD_LE40R87BD_CH_GBP23-26-32-37-40SEN_Disassembly & Reassembly_[SM] documenatation <<

Text preview - extract from the document

                                                                      11 Disassembly and Reassembly



11 Disassembly and Reassembly
This section of the service manual describes the disassembly and reassembly procedures for the TFT-LCD
TV.

   WARNING : This monitor contains electrostatically sensitive devices. Use caution when
              handling these components.


11-1 Disassembly
  Cautions : 1. Disconnect the monitor from the power source before disassembly.
             2. Follow these directions carefully; never use metal instruments to pry apart the
               cabinet.




                 Description                                    Picture Description

1. Place monitor face down on cushioned table.
   Remove screws from the rear cover and
   remove screws from the stand.




                                                                                                  11-1
11 Disassembly and Reassembly


                Description                       Picture Description

2. Lift up the rear cover and remove the stand.




3. Remove Screws from the stand BRKT and lift
   up the stand BRKT.




11-2
                                                      11 Disassembly and Reassembly


                 Description                      Picture Description

4. Lift up the shield and disonnect cables from
   the boards.




5. Remove screws from the boards and remove
   screw from theside connector.




                                                                               11-3
11 Disassembly and Reassembly


               Description              Picture Description

6. Remove screws and lift up the BRKT




11-4
                                                                      11 Disassembly and Reassembly

11-2 Reassembly
Reassembly procedures are in the reverse order of disassembly procedures.




                                                                                               11-5
11 Disassembly and Reassembly

Memo




11-6
