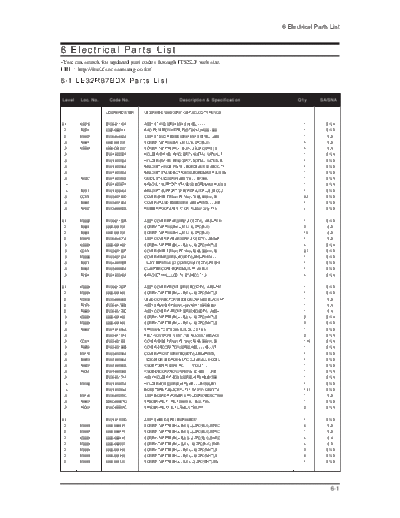

Image preview - the first page of the document
![Samsung_LE23R86BD_LE26R86BD_LE32R86BD_LE37R86BD_LE40R86BD_LE23R87BD_LE26R87BD_LE32R87BD_LE37R87BD_LE40R87BD_CH_GBP23-26-32-37-40SEN_Electrical Part List_[SM]](/pics/5c26d70113375.gif)
>> Download Samsung_LE23R86BD_LE26R86BD_LE32R86BD_LE37R86BD_LE40R86BD_LE23R87BD_LE26R87BD_LE32R87BD_LE37R87BD_LE40R87BD_CH_GBP23-26-32-37-40SEN_Electrical Part List_[SM] documenatation <<
Text preview - extract from the document
6 Electrical Parts List
6 Electrical Parts List
-You can search for updated part codes through ITSELF web site.
URL : http://itself.sec.samsung.co.kr/
6-1 LE32R87BDX Parts List
Level Loc. No. Code No. Description & Specification Q'ty SA/SNA
LE32R87BDX/XEH LE32R87BD,N30A/32R81-GBP,32,LCD-TV,HUNGA
0.1 M0216 BN90-01149A ASSY STAND;32R81,M81,SWIVEL,-,-,-,- 1 S.N.A
..2 T0524 6902-000241 BAG PE;NITRON/HDPE,T0.5/T0.012,W600,L600 1 S.N.A
..2 M0027 BN96-04662A ASSY STAND P-BASE;32R81,M81,SWIVEL,-,ABS 1 S.A
...3 T0081 6002-001294 SCREW-TAPPING;BH,+,,M4,L16,ZPC(BLK) 4 S.A
...3 M0081 6003-001239 SCREW-TAPTITE;FH,+,-,B,M4,L10,ZPC(WHT),S 4 S.A
...3 BN61-02232A HOLDER-SWIVEL RING;32R71,ACETAL NATUAL,T 1 S.N.A
...3 BN61-02233A HOLDER-SWIVEL RING;32R71,ACETAL NATUAL,B 1 S.N.A
...3 BN61-02236A BRACKET-HINGE SWIVEL;BORDEAUX 32,SECC,T1 1 S.N.A
...3 BN61-02942A BRACKET-STAND BOTTOM;32,BORDEAUX PLUS,SE 1 S.N.A
...3 T0920 BN61-02943A GUIDE-STAND;32R81,ABS,V0,-,-,-,BK500,- 1 S.N.A
....4 BN61-02967A BRACKET-SUPPORT STAND;32 BORDEAUX PLUS,S 1 S.N.A
....4 T0514 BN61-03046A BRACKET-SUPPORT;32 BORDEAUX PLUS,SECC,2. 1 S.N.A
...3 CCM1 BN63-02183D COVER-SHEET;Rhcm,PE Vinyl,T0.05,680mm,20 0.4 S.N.A
...3 T0004 BN63-03102A COVER-STAND BASE;32R81,ABS+PMMA,-,-,-,HB 1 S.N.A
...3 T0132 BN73-00052A RUBBER FOOT;ARES 17,CR Rubber Gray,T1.5 4 S.N.A
0.1 M0002 BN90-01153B ASSY COVER REAR;32R81,EO(IDTV),-,ABS+PMM 1 S.N.A
..2 T0081 6002-001294 SCREW-TAPPING;BH,+,,M4,L16,ZPC(BLK) 2 S.A
..2 T0081 6002-001294 SCREW-TAPPING;BH,+,,M4,L16,ZPC(BLK) 13 S.A
..2 M0013 BN96-04671A ASSY COVER P-REAR;32R81,EO(IDTV),-,ABS+P 1 S.A
...3 M0081 6003-001188 SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S 4 S.N.A
...3 CCM1 BN63-02183F COVER-SHEET;Rhcm,PE Vinyl,T0.05,900mm,20 0.7 S.N.A
...3 M0006 BN63-03167A COVER-REAR;32R81,EO(IDTV),ABS+PMMA,-,-,- 1 S.N.A
...3 T0071 BN64-00555B INLAY-TERMINAL;07,COMMON,EO(IDTV),PS SHE 1 S.N.A
...3 T0064 BN65-00002A CLAMPER CORE;BORDEAUX,PP,V0,BLK 1 S.N.A
...3 T0101 BN61-03348A BRACKET-WALL;LCD TV 32",SECC T1.6 4 S.N.A
0.1 M0001 BN90-01267F ASSY COVER FRONT;32R87,EO(IDTV),-,ABS+PM 1 S.N.A
..2 M0081 6003-001188 SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S 1 S.N.A
..2 M2893 BN39-00609A LEAD CONNECTOR;VE20EO,UL1015#22 BLACK,1P 1 S.A
..2 T0175 BN96-04768B ASSY SPEAKER P;8ohm,4pin,10W,150/650,Bor 1 S.A
..2 T0003 BN96-05170E ASSY COVER P-FRONT;32R87,EO(IDTV),-,ABS+ 1 S.A
...3 M0081 6003-001188 SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S 2 S.N.A
...3 M0081 6003-001188 SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S 2 S.N.A
...3 T0060 BN61-01655A SPRING ETC;STS-304 SUS,D8,L12,T0.5 1 S.N.A
...3 BN63-01151A FELT-NON WOVEN;MM17NS,T0.5,393,10,BLACK 2 S.N.A
...3 CCM1 BN63-02183F COVER-SHEET;Rhcm,PE Vinyl,T0.05,900mm,20 1.48 S.N.A
...3 T0056 BN63-03100B COVER-DECORATION;32R82,ABS,-,-,-,HB,-,NT 1 S.N.A
...3 M0112 BN63-03238A COVER-FRONT;32R87,EO(IDTV),ABS+PMMA,-,-, 1 S.N.A
...3 T0059 BN64-00366A INDICATOR LED;ROME-I,PC,CLEAR,ALL MODEL 1 S.N.A
...3 T0023 BN64-00589A KNOB POWER;32S81,PC,-,-,-,-,VIOLET,-,- 1 S.N.A
...3 T0054 BN64-00590A KNOB-DECORATION;JASMINE 32,ABS,-,-,-,HB, 1 S.N.A
...3 BN96-05174A ASSY HOLDER P-BOSS;32R82,HIPS,HB,BK500 1 S.N.A
....4 M0960 BN61-03027A HOLDER-BOSS;32R82,HIPS,HB,-,-,-,BK500,BO 1 S.N.A
....4 BN61-03261A BOSS-TAPE;Tulip,ACRYL,T1.1,W12mm,GRAY,TA 1.17 S.N.A
...3 M0146 BN96-05257C ASSY BOARD P-POWER & IR;LE32R87BDX,CT500 1 S.A
...3 T0069 AA60-00091G SPACER-FELT;-,FELT,200X10,-,-,BLK,T0.5,- 1 S.N.A
...3 T0069 BN60-00051C SPACER-FELT;FELT,L70,BLK,T0.5,W4 2 S.N.A
0.1 BN91-01597D ASSY SHIELD-SPE;LE32R86BDX/* 1 S.N.A
..2 M0081 6003-000115 SCREW-TAPTITE;BH,+,B,M3,L6,ZPC(BLK),SWRC 6 S.A
..2 M0081 6003-000115 SCREW-TAPTITE;BH,+,B,M3,L6,ZPC(BLK),SWRC 1 S.A
..2 M0081 6003-000115 SCREW-TAPTITE;BH,+,B,M3,L6,ZPC(BLK),SWRC 4 S.A
..2 M0081 6003-000337 SCREW-TAPTITE;BH,+,S,M4,L10,ZPC(BLK),SWR 4 S.A
..2 M0081 6003-001188 SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S 2 S.N.A
..2 M0081 6003-001188 SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S 8 S.N.A
..2 M0081 6003-001439 SCREW-TAPTITE;BH,+,-,S,M4,L8,ZPC(WHT),SW 1 S.N.A
6-1
6 Electrical Parts List
Level Loc. No. Code No. Description & Specification Q'ty SA/SNA
..2 T0073 AA63-01200A GASKET-EMI;42S5,Ni,T0.1,W40,L70,Fabric 2 S.N.A
..2 M2893 BN39-00603M LEAD CONNECTOR;LE40R73BDX,UL1007#26,UL/C 1 S.A
..2 T0076 BN39-00615D CBF HARNESS;BORDEAUX,1617#22,3P,1P,RING, 1 S.A
..2 M2893 BN39-00802A LEAD CONNECTOR;LE32R86BDX,UL1007#26,UL/C 1 S.A
..2 M2893 BN39-00890A LEAD CONNECTOR;LE32R86BDX,UL1571#30,30P, 1 S.A
..2 M2893 BN39-00918B LEAD CONNECTOR;BORDEAUX PLUS,UL1007#26,U 1 S.A
..2 T0764 BN44-00156A SMPS-LCDTV;MK32P,SEM,AC/DC,180W,AC100 ~ 1 S.A
..2 M0146 BN61-02419A BRACKET-PANEL SIDE;SONOMA 32,SECC,T1.2,A 4 S.N.A
..2 M0114 BN61-02500A HOLDER-WIRE;NYLON6.6,NATURAL 2 S.N.A
..2 BN61-02952B HOLDER-SIDE AV;07 COMMON,EO,ABS+PMMA,HB, 1 S.N.A
..2 M0115 BN61-02965A BRACKET-STAND LINK;32 BORDEAUX PLUS,SECC 1 S.N.A
..2 M0107 BN63-03039A SHIELD-COVER;MURANO40,PCM,T0.5,IDTV 1 S.N.A
..2 T0447 BN96-04681A ASSY BRACKET P-PANEL;32R81,-,-,-,-,AM,CM 1 S.N.A
...3 M0131 AA63-01437A GASKET;Bordeaux,Conductive Fabric,20mm,9 1 S.N.A
...3 BN61-02200A BRACKET-GUIDE POWER;Bordeaux 32,SECC,T1. 1 S.N.A
...3 M0146 BN61-02970A BRACKET-PANEL TOP;32 BORDEAUX PLUS,SECC, 1 S.N.A
...3 BN61-02974A BRACKET-PANEL BOTTOM;32 BORDEAUX PLUS,SE 1 S.N.A
...3 BN61-02978A BRACKET-GUIDE MAIN;32 BORDEAUX PLUS,SECC 1 S.N.A
...3 M0131 AA63-01438A GASKET;Bordeaux,Conductive Fabric,7mm,8m 1 S.N.A
...3 BN61-02199B BRACKET-GUIDE POWER;Bordeaux 32,SECC,T1. 1 S.N.A
...3 M0131 BN63-03327A GASKET;BORDEAUX PLUS,Conductive Fabric,2 1 S.N.A
0.1 BN91-01702A ASSY LCD-AMLCD;LNT3232HX/* 1 S.N.A
..2 M0215 BN07-00453A LCD-PANEL;LTA320WT-L06,8bit,32inch,16.7M 1 S.A
0.1 M0017 BN91-01770A ASSY CHASSIS;LE32R86BDX/* 1 S.N.A
..2 M0014 BN94-01472A ASSY PCB MAIN-AMLCD VE;LE32R86BDX/* 1 S.A
...3 T0245 0202-001492 SOLDER-WIRE FLUX;HSE-02 LFM48 SR-34 S,-, 0.25 S.N.A
...3 JA1410_NSI 3701-001388 CONNECTOR-HDMI;20P,Phosphor Bronze,ANGLE 1 S.A
...3 JA1406_OP 3701-001400 CONNECTOR-DSUB;15P,3R,FEMALE,STRAIGHT,Ni 1 S.A
...3 CN906 3707-001081 CONNECTOR-OPTICAL;STRAIGHT,SPDIF 1 S.A
...3 JA3201_OP 3709-001477 CONNECTOR-CARD SLOT;68P,1.27mm,ANGLE,AU, 1 S.A
...3 CN330 3711-000058 HEADER-BOARD TO CABLE;BOX,4P,1R,2.5MM,AN 1 S.A
...3 CN330 3711-004484 HEADER-BOARD TO CABLE;BOX,5P,1R,2mm,STRA 1 S.A
...3 CN330 3711-004531 HEADER-BOARD TO CABLE;BOX,10P,1R,2mm,ANG 1 S.A
...3 CN330 3711-005606 HEADER-BOARD TO CABLE;BOX,30P,2R,2mm,STR 1 S.A
...3 CN330 3711-005842 HEADER-BOARD TO CABLE;BOX,24P,2R,2MM,STR 1 S.A
...3 JA330 3722-000143 JACK-PHONE;1P(VER),AG,BLK,ANGLE 1 S.A
...3 JA1601_EU 3722-000498 JACK-SCART;21P,-,SN,BLK,NO 1 S.A
...3 JA1608_EU 3722-000498 JACK-SCART;21P,-,SN,BLK,NO 1 S.A
...3 JA330 3722-001061 JACK-PHONE;1P,3.6PI,AG,BLK,N 1 S.A
...3 JA330 3722-001061 JACK-PHONE;1P,3.6PI,AG,BLK,N 1 S.A
...3 JA332 3722-001163 JACK-VHS;4P,AU,BLK,ANGLE 1 S.A
...3 JA333 3722-002360 JACK-PIN;3P,AU,GRN/BLU/RED,STRAIGHT 1 S.A
...3 JA333 3722-002362 JACK-PIN;2P,Sn,WHT/RED,STRAIGHT 1 S.A
...3 JA333 3722-002362 JACK-PIN;2P,Sn,WHT/RED,STRAIGHT 1 S.A
...3 JA333 3722-002362 JACK-PIN;2P,Sn,WHT/RED,STRAIGHT 1 S.A
...3 JA333 3722-002543 JACK-PIN;3P,Sn,RED/WHT/YEL,ANGLE 1 S.A
...3 CIS3 BN40-00096A TUNER;DNOS403MH261B(S),PAL Hyper,181CH, 1 S.A
...3 T0603 BN63-02494A SHIELD-PCB MAIN;MOSEL 40",SPTE,T0.3,EURO 1 S.N.A
...3 T0603 BN63-03197A SHIELD-PCB MAIN;TULIP PAL,SPTE,T0.5 1 S.N.A
...3 M0131 BN63-03549A GASKET;BORDEAUX PLUS,Conductive Fabric,1 1 S.N.A
...3 CCMM1 BN73-00024D SILICON/RUBBER;BORDEAUX,SILICON,28x28XT6 1 S.N.A
...3 CCMM1 BN73-00151A SILICON/RUBBER;GP1500 380MIL,20X20X9.5T 1 S.N.A
...3 T0174 BN97-01773A ASSY SMD;LE32R86BDX/* 1 S.N.A
....4 SUB05 0202-001477 SOLDER-CREAM;LST309-M,-,D20~45◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
