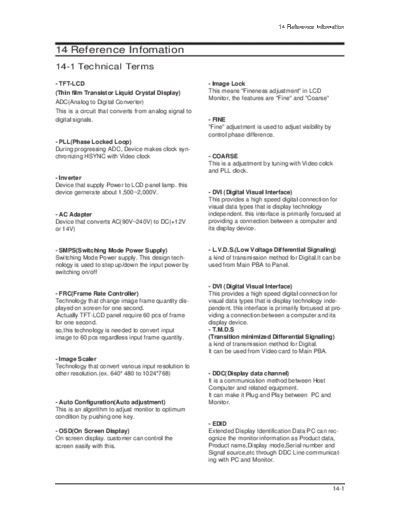

Image preview - the first page of the document
![Samsung_LE23R86BD_LE26R86BD_LE32R86BD_LE37R86BD_LE40R86BD_LE23R87BD_LE26R87BD_LE32R87BD_LE37R87BD_LE40R87BD_CH_GBP23-26-32-37-40SEN_Reference Information_[SM]](/pics/5c26d71f532e3.gif)
>> Download Samsung_LE23R86BD_LE26R86BD_LE32R86BD_LE37R86BD_LE40R86BD_LE23R87BD_LE26R87BD_LE32R87BD_LE37R87BD_LE40R87BD_CH_GBP23-26-32-37-40SEN_Reference Information_[SM] documenatation <<
Text preview - extract from the document
14 Reference Infomation
14 Reference Infomation
14-1 Technical Terms
- TFT-LCD - Image Lock
(Thin film Transistor Liquid Crystal Display) This means "Fineness adjustment" in LCD
Monitor, the features are "Fine" and "Coarse"
ADC(Analog to Digital Converter)
This is a circuit that converts from analog signal to
digital signals. - FINE
"Fine" adjustment is used to adjust visibility by
control phase difference.
- PLL(Phase Locked Loop)
During progressing ADC, Device makes clock syn-
chronizing HSYNC with Video clock - COARSE
This is a adjustment by tuning with Video colck
and PLL clock.
- Inverter
Device that supply Power to LCD panel lamp. this
device gernerate about 1,500~2,000V. - DVI (Digital Visual Interface)
This provides a high speed digital connection for
visual data types that is display technology
- AC Adapter independent. this interface is primarily forcused at
Device that converts AC(90V~240V) to DC(+12V providing a connection between a computer and
or 14V) its display device.
- SMPS(Switching Mode Power Supply) - L.V.D.S.(Low Voltage Differential Signaling)
Switching Mode Power supply. This design tech- a kind of transmission method for Digital.It can be
nology is used to step up/down the input power by used from Main PBA to Panel.
switching on/off
- DVI (Digital Visual Interface)
- FRC(Frame Rate Controller) This provides a high speed digital connection for
Technology that change image frame quantity dis- visual data types that is display technology inde-
played on screen for one second. pendent. this interface is primarily forcused at pro-
Actually TFT-LCD panel require 60 pcs of frame viding a connection between a computer and its
for one second. display device.
so,this technology is needed to convert input - T.M.D.S
image to 60 pcs regardless input frame quantity. (Transition minimized Differential Signaling)
a kind of transmission method for Digital.
It can be used from Video card to Main PBA.
- Image Scaler
Technology that convert various input resolution to
other resolution.(ex. 640* 480 to 1024*768) - DDC(Display data channel)
It is a communication method between Host
Computer and related equipment.
It can make it Plug and Play between PC and
- Auto Configuration(Auto adjustment) Monitor.
This is an algorithm to adjust monitor to optimum
condition by pushing one key.
- EDID
- OSD(On Screen Display) Extended Display Identification Data PC can rec-
On screen display. customer can control the ognize the monitor information as Product data,
screen easily with this. Product name,Display mode,Serial number and
Signal source,etc through DDC Line communicat-
ing with PC and Monitor.
14-1
14 Reference Infomation
The number of horizontal and vertical dots used to
compose the screen image is called 'resolution'.
- Dot Pitch This number shows the accuracy of the display.
The image on a monitor is composed of red, green High resolution is good for performing multiple
and blue dots. The closer the dots, the higher the tasks as more image information can be shown on
resolution. The distance between two dots of the the screen.
same color is called the 'Dot Pitch'. Unit: mm Example: If the resolution is 1280 x 1024 , this
means the screen is composed of 1280 horizontal
dots (horizontal resolution) and 1024 vertical lines
- Vertical Frequency (vertical resolution).
The screen must be redrawn several times per
second in order to create and display an image for
the user. The frequency of this repetition per sec- - BTSC
ond is called Vertical Frequency or Refresh Rate. Broadcast Television System Committee
Unit: Hz The stereo broadcasting system that is used in
Example: If the same light repeats itself 60 times most of the countries that have adopted the NTSC
per second, this is regarded as 60 Hz. system, including the United States, Canada,
Chile, Venezuela and Taiwan. It also refers to the
organization that has been organized to promote
- Horizontal Frequency its development and management.
The time to scan one line connecting the right
edge to the left edge of the screen horizontally is
called Horizontal Cycle. The inverse number of the - EIAJ
Horizontal Cycle is called Horizontal Frequency. Electronic Industries Association of Japan.
Unit: kHz
- RF Cable
A round signal cable generally used for TV antennas.
- Interlace and Non-Interlace Methods - Satellite Broadcasting
Showing the horizontal lines of the screen from the Broadcasting service provided via satellite.
top to the bottom in order is called the Non- Enables high picture quality and clear sound
Interlace method while showing odd lines and then throughout the country regardless of the location of
even lines in turn is called the Interlace method. the viewer.
The Non-Interlace method is used for the majority
of monitors to ensure a clear image. The Interlace
method is the same as that used in TVs. - Sound Balance
Balances the levels of the sound coming from
each speaker in televisions with two speakers.
- Plug & Play
This is a function that provides the best quality
screen for the user by allowing the computer and - Cable TV
the monitor to exchange information automatically. Whereas the terrestrial broadcasting is delivered
This monitor follows the international standard via frequency signals through the air, cable broad-
VESA DDC for the Plug & Play function. casting is transmitted via a cable network. In order
to view cable TV, one must purchase a cable
receiver and hook it up to the cable network.
- Resolution
14-2
14 Reference Infomation
- CATV
"CATV" refers to the broadcasting service offered
at hotels, schools and other buildings through their
own broadcasting system, apart from VHF or UHF
broadcasting by terrestrial broadcasters. The
CATV programs may include movies, entertain-
ment and educational programs. (Different from
cable TV.)
CATV can be viewed only within the area in which
the CATV service is offered.
- S-Video
Short for "Super Video." S-Video allows up to 800
lines of horizontal resolution, enabling high-quality
video.
- VHF/UHF
VHF indicates TV channels 2 to 13, and UHF indi-
cates channels 14 through 69.
- Channel Fine Tuning
This feature allows the viewer to fine-tune the TV
channel to obtain the best viewing conditions. The
Samsung LCD TV has both automatic and manual
channel fine-tuning features to enable the viewer
to adjust their desired settings.
- External Device Input
External device input refers to video input from
such external video devices as VCRs, camcorders
and DVD players, separate from a TV broadcast.
14-3
14 Reference Infomation
14-2 Pin Assignments
14-2-1 DVI-D
Sync
Type 24P DVI-D
Pin No.
1 Rx2- 13 NC
2 Rx2+ 14 DDC Input power (+5V)
3 GND 15 IDENT-DVI
4 NC 16 Output Signal (HDCP Control)
5 NC 17 Rx0-
6 DDC - SCL 18 Rx0+
7 DDC - SDA 19 GND
8 NC 20 NC
9 Rx1- 21 NC
10 Rx1+ 22 GND
11 GND 23 RxC+
12 NC 24 RxC-
Figure 1.
14-4
14 Reference Infomation
14-2-2 Component 14-2-3 S-Video
Y Pin Separate
RCA Green
GND 1 GND
2 Y
Pb (Cb) 3 C
RCA Blue
4 GND
GND
5 GND
Pr (Cr)
RCA Red
GND
Audio L
RCA White 14-2-5 D-SUB
GND
Pin Separate
Audio R
RCA Red 1 Red
GND
2 Green
3 Blue
4 GND
5 GND
14-2-4 A/V 6 GND Red
7 GND Green
RCA Yellow CVBS 8 GND Blue
9 DDC Input power(+5V)
Audio L 10 IDENT PC
RCA White 11 GND
GND
12 DDC Data(SDA)
Audio R 13 H SYNC
RCA Red 14 V SYNC
GND 15 DDC Clock(SCL)
14-2-6 PC Display mode
Both screen position and size will vary depending on the type of PC monitor and its resolution.
The resolutions in the table are recommended. (All resolutions between the supported limits are supported)
Mode Resolution Horizontal Vertical Pixel Clock Sync Polarity
Frequency (kHz) Frequency (Hz) Frequency (MHz) (H/V)
IBM 640 x 480 31.469 59.940 25.175 -/-
720 x 400 31.469 70.087 28.322 -/+
VESA 640 x 480 37.861 72.809 31.500 -/-
640 x 480 37.500 75.000 31.500 -/-
800 x 600 37.879 60.317 40.000 + /+
800 x 600 48.077 72.188 50.000 + /+
800 x 600 46.875 75.000 49.500 + /+
1024 x 768 48.364 60.000 65.000 -/-
1024 x 768 56.476 70.069 75.000 -/-
1024 x 768 60.023 75.029 78.750 + /+
1360 x 768 47.712 60.015 85.800 + /+
- The interlace mode is not supported.
- The set might operate abnormally if a non-standard video format is selected.
- DVI dose not support PC function.
14-5
14 Reference Infomation
14-2-7 Scart 1
Pin Signal Pin Signal
1 Audio output R 12 NC
2 Audio input R 13 Video GND (RGB red)
3 Audio output L 14 GND
4 Audio common GND 15 RGB red input
5 Video GND (RGB blue) 16 Fast Blanking signal (RGB switching)
6 Audio input L 17 Video output GND
7 RGB blue input 18 Video input GND
8 Switching voltage 19 Video output (CVBS out)
9 Video GND (RGB green) 20 Video input (CVBS in)
10 NC 21 Common GND
11 RGB green input
14-2-8 Scart 2
Pin Signal Pin Signal
1 Audio output R 12 NC
2 Audio input R 13 Video GND (RGB red)
3 Audio output L 14 GND
4 Audio common GND 15 RGB red input
5 Video GND (RGB blue) 16 NC
6 Audio input L 17 Video output GND
7 RGB blue input 18 Video input GND
8 Switching voltage 19 Video output (CVBS out)
9 Video GND (RGB green) 20 Video input (CVBS in)
10 NC 21 Common GND
11 RGB green input
14-6
14 Reference Infomation
14-3 Timing Chart
This section of the service manual describes the timing that the computer industry recognizes as standard for computer-
generated video signals.
14-3-1 LCD Panel Mode1 mode
14-7
14 Reference Infomation
14-3-2 Supported Modes (1)
14-8
14 Reference Infomation
14-3-3 Supported Modes (2)
14-9
14 Reference Infomation
14-3-4 Supported Modes (3)
14-10
14 Reference Infomation
14-4 Panel Description
Maker VENDOR P/N PANEL_CODE PANEL_ABB STICKER_CODE Remarks
SEC LT140X1-002 BN07-00004A SA BN68-00239H -
SEC LT150XS-L01 BN07-00009A SB -
SEC LT150XS-L01-B BN07-00022A SC -
SEC LTM150XS-L02 BN07-00005A SD -
SEC LT181E2-132 BN07-00001A SE -
SEC LT150XS-T01 BN07-00010A SF -
SEC LTM181E3-132 BN07-00019A SG -
SEC LT170E2-131 BN07-10001D SH -
SEC LT181E2-131 BN07-10001E SJ -
SEC LTM170E4-L01 BN07-00018A SK -
SEC LTM240W1-L01 BN07-00015A SL -
SEC LTM213U3-L01 BN07-00016A SM -
SEC LTM150XH-L01 BN07-00026A SN
SEC LTM150XH-L03 BN07-00027A SP -
SEC LTM150XS-L01 BN07-00032A SQ DELL(ZPD)
SEC LTM181E4-L01 BN07-00034A SR PVA
SEC LTM170EH-L01 BN07-00036A SS TN
SEC LTM170E5-L01 BN07-00037A SU PVA
SEC LTM150XH-L11 BN07-00041A SV -
SEC LTM213U4-L01 BN07-00039A SW PVA
SEC LTM150XH-L01(ZPD) BN07-00045A SX ZPD
SEC LTM150XH-L04 BN07-00046A SY New panel with high brightness
SEC LTM170W1-L01 BN07-00047A SZ Panel for TV
SEC LTM150XH-L06 BN07-00053A EA Panel for TV/ High luminance for 450cd _ SONY&EOS Team Panel for TV
SEC LTM153W1-L01 BN07-00054A EB Use NIKE MODEL
SEC LTM170EH-L05 BN07-00055A EC Panel EOS proj. for high brightness of 17" EH-L05
SEC LTM170E5-L03 BN07-00056A ED Dell 1702FP pro. E4. EH mechanical Compatible
SEC LTM190E1-L01 BN07-00057A EE DELL 1900 FP
SEC LTM181E5-L01 BN07-00061A EF 18" narrow bezel GH18PS
SEC LTM150XP-L01 BN07-00065A EG AMLCD PVA PANEL
SEC LTM240W1-L02 BN07-00062A EH Panel for 15" Wide TV
SEC LTM170EU-L01 BN07-00071A EJ Slim design, TN
SEC LTM170E5-L04 BN07-00072A EK E5-L04 6 bits FRC... for IBM
SEC LTA220W1-L01 BN07-00074A EL Panel for 22" TV
SEC LTM170E6-L02 BN07-00075A EM AMLCD Narrow & slim design 17" PVA mode
SEC LTM170W1-L01 BN07-00082A EN LTM170W1-L01 ZPD panel
SEC LTM170EH-L01 BN07-00080A EP LTM170EH-L01 ZPD panel
SEC LTM170E5-L01 BN07-00081A EQ LTM170E5-L01 ZPD panel
SEC LTM170EH-L05 BN07-00083A ER LTM170EH-L05 ZPD panel
SEC LTM170E5-L03 BN07-00084A ES LTM170E5-L03 ZPD panel
SEC LTM170EU-L01 BN07-00085A ET LTM170EU-L01 ZPD panel
SEC LTM170E5-L04 BN07-00086A EU LTM170E5-L04 ZPD panel
SEC LTM170E6-L02 BN07-00087A EV LTM170E6-L02 ZPD panel
SEC LTM150XH-L06 BN07-00091A EW Color coordinates change for LCD TV
SEC LTM153W1-L01 BN07-00092A EX AMLCD WIDE 15",9/10
SEC LTM170W1-L01 BN07-00100A EY Color Coordinates change code management
SEC LTM170EH-L05 BN07-00097A EZ LTM170E5-L05 Color Coordinates Change Panel Code
14-11
14 Reference Infomation
Maker VENDOR P/N PANEL_CODE PANEL_ABB STICKER_CODE Remarks
SEC LTA400W1-L01 BN07-00109A S1 PANEL of AMLCD 40" TV
SEC LTM153W1-L01 BN07-00110A S2 Color coordinates change 0.280/0.290, 10000k & ZPD Panel
SEC LTM150XH-L06 BN07-00111A S3 Color coordinates change 0.280/0.290, 10000k & ZPD Panel
SEC LTM170W1-L01 BN07-00112A S4 Color coordinates change 0.280/0.290, 10000k & ZPD Panel
SEC LTM170EH-L05 BN07-00113A S5 Color coordinates change 0.280/0.290, 10000k & ZPD Panel
SEC LTM220W1-L01 BN07-00114A S6 ZPD Panel for AMLCD 22" TV
SEC LTM150XH-L06 BN07-00117A S7 ZPD Panel code
SEC LTM153W1-L01 BN07-00118A S8 ZPD Panel code
SEC LTM170WP-L01 BN07-00119A S9 PVA Panel for NIKE
SEC LTM213U4-L01 BN07-00039A E1 21.3" NARROW
SEC LTA260W1-L01 BN07-00121A E2 VENUS
SEC LTA220W1-L01 BN07-00074B E3 "Panel B-level panel code for 22"" TV Panel "
SEC LTA320W1-L01 BN07-00108A E4 "Panel for AMLCD 32"" TV"
SEC LTM213U4-L01 BN07-00124A E5 NARROW BEZEL 21 " PANEL
SEC LTM170E6-L04 BN07-00129A E6 "HIGHLAND 17"" LOW PANEL (Panel only for TCO03)"
SEC LTM190E1-L01 BN07-00088A E7 LTM190E1-L01 ZPD panel
SEC M150X4-L06 BN07-00137A E8 15" Narrow & Slim panel
SEC LTA170V1 BN07-00139A E9 "17"" Panel for Muse 4:3 VGA TV"
SEC LTM190E1-L02 BN07-00128A E10 "New Panel from AMLCDl, Specification : 6bit Driver IC"
SEC LTM170EX-L01 BN07-00143A E11 "Development new Panel from AMLCD"
SEC LTM170E8-L01 BN07-00144A E12 "Development new Panel from AMLCD"
SEC LTM170E6-L04 BN07-00129B E13 "ZPD panel for AMLCD (Panel only for TCO03)"
SEC LTA320W1-L02 BN07-00108B E14 "Creat B-level Panel code for AMLCD 32"" TV"
SEC LTM190E1-L03 BN07-00151A E15 "Development new 19"" Panel form AMLCD (Panel only for TCO03)"
SEC LTM240W1-L03 BN07-00134A E16 "AMLCD 24"" panel development"
SEC LTM190E1-L02 BN07-00128B E17 "New Panel from AMLCD, Specification : 6bit Driver IC(ZPD)"
SEC LTM190E4-L01 BN07-00145A E18 "AMLCD 24"" new panel development"
SEC LTM170E8-L01 BN07-00158A E19 "ZPD code derivation"
SEC LTM170EX-L01 BN07-00159A E20 "ZPD code derivation"
SEC LTM190E1-L03 BN07-00151B E21 "Creat new panel code for AMLCD 19"" (Panel only for TCO03)"
SEC LTA460H1-L01 BN07-00157A E22 "creat panel code for AMLCD 46"" TV "
SEC LTM170EU-L11 BN07-00160A E23 "creat new panel code for AMLCD 17"" (Panel only for TCO03)"
SEC LTM240W1-L03 BN07-00134B E24 "24"" panel ZPD code derivation"
SEC LTM190E4-L01 BN07-00145B E25 "AMLCD 19"" ZPD Panel code derivation"
SEC LTM240W1-L03 BN07-00134B E26 "24"" panel ZPD code derivation"
SEC LTM150XO-L01 BN07-00164A E27 "AMLCD 15"" XO-L01 new panel development"
SEC LTM150XO-L01 BN07-00164B E28 "AMLCD 15"" XO-L01 ZPD code derivation"
SEC LTM170EU-L11 BN07-00160B E29 "AMLCD 17"" NEW panel code derivation"
SEC LTA320W2-L01 BN07-00172A SPZ AMLCD 32" NEW panel
SEC LTM213U4-L01 BN07-00124B SPZ 21.3" Narrow PANEL ZPD Panel derivation
SEC LTM170EU-L11 BN07-00189A STH AMLCD EU-L11 Pb free panel code derivation
SEC LTM170EU-L11 BN07-00189B STZ AMLCD EU-L11 Pb free panel ZPD code derivation
SEC LTM240W1-L04 BN07-00188A SPH 24" A-DCC new panel development
SEC LTM240W1-L04 BN07-00188B SPZ 24" A-DCC panel ZPD code derivation
SEC LTM190EX-L01 BN07-00191A STH AMLCD 19" TN new Panel
SEC LTM190EX-L02 BN07-00191B STZ AMLCD 19" TN new Panel ZPD derivation
SEC LTA230W1-L02 BN07-00184A SPZ AMLCD 23" 16:9 new Panel
14-12
14 Reference Infomation
Maker VENDOR P/N PANEL_CODE PANEL_ABB STICKER_CODE Remarks
SEC LTA260W2-L01 BN07-00185A SPZ AMLCD 26" 16:9 new Panel
SEC LTM240M1-L01 BN07-00195A SPH 24" panel with high brightness deveiopment
SEC LTA400W2-L01 BN07-00186A SPZ AMLCD 40" 16:9 new Panel
SEC LTM150XO-L01 BN07-00197A STH AMLCD 15" XO-L01 Pb free panel code
SEC LTM150XO-L01 BN07-00197B STZ AMLCD 15" XO-L01 Pb free panel ZPD code
SEC LTM170EU-L21 BN07-00202A STZ AMLCD EU-L21 ZPD new code derivation
SEC LTA460W2-L03 BN07-00187A SPZ BEETOVEN 46"ZPD new panel
SEC LTM240M1-L01 BN07-00195B SPZ 24" igh brightness panel ZPD code derivation
SEC M170EX-L21 BN07-00206A STZ AMLCD LTM170EX-L21 ZPD new code derivation
SEC LTA460H3-L01 BN07-00200A SPZ AMLCD 46" LED BLU panel
SEC LTM170EU-L15 BN07-00214A STZ AMLCD EU-L15 TV high brightness ZPD new code derivation
SEC LTM170E8-L21 BN07-00218A SPZ AMLCD LTM170E8-L21 PVA ZPD new code derivation
SEC LTM190EX-L21 BN07-00222A STZ DISPLAY LCD
SEC LTM201U1-L01 BN07-00190B SPZ AMLCD 20.1" Normal panel ZPD code derivation
SEC LTM190E4-L21 BN07-00223A SPZ HAYDN 17" PZD code PANEL derivation
SEC LTA570H1-L01 BN07-00196A SPZ AMLCD 57" new panel development
SEC LTM150XO-L21 BN07-00229A STZ AMLCD 15" XO-L21 8ms panel code
SEC LTA260W2-L11 BN07-00239A SPZ AMLCD 26" 16:9 7Line new Panel
SEC LTA400WS-LH1 BN07-00245A SPZ AMLCD 40" 16:9 SPVA 90% new Panel
SEC LTM213U6-L01 BN07-00231A SPZ AMLCD 21.3" PVA new Panel Code
SEC LTA320WS-LH2 BN07-00244A SPZ AMLCD 32" 16:9 SPVA 90% new Panel
SEC LTA400WS-LH1 BN07-00245A SPZ AMLCD 40" 16:9 SPVA 90% new Panel
CPT CLAA150XG09 BN07-00141A PA "CPT 15"" Monitor new panel development"
CPT CLAA170EA02 BN07-00148A PB "17"" CPT NEW development panel"
CPT CLAA170EA02 BN07-00148B PC "17"" CPT ZPD panel code derivation"
CPT CLAA150XG09 BN07-00141B PTZ "CPT 15"" panel ZPD code derivation (GOYA-PJT)"
CPT CLAA150XP01 BN07-00173A PTH CPT 15" PSWG code derivation
CPT CLAA150XP01 BN07-00173B PTZ CPT 15" PSWG panel ZPD code
CPT CLAA170EA07 BN07-00174A PTH "CPT 17"" PSWG panel code derivation
CPT CLAA170EA07 BN07-00174B PTZ CPT 17"""" PSWG type new Panel code"""
CPT CLAA170EA07 BN07-00174B PTZ CPT 17" PSWG type new Panel code
CPT CLAA170EA07Q BN07-00220A PTZ CPT 17" PSWG R/T 8msec code derivation
CPT CLAA170EA07Q BN07-00220B PTH CPT 17" PSWG R/T 8msec HPD code derivation
CPT CLAA150XP01F BN07-00236A PTZ CPT 15" PSWG panel ZPD & Lead free code derivation
TOSHIBA LTM15C419(A) BN07-00002A TA -
TOSHIBA LTM15C423(B) BN07-00006A TB -
TOSHIBA LTM18C161 BN07-00008A TC -
TOSHIBA LTM15C443 BN07-00031A TD -
TOSHIBA LTM15C458 BN07-00043A TE -
TOSHIBA LTM15C458S BN07-00077A TF "TSB 15"" high brightness Panel"
TOSHIBA LTM15C458 BN07-00078A TG Toshiba ZPD panel
TOSHIBA LTM15C458S BN07-00099A TH TSB LTM15C458S ( ZPD )
HANNSTAR HSD150MX41A(A) BN07-00020A NA "TTL type"
HANNSTAR HSD150MX12 BN07-00030A NB "TTL type"
HANNSTAR HSD170ME13 BN07-00180A NTH Hannstar 17" TN new panel development
HANNSTAR HSD170ME13 BN07-00180B NTZ Hannstar 17" TN new panel development ZPD code derivation
HANNSTAR HSD190ME12 BN07-00210A NTZ Hannstar 19" TN new panel development
14-13
14 Reference Infomation
Maker VENDOR P/N PANEL_CODE PANEL_ABB STICKER_CODE Remarks
HANNSTAR HSD150MX17-A BN07-00226A NTZ Hannstar 15" slim panel ZPD code derivation
TORISAN TM150XG-22L03(A) BN07-00021A RA -
TORISAN TM150XG-26L06 BN07-00042A RB -
TORISAN TM181SX-76N01 BN07-00048A RC -
TORISAN TM150XG-26L06 BN07-00059A RD 15" XGA TN MODE(ZPD)
TORISAN TM290WX-71N31 BN07-00063A RE "RS24NS (TORISAN 29"" NEW PANEL)"
TORISAN TM396WX-71N31 BN07-00064A RF "RS24NS (TORISAN 40"" NEW PANEL)"
TORISAN TM150XG-26L09 BN07-00073A RG "Panel for 15"" TV"
TORISAN TM150XG-26L10 BN07-00089A RH "L10(change except D/IC) ZPD"
TORISAN TM150XG-26L10 BN07-00090A RJ L10 NORMAL
TORISAN TM190SX-70N01 BN07-00098A RK Torisan 19" Panel
TORISAN TM181SX-76N01 BN07-00106A RL ZPD Panel code
TORISAN TM190SX-70N01 BN07-00107A RM ZPD Panel code
TORISAN TM290WX-71N31 BN07-00115A RN "Color Coordinates change panel for TORISAN 29"" TV"
TORISAN TM396WX-71N31 BN07-00116A RP,Q "Color Coordinates change panel for TORISAN 40"" TV"
TORISAN TM22OWX-71N31 BN07-00125A RR "Development TORISAN 22"" TV PANEL (ZPD)"
TORISAN TM22OWX-71N31 BN07-00127A RS "Development TORISAN 22"" TV PANEL (HPD)"
TORISAN TM396WX-71N32A BN07-00150A RT 120V inverter Exclusive panel
TORISAN TM190SX-70N02 BN07-00154A RMH Torisan 6bit panel code Derivation
TORISAN TM190SX-70N02 BN07-00154B RMZ Torisan 6bit panel code Derivation
TORISAN TM150XG-A01 BN07-00162A RTH Torisan 15" Narrow & Slim panel development
TORISAN TM150XG-A01 BN07-00162B RTZ Torisan 15" N&S panel ZPD code Derivation
SHARP LQ181E1DG11(A) BN07-10001C PA -
SHARP LQ150X1LW71 BN07-00067A PB SHARP 15" PVA PANEL
SHARP LQ370T3LZ41 BN07-00216A FAZ Rome2
HITACHI TX38D12VC0CAA(A) BN07-00003A HA -
HITACHI TX43DVCOCAB BN07-00060A HB 17" SXGA PVA MODE
HITACHI TX43D15VC0CAB BN07-00101A HC ZPD Panel
HITACHI TX51D11VC0CAB BN07-00122A HD 20.1" NARROW
HITACHI TX54D11VC0CAB BN07-00123A HE 21.3" NARROW
HITACHI TX80D12VC0CAB BN07-00169A HIZ "Development new panel for Hitachi 32"" TV (ZPD)"
HITACHI TX54D11VC0CAB BN07-00123B HIZ Hitachi 21.3"ZPD panel
IBM ITSX94S BN07-00017A IA -
UNIPAC UM170E0 BN07-00028A UA Loaded by cisdba
HYUNDAI HT15X13 BN07-00035A DA -
HYUNDAI HT17E11-200 BN07-00049A DB TN MODE
HYUNDAI HT17E11-300 BN07-00093A DC HT17E11-300 ZPD panel
HYUNDAI HT17E11-400 BN07-00094A DD HT17E11-400 normal panel
HYUNDAI HT17E11-400 BN07-00095A DE HT17E11-400 ZPD panel code
HYUNDAI HT17E12 BN07-00096A DF HT17E12 ( Narow & slim Design )
HYUNDAI HT17E12 BN07-00105A DG ZPD Panel code
HYUNDAI HT15X15-D00 BN07-00146A DH "Development for Ares 15"" Hydis TV"
HYUNDAI HT15X15-D01 BN07-00146B DJ "Derivation panel HPD for Ares 15"" Hydis TV "
HYUNDAI HT17E13-100 BN07-00167A DTH "PINEHURST-2(IBM) PJT 17"" HYDIS PANEL Derivation"
HYUNDAI HT17E13-100 BN07-00167B DTZ "PINEHURST-2(IBM) Hydis 17"" ZPD code Derivation"
ACER L170E3 BN07-00044A AA TN(ADT)
ACER M170EN05 BN07-00076A AB AU 17" Panel ( Narrow & slim design )
14-14
14 Reference Infomation
Maker VENDOR P/N PANEL_CODE PANEL_ABB STICKER_CODE Remarks
ACER M170EN05 BN07-00102A AC ZPD Panel code
ACER M190EN02 BN07-00170A AMH "AU Monitor 19"" new panel development (P19-1S)"
ACER M190EN02 BN07-00170B AMZ "AU 19"" ZPD code derivation (ZPD)"
ACER M170EN06 BN07-00171A ATH "AU Monitor 17"" New panel development "
ACER T260XW01 BN07-00163A AMZ "AU 26"" new panel development (NF26EO)"
ACER A201SN01 BN07-00177A ATZ "AU TV panel 20.1"" TN SVGA new panel development"
ACER M170EN06 BN07-00171B ATZ AU Monitor 17" ZPD code derivation
ACER T315XW01 BN07-00194A AMZ AU 32" new
ACER M170EG01 BN07-00192A ATH AU TN PSWG type new Panel code
ACER M170EG01 BN07-00192B ATZ AU TN PSWG type NEW panel code derivation
ACER M190EN04 BN07-00203A ATH AU Monitor 19" ZPD new Panel code
ACER T260XW02 BN07-00208A AMZ AUO 26" ZPD panel
ACER M170EG01 V8 BN07-00221A ATZ AU TN PSWG type new Panel (8msec) ZPD code derivation
ACER T260XW02 BN07-00233A AMZ AUO 26" Panel new (Cosmetic spec down grade)
ACER T315XW01 BN07-00234A AMZ AUO 32" Grade new (Cosmetic spec down grade)
ACER M190EN03 BN07-00224A AMZ AU Monitor 19" MVA new code derivation
ACER T315XW01 BN07-00237A AMZ LCD TV VE project new
ACER T315XW01 BN07-00238A AMZ LCD TV VE project new
ACER M201UN02 V3 BN07-00168A AMZ
CHIMEI M170E3-LO1 BN07-00050A CA TN PANEL
CHIMEI M150X3-L01 BN07-00051A CB COMPATIBLE
CHIMEI M170E4-L01 BN07-00052A CC MVA PANEL
CHIMEI M150X2-L01 BN07-00066A CD CHIME 15"I PVA PANEL
CHIMEI M150X3-L01 BN07-00079A CE Chimei ZPD panel
CHIMEI M170E3-L01 BN07-00103A CF ZPD Panel code
CHIMEI M170E4-L01 BN07-00104A CG ZPD Panel code
CHIMEI V296W1-L01 BN07-00120A CH MVA
CHIMEI M170E6-L02 BN07-00126A CJ HIGHLAND 17" LOW PANEL
CHIMEI M190E2-L01 BN07-00131A CK GH19AS,BS CHIMEI PANEL
CHIMEI M150X4-L06 BN07-00137A CL 15" Narrow & Slim panel
CHIMEI M170E6-L01 BN07-00133A CM "2003-03-11 vendor change"
CHIMEI M170E6-L01 BN07-00133B CN ZPD derivation panel
CHIMEI V201V1-T01 BN07-00135A CP CHIMEI 20.1" panel development
CHIMEI M170E6-L02 BN07-00126B CQ "HIGHLAND 17"" LOW PANEL ZPD derivation panel"
CHIMEI M170E6-L05 BN07-00152A CR "CMO 17"" new panel development code"
CHIMEI M170E6-L05 BN07-00152B CS "CMO 17"" ZPD panel code derivation"
CHIMEI M150X4-L06 BN07-00137B CT Chimei 15" Narrow & Slim panel ZPD derivation
CHIMEI M170E5-L05 BN07-00165A CTH CMO 17" new panel development code (GOYA2-PJT)
CHIMEI M170E5-L05 BN07-00165B CTZ CMO 17" ZPD panel(GOYA2-PJT)
CHIMEI V230W1-L02 BN07-00209A CMZ CMO 23" development
CHIMEI V320B1-L01 BN07-00207A CMZ CMO 32" development
CHIMEI V270W1-L01 BN07-00136A CMZ CHI MEI 27" panel development
NEC SVA150XG04TB BN07-00225A BTZ SVA NEC 15" panel ZPD code
14-15
14 Reference Infomation
Memo
14-16
◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
