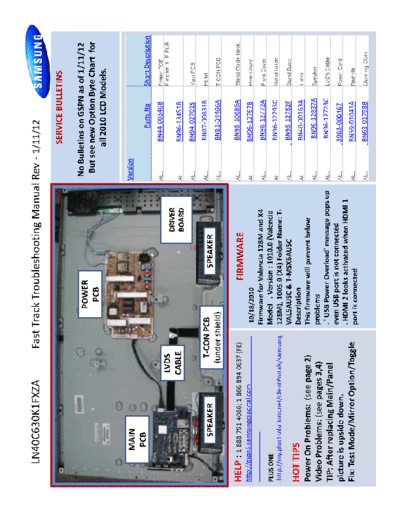

Image preview - the first page of the document
![Samsung_LN40C630K1FXZA_fast_track_guide_[SM]](/pics/5c26d832c4767.gif)
>> Download Samsung_LN40C630K1FXZA_fast_track_guide_[SM] documenatation <<
Text preview - extract from the document
LN40C630K1FXZA Fast Track Troubleshooting Manual Rev - 1/11/12
SERVICE BULLETINS
POWER No Bulletins on GSPN as of 1/11/12
PCB But see new Option Byte Chart for
all 2010 LCD Models.
MAIN
Insert Photo of TV Board Layout Version
Include Board Assy names (as
PCB appearing in parts) and any
Parts No Short Description
special labels/items (i.e. Plasma voltage label) ALL BN44-00340B Power PCB
LVDS DRIVER
Function & IR PCB
CABLE BOARD ALL BN96-13451B
ALL BN94-02701S Main PCB
T-CON PCB ALL BN07-00831B Panel
SPEAKER SPEAKER
(under shield) ALL BN81-04466A T-CON PCB
HELP : 1-888-751-4086; 1-866-894-0637 (FE) FIRMWARE ALL BN96-10689A Stand Guide Neck
http://gspn3.samsungcsportal.com 10/18/2010 ALL BN96-12767B Rear Cover
Firmware for Valencia 128M and X4 ALL BN96-12772A Front Cover
PLUS ONE Model . Version : 1010.0 (Valencia
ALL BN96-12795C Stand Guide
http://my.plus1solutions.net/clientPortals/samsung 128M), 1005.0 (X4) Folder Name: T-
VAL5AUSC & T-MSX6AUSC ALL BN96-12762F Stand Base
HOT TIPS Description ALL BN40-00163A Tuner
Power On Problems: (see page 2) This firmware will prevent below
BN96-12837A
Video Problems: (see pages 3,4) problems ALL Speaker
TIP: After replacing Main/Panel . ' USB Power Overload' message pops up ALL BN96-12723C LVDS Cable
even USB port is not connected 3903-000467
picture is upside down. . HDMI 2 looks activated when HDMI 1
ALL Power Cord
Fix: Test Mode/Mirror Option/Toggle port is connected ALL BN59-01041A Remote
1
ALL BN63-01798B Cleaning Cloth
LN40C630K1FXZA Fast Track Troubleshooting Manual
CN201
SW-P
Wiring Diagram
Include Connector Numbers , References, and
Locations.
LN46C670M1FXZA
Power On Sequence (approximate Voltages)
)
1. Standby Voltages: CN201-4 (5V) To Force Backlight On
