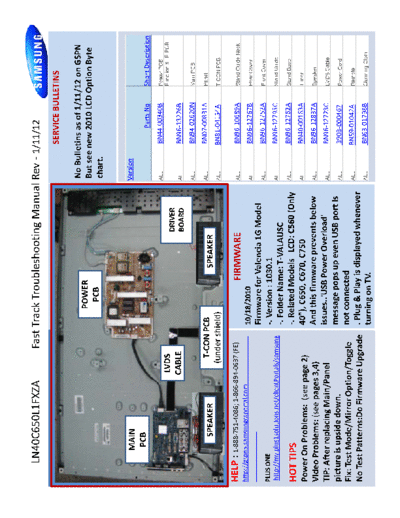

Image preview - the first page of the document
![Samsung_LN40C650L1FXZA_fast_track_guide_[SM]](/pics/5c26d83a98c2b.gif)
>> Download Samsung_LN40C650L1FXZA_fast_track_guide_[SM] documenatation <<
Text preview - extract from the document
LN40C650L1FXZA Fast Track Troubleshooting Manual Rev - 1/11/12
SERVICE BULLETINS
No Bulletins as of 1/11/12 on GSPN
POWER But see new 2010 LCD Option Byte
PCB chart.
MAIN
Insert Photo of TV Board Layout Version
Include Board Assy names (as
PCB appearing in parts) and any
Parts No Short Description
special labels/items (i.e. Plasma voltage label) ALL BN44-00340B Power PCB
LVDS DRIVER
Function & IR PCB
CABLE BOARD ALL BN96-13226B
ALL BN94-02620N Main PCB
T-CON PCB ALL BN07-00831A Panel
SPEAKER SPEAKER
(under shield) ALL BN81-04154A T-CON PCB
HELP : 1-888-751-4086; 1-866-894-0637 (FE) FIRMWARE ALL BN96-10689A Stand Guide Neck
http://gspn3.samsungcsportal.com 10/18/2010 ALL BN96-12767B Rear Cover
Firmware for Valencia 1G Model ALL BN96-12752A Front Cover
PLUS ONE -. Version : 1030.1
http://my.plus1solutions.net/clientPortals/samsung BN96-12795C
-. Folder Name: T-VALAUSC
ALL Stand Guide
BN96-12762A
HOT TIPS -. Related Models LCD: C560 (Only ALL Stand Base
40"), C650, C670, C750 BN40-00163A
Power On Problems: (see page 2) ALL Tuner
Video Problems: (see pages 3,4) And this firmware prevents below ALL BN96-12837A Speaker
TIP: After replacing Main/Panel issues..'USB Power Overload' ALL BN96-12723C LVDS Cable
picture is upside down. message pops up even USB port is ALL 3903-000467 Power Cord
Fix: Test Mode/Mirror Option/Toggle not connected
ALL BN59-01042A Remote
No Test Patterns:Do Firmware Upgrade . Plug & Play is displayed whenever 1
BN63-01798B
turning on TV. ALL Cleaning Cloth
LN32C350D1DXZA Fast Track Troubleshooting Manual
CN201
SW-P
Wiring Diagram
Include Connector Numbers , References, and
Locations.
Power On Sequence (approximate Voltages)
)
1. Standby Voltages: CN201-4 (5V) To Force Backlight On
