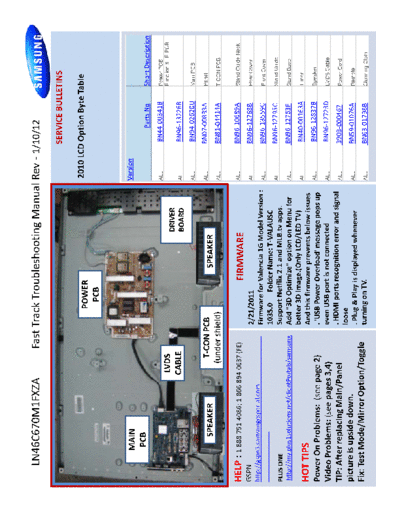

Image preview - the first page of the document
![Samsung_LN46C670M1FXZ_fast_track_guide_[SM]](/pics/5c26d88f21dd9.gif)
>> Download Samsung_LN46C670M1FXZ_fast_track_guide_[SM] documenatation <<
Text preview - extract from the document
LN46C670M1FXZA Fast Track Troubleshooting Manual Rev - 1/10/12
SERVICE BULLETINS
POWER 2010 LCD Option Byte Table
PCB
MAIN
Insert Photo of TV Board Layout Version
Include Board Assy names (as
PCB appearing in parts) and any
Parts No Short Description
special labels/items (i.e. Plasma voltage label) ALL BN44-00341B Power PCB
LVDS DRIVER
Function & IR PCB
CABLE BOARD ALL BN96-13226B
ALL BN94-02620U Main PCB
T-CON PCB ALL BN07-00833A Panel
SPEAKER SPEAKER
(under shield) ALL BN81-04414A T-CON PCB
HELP : 1-888-751-4086; 1-866-894-0637 (FE) FIRMWARE ALL BN96-10689A Stand Guide Neck
GSPN 2/21/2011 ALL BN96-12768B Rear Cover
http://gspn3.samsungcsportal.com Firmware for Valencia 1G Model Version : ALL BN96-13559C Front Cover
1035.0 Folder Name: T-VALAUSC
ALL BN96-12795C Stand Guide
PLUS ONE Support Netflix 2.1 and MLB.tv apps.
http://my.plus1solutions.net/clientPortals/samsung Add "3D Optimize" option on Menu for ALL BN96-12763F Stand Base
better 3D image.(Only LCD/LED TV) BN40-00163A
HOT TIPS And this firmware prevents below issues
ALL Tuner
BN96-12837B
Power On Problems: (see page 2) . 'USB Power Overload' message pops up ALL Speaker
Video Problems: (see pages 3,4) even USB port is not connected ALL BN96-12723D LVDS Cable
TIP: After replacing Main/Panel . HDMI ports recognition error and signal ALL 3903-000467 Power Cord
loose
picture is upside down. . Plug & Play is displayed whenever ALL BN59-01076A Remote
Fix: Test Mode/Mirror Option/Toggle turning on TV. ALL BN63-01798B Cleaning Cloth
1
LN46C670M1FXZA Fast Track Troubleshooting Manual
CN201
SW-P
Wiring Diagram
Include Connector Numbers , References, and
Locations.
LN46C670M1FXZA
Power On Sequence (approximate Voltages)
)
1. Standby Voltages: CN201-4 (5V) To Force Backlight On
