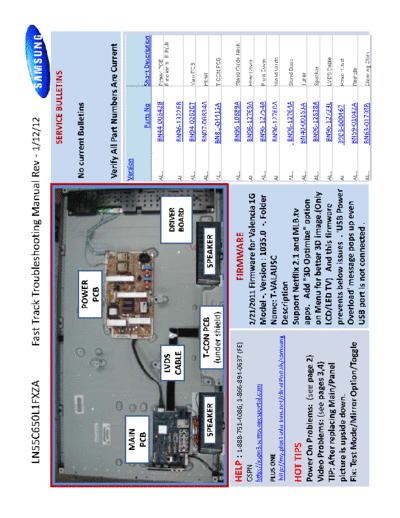

Image preview - the first page of the document
![Samsung_LN55C650L1FXZA_fast_track_guide_[SM]](/pics/5c26d8daa6ad5.gif)
>> Download Samsung_LN55C650L1FXZA_fast_track_guide_[SM] documenatation <<
Text preview - extract from the document
LN55C650L1FXZA Fast Track Troubleshooting Manual Rev - 1/12/12
SERVICE BULLETINS
POWER No current Bulletins
PCB
Verify All Part Numbers Are Current
MAIN
Insert Photo of TV Board Layout Version
Include Board Assy names (as
PCB appearing in parts) and any
Parts No Short Description
special labels/items (i.e. Plasma voltage label) ALL BN44-00342B Power PCB
LVDS DRIVER
Function & IR PCB
CABLE BOARD ALL BN96-13226B
ALL BN94-02620T Main PCB
T-CON PCB ALL BN07-00834A Panel
SPEAKER SPEAKER
(under shield) ALL BN81-04415A T-CON PCB
HELP : 1-888-751-4086; 1-866-894-0637 (FE) FIRMWARE ALL BN96-10689A Stand Guide Neck
GSPN 2/21/2011 Firmware for Valencia 1G ALL BN96-12769A Rear Cover
http://gspn3.samsungcsportal.com
Model -. Version : 1035.0 -. Folder ALL BN96-12754A Front Cover
PLUS ONE Name: T-VALAUSC ALL BN96-12760A Stand Guide
http://my.plus1solutions.net/clientPortals/samsung
Description BN96-12764A
ALL Stand Base
HOT TIPS Support Netflix 2.1 and MLB.tv
BN40-00163A
Power On Problems: (see page 2) apps. Add "3D Optimize" option ALL Tuner
on Menu for better 3D image.(Only BN96-12838A
Video Problems: (see pages 3,4)
ALL Speaker
TIP: After replacing Main/Panel LCD/LED TV) And this firmware ALL BN96-12723E LVDS Cable
picture is upside down. prevents below issues . 'USB Power ALL 3903-000467 Power Cord
Fix: Test Mode/Mirror Option/Toggle Overload' message pops up even ALL BN59-01042A Remote
USB port is not connected . 1
ALL BN63-01798B Cleaning Cloth
LN55C650L1FXZA Fast Track Troubleshooting Manual
CN201
Wiring Diagram
Include Connector Numbers , References, and
Locations.
Power On Sequence (approximate Voltages)
)
1. Standby Voltages: CN201-4 (5V) To Force Backlight On
2. Power On CN201-2 (0 ◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
