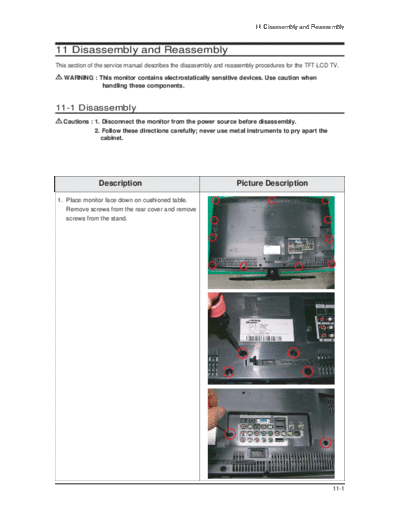

Image preview - the first page of the document



>> Download Samsung_LNT3242H_LNT4042H_LNT4642H_Disassembly & Reassembly_[SM] documenatation <<

Text preview - extract from the document

                                                                          11 Disassembly and Reassembly



11 Disassembly and Reassembly
This section of the service manual describes the disassembly and reassembly procedures for the TFT-LCD TV.

   WARNING : This monitor contains electrostatically sensitive devices. Use caution when
              handling these components.


11-1 Disassembly
   Cautions : 1. Disconnect the monitor from the power source before disassembly.
              2. Follow these directions carefully; never use metal instruments to pry apart the
                cabinet.




                Description                                        Picture Description

1. Place monitor face down on cushioned table.
   Remove screws from the rear cover and remove
   screws from the stand.




                                                                                                       11-1
11 Disassembly and Reassembly


               Description                        Picture Description

2. Lift up the rear cover and remove the stand.




3. Remove Screws from the stand BRKT and lift
   up the stand BRKT.




11-2
                                                  11 Disassembly and Reassembly


              Description                     Picture Description

4. Remove screws from the shield and
  disconnect cable.




5. Remove screws from the boards and remove
   screw from the side connector.




                                                                           11-3
11 Disassembly and Reassembly


              Description                        Picture Description

6. Lift up the speakers and remove screws from
   the panel BRKT.




7. Remove screws and lift up the BRKT.




11-4
                                  11 Disassembly and Reassembly


                Description   Picture Description

8. Lift up the panel.




                                                           11-5
11 Disassembly and Reassembly

11-2 Reassembly
Reassembly procedures are in the reverse order of disassembly procedures.




11-6
