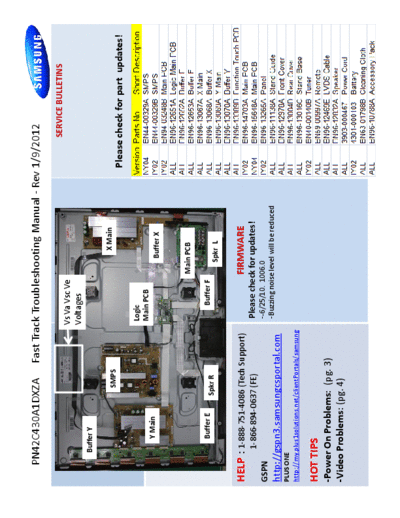

     PN42C430A1DXZA                    Fast Track Troubleshooting Manual - Rev 1/9/2012
                                                                                                   SERVICE BULLETINS
                                                     Vs Va Vsc Ve
                                                     Voltages
         Buffer Y

                                                                           X Main
                               SMPS
                                                                                             Please check for part updates!
                                                      Logic
                                                      Main PCB
              Y Main                                                     Buffer X



                                                                     Main PCB

              Buffer E                                    Buffer F
                            Spkr R                                      Spkr L


HELP : 1-888-751-4086 (Tech Support)                                 FIRMWARE
          1-866-894-0637 (FE)                         Please check for updates!
GSPN                                                  --6/25/10. 1006.0
                                                      -Buzzing noise level will be reduced
http://gspn3.samsungcsportal.com
PLUS ONE
http://my.plus1solutions.net/clientPortals/samsung

HOT TIPS
-Power On Problems: (pg. 3)
-Video Problems: (pg. 4)
                                                                                                                       1
PN42C430A1DXZA          Fast Track Troubleshooting Manual




                 Power On Sequence
                 -STBY 5V (Pin 2 CN801)
                 -PS_ON (approx 3.3V
