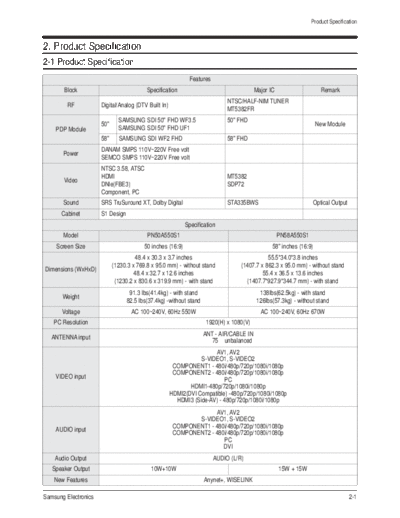

Image preview - the first page of the document
![Samsung_PN50A550_PN58A550_ProductSpecification_[SM]](/pics/5c26d9e7780b9.gif)
>> Download Samsung_PN50A550_PN58A550_ProductSpecification_[SM] documenatation <<
Text preview - extract from the document
Product Specification
2. Product Specification
2-1 Product Specification
Features
Block Specification Major IC Remark
NTSC/HALF-NIM TUNER
RF Digital/Analog (DTV Built In)
MT5382FR
SAMSUNG SDI 50" FHD WF3.5 50" FHD
50" New Module
PDP Module SAMSUNG SDI 50" FHD UF1
58" SAMSUNG SDI WF2 FHD 58" FHD
DANAM SMPS 110V~220V Free volt
Power
SEMCO SMPS 110V~220V Free volt
NTSC 3.58, ATSC
HDMI MT5382
Video
DNIe(FBE3) SDP72
Component, PC
Sound SRS TruSuround XT, Dolby Digital STA335BWS Optical Output
Cabinet S1 Design
Specification
Model PN50A550S1 PN58A550S1
Screen Size 50 inches (16:9) 58" inches (16:9)
48.4 x 30.3 x 3.7 inches 55.5*34.0*3.8 inches
(1230.3 x 769.8 x 95.0 mm) - without stand (1407.7 x 862.3 x 95.0 mm) - without stand
Dimensions (WxHxD)
48.4 x 32.7 x 12.6 inches 55.4 x 36.5 x 13.6 inches
(1230.2 x 830.6 x 319.9 mm) - with stand (1407.7*927.9*344.7 mm) - with stand
91.3 lbs(41.4kg) - with stand 138Ibs(62.5kg) - with stand
Weight
82.5 lbs(37.4kg) -without stand 126Ibs(57.3kg) - without stand
Voltage AC 100~240V, 60Hz 550W AC 100~240V, 60Hz 670W
PC Resolution 1920(H) x 1080(V)
ANT - AIR/CABLE IN
ANTENNA input 75 unbalanced
AV1, AV2
S-VIDEO1, S-VIDEO2
COMPONENT1 - 480i/480p/720p/1080i/1080p
COMPONENT2 - 480i/480p/720p/1080i/1080p
VIDEO input
PC
HDMI1-480p/720p/1080i/1080p
HDMI2(DVI Compatible) -480p/720p/1080i/1080p
HDMI3 (Side-AV) - 480p/720p/1080i/1080p
AV1, AV2
S-VIDEO1, S-VIDEO2
COMPONENT1 - 480i/480p/720p/1080i/1080p
AUDIO input
COMPONENT2 - 480i/480p/720p/1080i/1080p
PC
DVI
Audio Output AUDIO (L/R)
Speaker Output 10W+10W 15W + 15W
New Features Anynet+, WISELINK
Samsung Electronics 2-1
Product Specification
New Features explanation
- WISELINK: This function enables you to view photo (JPEG) and listen to audio files (MP3) saved on a USB Mass
Storage Class (MSC) device.
- Anynet+ : Anynet+ is an AV network system that enables you to control all connected Samsung AV devices with your
Samsung TV's remote.
To directly connect to TV
Connect the [HDMI 1], [HDMI 2]
TV or [HDMI 3] jack on the TV
Anynet + Device 1 Anynet + Device 2 Anynet + Device 3
and the HDMI OUT jack of the
corresponding Anynet + device
using the HDMI cable.
HDMI 1.3 Cable
HDMI 1.3 Cable
HDMI 1.3 Cable
To connect to Home Theater
1. Connect the [HDMI 1],
TV [HDMI 2] or [HDMI 3]
Anynet + Device 1 Anynet + Device 2 jack on the TV and the
HDMI OUT jack of the
corresponding Anynet +
device using the HDMI
cable.
2. Connect the HDMI IN jack
HDMI 1.3 Cable
HDMI 1.3 Cable of the home theater and
Home Theater Anynet + Device 3 the HDMI OUT jack of the
corresponding Anynet +
device using the HDMI
cable.
HDMI 1.3 Cable
HDMI 1.3 Cable
Optical Cable
Connect the Optical cable between [Digital Audio Out (Optical)] on your TV and Digital Audio Input on the Home
Theater.
Connect only one Home Theater.
You can listen to 5.1 channel sound through the home theater's speakers. Otherwise, you can only listen to 2 channel
stereo sound in other cases. Make sure to connect the Digital Audio IN (Optical) of the home theater and the TV
correctly to listen to TV sound through the home theater. However, you cannot listen to sound from the BD recorder
that is sent to the home theater via the TV in 5.1 channel sound because the TV outputs only 2 channel stereo sound.
Please see the manual for the home theater.
You can connect an Anynet + device using the HDMI 1.3 cable. Some HDMI cables may not support Anynet + functions.
Anynet + works when the AV device supporting Anynet + is in the Standby or On status.
Anynet + supports up to 12 AV devices in total.
2-2 Samsung Electronics
Product Specification
2-2 Specifications Analysis
: application, X: non-application
Model PN50A550S1 (Spinel) FP-T5084 (Saffron-50FHD)
Design
Display Type PDP TV PDP TV
Built-In Tuner
Resolution 1920 x 1080 1920 x 1080
SAMSUNG SDI 50" FHD WF3.5
PDP Module Samsung SDI 50" FHD WF2
SAMSUNG SDI 50" FHD UF1
Basic
Screen Size 50" 50"
Picture ratio 16 : 9 16 : 9
Dimensions (WxHxD) 48.4 x 30.3 x 3.7 inches 50.7 x 29.1 x 3.72 inches
Weight 91.3 lbs / 41.4kg 107 lbs / 49kg
Power consumption 550w 520w
Brightness 1300Cd/m2 1,300 Cd/m2
Contrast Ratio 20000:1 15,000:1
Picture Enhacer FBE3 DNIe (FBE2)
Comb Filter
Equalizer 5 Band 5 Band
Auto Volume Control
Audio
Surround Sound SRS TruSurround XT SRS TruSurround XT
Speaker Output 10W + 10W 15W + 15W
PIP
Double Window
Caption
Still Image
Features EPG
My Color Control
Color Weakness X X
Energy Saving
Anynet
Antenna 1 (Cable/Air) 2 (Cable/Air)
AV Input 2 2
S-Video 1 2
Component 2 2
PC(D-SUB) 1 1
Connections
DVI X X
HDMI 3 3
Sub Woofer X X
Optical 1 1
Coaxial X X
ETC Speaker/Stand Built-in Speaker Built-in Speaker
Samsung Electronics 2-3
Product Specification
2-3 Accessories
Accessories Item Item code Remark
Remote Control BN59-00673A
Batteries 4301-000103
Power Cord 3903-000144
Owner's Instructions BN68-01411A
Supplied Accessories
Warranty Card BN68-00872B
Registration Card - Samsung Service center
Safety Guide Manual AA68-03242L
Cloth-Clean BN63-01798A
Ferrite Core for
3301-001110
Power Cord
Cover-Bottom BN63-04220A
Screws (2ea) 6003-001621
S-VIDEO Cable
BN39-00149A
48 inches
Accessories that can be purchased
HDMI Cable
BN39-00641A
118 inches
additionally
Electronics Store/
Internal shopping mall
HDMI/DVI cable
BN39-00643A
118 inches
Component Cables (RCA)
BN39-00279A
60 inches
2-4 Samsung Electronics
Product Specification
Accessories Item Item code Remark
Optical Cable None
Accessories that can be purchased
PC Cable
BN39-00115A
72 inches
additionally
Electronics Store/
Internal shopping mall
PC Audio Cable
BN39-00061B
78 inches
Antenna Cable
BN39-00333A
118 inches
Samsung Electronics 2-5
