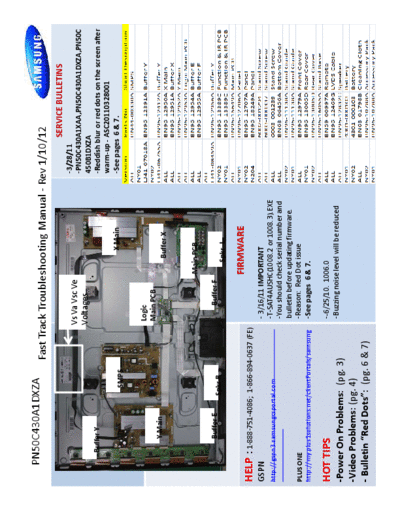

Image preview - the first page of the document



>> Download Samsung_PN50C430A1DXZA_fast_track_guide_[SM] documenatation <<

Text preview - extract from the document

     PN50C430A1DXZA
                                        Fast Track Troubleshooting Manual - Rev 1/10/12
                                                                                                        SERVICE BULLETINS
                                                                                             -3/28/11
                                                     Vs Va Vsc Ve                            -PN50C430A1XAA,PN50C430A1DXZA,PN50C
                                                     Voltages                                450B1DXZA
         Buffer Y                                                                            -Reddish blur or red dots on the screen after
                                                                                             warm-up - ASC20110328001
                                                                           X Main            -See pages 6 & 7.
                               SMPS


                                                      Logic
                                                      Main PCB
              Y Main                                                     Buffer X



                                                                     Main PCB

              Buffer E                                    Buffer F
                            Spkr R                                      Spkr L

                                                                     FIRMWARE
HELP : 1-888-751-4086;       1-866-894-0637 (FE)
GSPN                                                  - 3/16/11 IMPORTANT
http://gspn3.samsungcsportal.com                      -T-SAT4AUSHC(1008.2 or 1008.3).EXE
                                                      -You should check serial number and
                                                      bulletin before updating firmware.
PLUS ONE                                              -Reason: Red Dot issue
http://my.plus1solutions.net/clientPortals/samsung    -See pages 6 & 7.

HOT TIPS                                              --6/25/10. 1006.0
                                                      -Buzzing noise level will be reduced
-Power On Problems: (pg. 3)
-Video Problems: (pg. 4)
- Bulletin "Red Dots": (pg. 6 & 7)                                                                                               1
PN50C430B1DXZA          Fast Track Troubleshooting Manual




                 Power On Sequence
                 -STBY 5V (Pin 2 CN801)
                 -PS_ON (approx 3.3V
