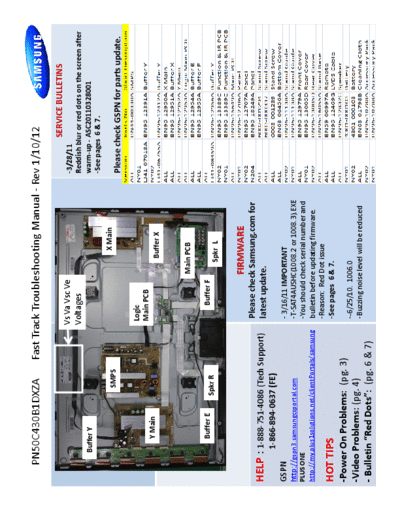

Image preview - the first page of the document
![Samsung_PN50C430B1DXZA_fast_track_guide_[SM]](/pics/5c26da1b371ac.gif)
>> Download Samsung_PN50C430B1DXZA_fast_track_guide_[SM] documenatation <<
Text preview - extract from the document
PN50C430B1DXZA Fast Track Troubleshooting Manual - Rev 1/10/12
SERVICE BULLETINS
Vs Va Vsc Ve -3/28/11
Voltages Reddish blur or red dots on the screen after
Buffer Y warm-up - ASC20110328001
-See pages 6 & 7.
X Main
SMPS
Please check GSPN for parts update.
Logic
Main PCB
Y Main Buffer X
Main PCB
Buffer E Buffer F
Spkr R Spkr L
FIRMWARE
Please check Samsung.com for
HELP : 1-888-751-4086 (Tech Support) latest update.
1-866-894-0637 (FE)
GSPN - 3/16/11 IMPORTANT
http://gspn3.samsungcsportal.com -T-SAT4AUSHC(1008.2 or 1008.3).EXE
PLUS ONE -You should check serial number and
http://my.plus1solutions.net/clientPortals/samsung bulletin before updating firmware.
-Reason: Red Dot issue
HOT TIPS -See pages 6 & 7.
-Power On Problems: (pg. 3)
--6/25/10. 1006.0
-Video Problems: (pg. 4) -Buzzing noise level will be reduced 1
- Bulletin "Red Dots": (pg. 6 & 7)
PN50C430B1DXZA Fast Track Troubleshooting Manual
Power On Sequence
-STBY 5V (Pin 2 CN801)
