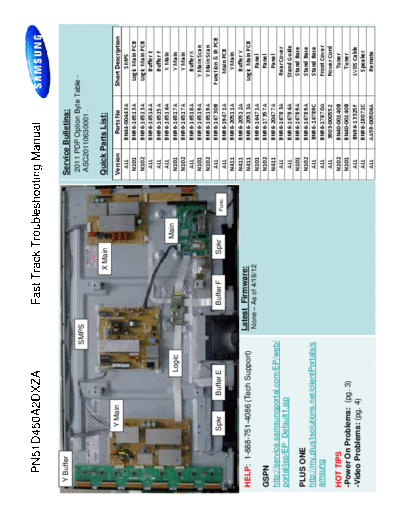

Image preview - the first page of the document



>> Download Samsung_PN51D450A2DXZA_fast_track_guide_[SM] documenatation <<

Text preview - extract from the document

    PN51D450A2DXZA                                    Fast Track Troubleshooting Manual

 Y Buffer                                                                                   Service Bulletins:
                                                                                             2011 PDP Option Byte Table -
                                           SMPS
                                                                                             ASC20110630001 .

                                                                 X Main                     Quick Parts List:
                  Y Main                                                                    Version    Parts No      Short Description
                                                                                              ALL     BN44-00443A            SMPS
                                                                                             N101     BN96-16513A      Logic Main PCB
                                                                                             N102     BN96-16513A      Logic Main PCB
                                                                                              ALL     BN96-16514A          Buffer E
                                                                                              ALL     BN96-16515A          Buffer F
                                                                                              ALL     BN96-16516A          X Main
                                                                             Main            N101     BN96-16517A           Y Main
                                  Logic
                                                                                             N102     BN96-16517A           Y Main
                                                                                              ALL     BN96-16518A          Buffer X
                                                                                             N101     BN96-16519A       Y Main Scan
                                                                                             N102     BN96-16519A       Y Main Scan
                                                                                              ALL     BN96-16730B     Function & IR PCB
                 Spkr      Buffer E                   Buffer F        Spkr          Func.
                                                                                              ALL     BN96-19471A         Main PCB
                                                                                             N411     BN96-20511A           Y Main
                                                                                             N411     BN96-20512A          Buffer Y
HELP: 1-888-751-4086 (Tech Support)            Latest Firmware:                              N411     BN96-20513A      Logic Main PCB
                                               None
