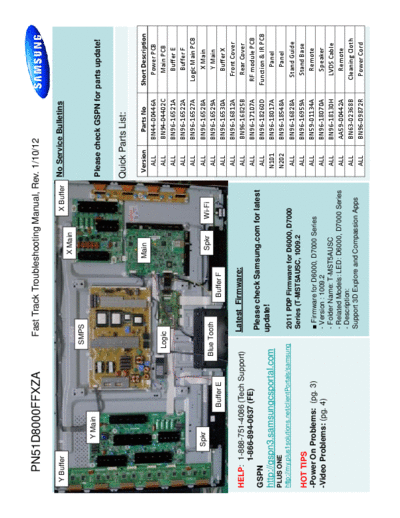

Image preview - the first page of the document
![Samsung_PN51D8000FFXZA_fast_track_guide_[SM]](/pics/5c26da958c8d9.gif)
>> Download Samsung_PN51D8000FFXZA_fast_track_guide_[SM] documenatation <<
Text preview - extract from the document
PN51D8000FFXZA Fast Track Troubleshooting Manual, Rev. 1/10/12
Y Buffer X Buffer No Service Bulletins
X Main
SMPS
Y Main
Please check GSPN for parts update!
Quick Parts List:
Main Version Parts No Short Description
ALL BN44-00446A Power PCB
Logic ALL BN94-04402C Main PCB
ALL BN96-16521A Buffer E
ALL BN96-16522A Buffer F
ALL BN96-16527A Logic Main PCB
Spkr ALL BN96-16528A X Main
Spkr Wi-Fi
Blue Tooth ALL BN96-16529A Y Main
Buffer E Buffer F ALL BN96-16530A Buffer X
ALL BN96-16812A Front Cover
HELP: 1-888-751-4086 (Tech Support) Latest Firmware: ALL BN96-16825B Rear Cover
1-866-894-0637 (FE) ALL BN96-17107A RF module PCB
GSPN Please check Samsung.com for latest
ALL BN96-18260D Function & IR PCB
update!
http://gspn3.samsungcsportal.com N101 BN96-18017A Panel
PLUS ONE N202 BN96-18548A Panel
http://my.plus1solutions.net/clientPortals/samsung 2011 PDP Firmware for D6000, D7000 ALL BN96-16828A Stand Guide
Series (T-MST5AUSC, 1009.2
HOT TIPS ALL BN96-16959A Stand Base
-Power On Problems: (pg. 3) Firmware for D6000, D7000 Series ALL BN59-01134A Remote
-Video Problems: (pg. 4) - Version : 1009.2 ALL BN96-18070A Speaker
- Folder Name: T-MST5AUSC ALL BN96-18130H LVDS Cable
- Related Models: LED: D6000, D7000 Series ALL AA59-00442A Remote
- Description:
ALL BN63-02368B Cleaning Cloth
Support 3D Explore and Compassion Apps
ALL BN96-09872R Power Cord
PN51D8000FFXZA Fast Track Troubleshooting Manual
Power On Sequence:
1. STBY 5V (CN801, #2, 5v)
2. PS_ON (CN801, #1, 3.3v-0v)
3. VS_ ON (CN802, #6, 0-3.3v)
4. Panel should illuminate briefly
PN51D8000FFXZA Fast Track Troubleshooting Manual
Sample
"VITAL SIGNS"
When troubleshooting, It's very important to first check Vs, Va, Vsc & Ve
If Vs is missing (0V), disconnect power and check for short. Use ohm
Power Supply Trouble Shooting Notes: meter to measure resistance while disconnecting Y-Board & X-Board
supply feeds one at a time.
2010/2011 models
Turn Power On and Test SMPS with shorted connector removed for
Will not be run with the "X" or "Y" main disconnected. The SMPS will correct Vs voltage verification. (It may only come up briefly but to full
shut down immediately. However if a meter is first connected to the level). Be careful not to reconnect power connectors until Vs falls below
test point when power is applied it will read the correct voltage briefly 10V.
before shut- ting down.(You have enough time to check key
If Va is low or missing, disconnect power connectors to Address Boards
voltages)
and Check to see if SMPS Supply is restored. (Note Va feed normally
CAUTION: Do not reconnect any connectors to SMPS or Y/X Boards passes through the Y-Drive to the Address Boards (Logic Buffer Boards).
until power has been turned off long enough for Vs to drop below 10V If Vsc is low or missing and Vs is OK, the failure is with the Y-Board
or damage will occur to X or Y Boards. .
since the Y-Board generates the Vsc voltage from the supplied Vs.
SMPS Over Current Protection If Ve is low or missing and Vs is OK, the failure is with the X-Board since the
Ve is generated by the X-Board from the supplied Vs. (Please note: In some
If a short circuit occurs on either the VS or VA voltage lines, the SMPS rare cases the Ve is generated by the Y-Board fed to the X-Board.)
stops operating, but should not fail. When the short circuit is removed
from the source line, the Power Supply will operate normally again. Other SMPS Voltages:
Many SMPS Supplies are replaced needlessly! Check Low Voltage feeds to the Main Board and other supplied Assemblies.
3
PN51D8000FFXZA Fast Track Troubleshooting Manual
TROUBLESHOOTING VIDEO PROBLEMS
1. Verify Video Operation 2. Using Test Patterns in Service Mode
