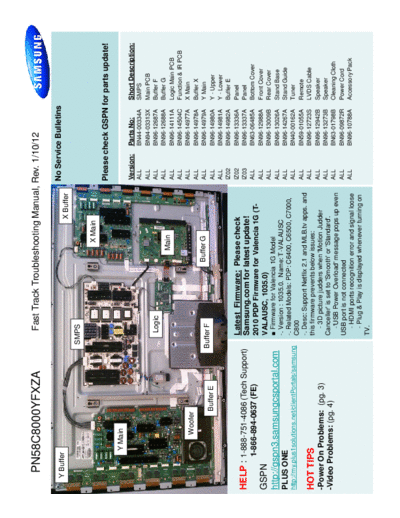

Image preview - the first page of the document
![Samsung_PN58C8000YFXZA_fast_track_guide_[SM]](/pics/5c26dae8ac4af.gif)
>> Download Samsung_PN58C8000YFXZA_fast_track_guide_[SM] documenatation <<
Text preview - extract from the document
PN58C8000YFXZA Fast Track Troubleshooting Manual, Rev. 1/10/12
Y Buffer No Service Bulletins
X Buffer
SMPS
X Main
Please check GSPN for parts update!
Y Main
Version: Parts No: Short Description:
ALL BN44-00334A SMPS
ALL BN94-03313X Main PCB
Logic ALL BN96-12687A Buffer F
ALL BN96-12688A Buffer G
Main ALL BN96-14111A Logic Main PCB
ALL BN96-14504C Function & IR PCB
ALL BN96-14977A X Main
Woofer
ALL BN96-14978A Buffer X
Buffer G ALL BN96-14979A Y Main
Buffer F
Buffer E ALL BN96-14980A Y - Upper
ALL BN96-14981A Y - Lower
IZ02 BN96-14982A Buffer E
Latest Firmware: Please check IZ02 BN96-13336A Panel
HELP : 1-888-751-4086 (Tech Support) Samsung.com for latest update! IZ03 BN96-13337A Panel
1-866-894-0637 (FE) 2010 PDP Firmware for Valencia 1G (T- ALL BN63-06485A Bottom Cover
ALL BN96-12988A Front Cover
GSPN VALAUSC, 1035.0) ALL BN96-13009B Rear Cover
http://gspn3.samsungcsportal.com Firmware for Valencia 1G Model
ALL BN96-13026A Stand Base
-. Version : 1035.0. Name: T-VALAUSC
PLUS ONE -. Related Models: PDP: C6400, C6500, C7000,
ALL BN96-14267A Stand Guide
http://my.plus1solutions.net/clientPortals/samsung ALL BN40-00162A Tuner
C800
ALL BN59-01055A Remote
-. Desc: Support Netflix 2.1 and MLB.tv apps. and
HOT TIPS ALL BN96-12723S LVDS Cable
this firmware prevents below issues:
ALL BN96-12942B Speaker
-Power On Problems: (pg. 3) - 3D picture judders when 'Motion Judder
ALL BN96-13273B Speaker
-Video Problems: (pg. 4) Canceller' is set to 'Smooth' or 'Standard'.
-'USB Power Overload' message pops up even ALL BN63-01798B Cleaning Cloth
USB port is not connected ALL BN96-09872R Power Cord
- HDMI ports recognition error and signal loose ALL BN96-10788A Accessory Pack
- Plug & Play is displayed whenever turning on
TV.
PN58C8000YFXZA Fast Track Troubleshooting Manual
- ENTER SERVICE MODE -
Customer Remote: Power off; Mute, 182, Power On
Service Remote: Power On; Info, Test
Power On Sequence:
1. STBY 5V (CN801, #2, 5v)
2. PS_ON (CN801, #1, 3.3v-0v)
3. VS_ ON (CN802, #6, 0-3.3v)
4. Panel should illuminate briefly
PN58C8000YFXZA Fast Track Troubleshooting Manual
Sample
"VITAL SIGNS"
When troubleshooting, It's very important to first check Vs, Va, Vsc & Ve
If Vs is missing (0V), disconnect power and check for short. Use ohm
Power Supply Trouble Shooting Notes: meter to measure resistance while disconnecting Y-Board & X-Board
supply feeds one at a time.
2010/2011 models
Turn Power On and Test SMPS with shorted connector removed for
Will not be run with the "X" or "Y" main disconnected. The SMPS will correct Vs voltage verification. (It may only come up briefly but to full
shut down immediately. However if a meter is first connected to the level). Be careful not to reconnect power connectors until Vs falls below
test point when power is applied it will read the correct voltage briefly 10V.
before shut- ting down.(You have enough time to check key
If Va is low or missing, disconnect power connectors to Address Boards
voltages)
and Check to see if SMPS Supply is restored. (Note Va feed normally
CAUTION: Do not reconnect any connectors to SMPS or Y/X Boards passes through the Y-Drive to the Address Boards (Logic Buffer Boards).
until power has been turned off long enough for Vs to drop below 10V If Vsc is low or missing and Vs is OK, the failure is with the Y-Board
or damage will occur to X or Y Boards. .
since the Y-Board generates the Vsc voltage from the supplied Vs.
SMPS Over Current Protection If Ve is low or missing and Vs is OK, the failure is with the X-Board since the
Ve is generated by the X-Board from the supplied Vs. (Please note: In some
If a short circuit occurs on either the VS or VA voltage lines, the SMPS rare cases the Ve is generated by the Y-Board fed to the X-Board.)
stops operating, but should not fail. When the short circuit is removed
from the source line, the Power Supply will operate normally again. Other SMPS Voltages:
Many SMPS Supplies are replaced needlessly! Check Low Voltage feeds to the Main Board and other supplied Assemblies.
3
PN58C8000YFXZA Fast Track Troubleshooting Manual
TROUBLESHOOTING VIDEO PROBLEMS
1. Verify Video Operation 2. Using Test Patterns in Service Mode
a) Customer Picture Test (if available) - ENTERING SERVICE MODE -
b) "Display" (If display is OK source is suspected) Customer Remote Service Remote
c) Substitute with known good Source 1. Power off 1. Power On
(external DVD or Signal Generator) 2. Mute, 182, Power 2. Info, Factory
3. Determine cause
a) If Logic pattern is NG; Logic
board, Logic buffers or
Panel are suspect.
b) If FBE patterns is NG and
Logic is OK; Main or LVDS
cable are suspect.
c) If both are OK it is likely a
source issue.
4
PN58C8000YFXZA Fast Track Troubleshooting Manual
ALIGNMENTS:
1. Check/Adj. VS, VA, VE, & VSC according to Panel Label
and Diffusion test. (see bulletins for any special notes DIFFUSION TEST/ADJ. (cell miss-firing, older
before making changes) units)
- Allow the unit to warm up 15 to 20 minutes
2. Check/Set Option Bytes: - Access the Burn Protect Sig. Pattern in Cust.
- ENTER SERVICE MODE - Menu.
a) Customer Remote: Power off; Mute, 182, Power On -Adjust the Vs volts until screen errors are gone
b) Service Remote: Power On; Info, Factory in
both dark and bright areas.
Model - Adjust the Vs volts within +/- 10V on the panel
Code: PN58C8000YFXZA label.
Option
Front
Side Label Type Model Tuner Light Effect Ch Table
Color
IZ02 58FAmV1D PC8000 SEMCO OFF SAMEX W-Violet
IZ03 58FAmV1D PC8000 SEMCO OFF SAMEX W-Violet
SPECIAL NOTES:
See bulletin "Red Dots" for correction/
adjustments for this model.
