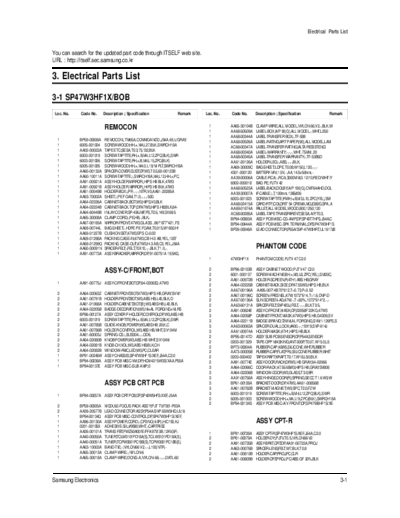

Image preview - the first page of the document
![Samsung_SP42W4HBX_SP47W4HFX1_20030708181639593_j54a_eplis-12_[SM]](/pics/5c26da2306081.gif)
>> Download Samsung_SP42W4HBX_SP47W4HFX1_20030708181639593_j54a_eplis-12_[SM] documenatation <<
Text preview - extract from the document
Electrical Parts List
You can search for the updated part code through ITSELF web site.
URL : http://itself.sec.samsung.co.kr
3. Electrical Parts List
3-1 SP47W3HF1X/BOB
Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark
REMOCON 1
1
AA65-30104B
AA68-50509A
CLAMP-WIRE;ALL MODEL,NYLON 66,V2,-,BLK,W
LABEL-BOX;A/P 90(G),ALL MODEL,-,WHT,L250
1 AA68-00344A LABEL-TRANSFER BOX;-,TF-53B
1 BP59-00008A REMOCON;,TM65A,COMMOANDO,J54A,49,L/GRAY, 1 AA68-00526A LABEL-RATING;ART PAPER(90),ALL MODEL,LAM
1 6005-001004 SCREW-WOOD;HH,+,M4,L27,BLK,SWRCH18A 1 AC68-00347A LABEL-TRANSFER RATING;ALTA RESISTENCI
1 AA02-00022A TAPE ETC;SESA,T0.3,75,132,BLK 1 AA68-00340A LABEL-WARRANTY;-,-,-,WHT,75MM,20
1 6003-001019 SCREW-TAPTITE;RH,+,B,M4,L12,ZPC(BLK),SWR 1 AA68-00345A LABEL-TRANSFER WARRANTY;-,TF-53B5D
1 6003-001026 SCREW-TAPTITE;RH,+,B,M4,L15,ZPC(BLK) 1 AA61-20126A HOLDER-LEG;-,ABS,-,-,-,BLK,
1 6005-001005 SCREW-WOOD;HH,+,M4.0,L19,NI PLT,SWRCH18A 1 AA69-30009C BAG-SHEET;LDPE,T0.08,W150,L120,-,-,-
1 AA60-00132A SPACER-COVER,DUST;DP,W3,T0.5,60-00123B 1 4301-000120 BATTERY-MN;1.5V,-,AA,14.5x50mm,-
1 AA60-10011A SCREW-TAPTITE;-,SWRCH18A,M4,L12,HH,+,PC, 1 AA39-00006A CABLE-RCA;-,RCA,3000MM,0.12/10,RED/WHT/Y
1 AA91-00921A ASSY-HOLDER,MIRROR;,HIPS HB BLK,47W3 1 6902-000018 BAG PE; PJTV 42
1 AA91-00921B ASSY-HOLDER,MIRROR;,HIPS HB BLK,47W3 1 AA68-50523A LABEL-BACK,DOLBY;A/P 100(G),CW764AHD,DOL
1 AA61-00049B HOLDER-BOX;-,PP,-,-,-,NTR,V0,AA61-20285A 1 AA39-30007A IF-CABLE;-,T,100mm,1365#26
1 AA63-70002A SHEET;-,PE FOAM,T1.0,-,-,-,50G 1 6003-001023 SCREW-TAPTITE;RWH,+,B,M3,L10,ZPC(YEL),SW
1 AA64-02336A CABINET-BACK,BOT;W3,HIPS,V0,BLK 1 AA68-02415A CARD-RTF;COLORIT 54 CREMA,MOJO80G,SPA,A
1 AA64-02224B CABINET-BACK,TOP;DP,47W3,HIPS HB,BLK,64- 1 AA69-01874A PALLET;ALL MODEL,WOOD,800,1250,120
1 AA64-60449B INLAY-COVER;SP-434JMF,PS,T0.5,149.3X69.5 1 AC68-00285A LABEL-TAPE TRANSPARENT;SESA,A/P,T0.3,
1 AA65-30008A CLAMP-CORD;-,PE,HB,-,BLK,- 1 BP94-00383A ASSY PCB MISC-CG-AMP;DP,SP43T7HFS,J54A,C
1 AA67-00165A MIRROR-FRONT;47W3,GLASS ,861*677*421,FS 1 BP94-00444A ASSY PCB MISC-SPK TERMINAL;DP,SP47W3HF1S
1 AA69-00744L BAG-SHEET;-,HDPE PE FOAM,T0.015,W1650,H1 1 BP39-00048A LEAD CONNECTOR;P55A/SVP-47W3HRT,UL1617#2
1 AA69-01227B CUSHION SET;47W3,EPS C=0.02
1 AA69-01298A PACKING CASE-IN;47W3,CB H-3 AB,YEL,1207
1 AA69-01299Q PACKING CASE-OUT;47W3,H-3 AB,C3,YEL,J54A
1 AA60-00091N SPACER-FELT;-,FELT,70X10,-,-,BLK,T1.0,-, PHANTOM CODE
1 AA91-00773A ASSY-BRACKER,MIRROR;DP,91-00751A 19.5KG,
1 47W3HF1X PHANTOM CODE; PJTV 47 C2.0
ASSY-C/FRONT,BOT 2
2
BP96-00103B
6001-000137
ASSY CABINET WOOD; PJTV 47 C2.0
SCREW-MACHINE;BH,+,M3,L8,ZPC(YEL),SM20C,
2 AA61-00972B HOLDER-SCREEN,R;47H1,ABS HB,GRAY
1 AA91-00775J ASSY-C/FRONT,BOT;DP,64-02063Q,47W3 2 AA64-02225B CABINET-BACK,SIDE;DP,47.55W3,HIPS HB,BLK
2 AA67-00196A AA95-00714B70*612,T=0.73,P=0.52
2 AA64-02063Z CABINET-FRONT,BOT;47W3,HIPS HB,GRAY,SVM1 2 AA67-00196C SCREEN-FRESNEL;47W,1072*614,T=1.6,DNP-D
2 AA61-00791B HOLDER-FRONT,BOT;W3,ABS HB,L40,BLK,D 2 AA67-00136A SUN SCREEN-AG;47W,-,T=82%,1072*614*2,-,-
2 AA61-01068A HOLDER-CABINET,BOT(B);W3,ABS HB,L40,BLK, 2 AA63-60131A SPACER-FELT;SVP403J,FELT,-,-,-,BLK,T0.5,
2 AA64-02205B BADGE-DECORATION;W3,NI+AL FORGING+NI,RS 2 AA91-00824E ASSY-C/FRONT,MASK;DP,02058F 22KG,47W3
2 BP96-00127A ASSY COVER P-HOLDER,CONTROL;DP,W3,ABS HB 3 AA64-02058P CABINET-FRONT,MASK;47W3,HIPS HB,G4309,SV
2 6003-001019 SCREW-TAPTITE;RH,+,B,M4,L12,ZPC(BLK),SWR 3 AA64-02211B BADGE-BRAND;72MM,AL FORGING,SVM1-126PS,S
2 AA61-00785B GUIDE-KNOB,POWER;W3,ABS HB ,BLK,C 3 AA63-00063A SPACER-DUAL,LOCK;#400,-,-,19X19,SVP-614J
2 AA61-00786B HOLDER-CONTROL;W3,ABS HB,WHT,SV104M 3 AA61-00974A HOLDER-MASK;47H1,HIPS HB,BLK
2 AA61-60003J SPRING-CS;-,SUS304,-,-,OD6, 2 BP95-00147D ASSY SUB PCB-SENSOR;DP,P54A,SENSOR
2 AA64-02080B KNOB POWER;W3,ABS HB WHT,SV104M 2 0203-001329 TAPE-OPP MASKING;ANT-300P,T0.07,W15.0,L5
2 AA64-02081B KNOB-CH,VOL;W3,ABS HB,BLK,CH 2 BP73-00004A RUBBER-CAP;42W5,SILICONE,WHT,RUBBER
2 AA64-02082B WINDOW-RMC,LED;W3,PC,CLEAR 2 AA73-00005B RUBBER-CAP;FLAT,PRJ,SILICONE RUBBER,WHIT
1 BP91-00245W ASSY CHASSIS;SP47W3HF1S/XEF,J54A,C2.0 2 0203-000402 TAPE-KRAFT;KRAFT,T0.17,W18,L50,BLK
1 BP94-00238A ASSY PCB MISC-VM;DP,HCM4215W3S/XAA,P55A 2 AA91-00774E ASSY-DOOR,RACK;DP,W3,HB GRAY,64-02066
1 BP94-00137E ASSY PCB MISC-SUB AMP;0 3 AA64-02066C DOOR-RACK;47.55.65W3,HIPS HB,GRAY,SV808
3 AA64-02206B WINDOW-DOOR;W3,GLASS,T3.0,BR
3 AA91-00758A ASSY-HINGE,DOOR(R);SPRING,SECC T1.6 W3,W
ASSY PCB CRT PCB 3 BP61-00128A BRACKET-DOOR;DP,47W3,AA61-00856B
3 AA61-00782B BRACKET-MAGNET;W3,SPC,T2.0,FZW
3 6003-001019 SCREW-TAPTITE;RH,+,B,M4,L12,ZPC(BLK),SWR
1 BP94-00257A ASSY PCB CRT PCB;DP,SP42W5HFS/XEF,J54A
2 6005-001003 SCREW-WOOD;HH,+,M4,L19,ZPC(BLK),SWRCH18A
2 BP94-00134S ASSY PCB MISC-A/V FRONT;DP,SP47W3HF1S/XE
2 BP59-00005A MODULE-FOCUS PACK ASS'Y;PJT TV,F301-P03A
2 AA39-20577B LEAD CONNECTOR ASSY;P54A/SVP-55W3HD,UL16
1 BP94-00134Q ASSY PCB MISC-CONTROL;DP,SP47W3HF1S/XEF,
1 AA96-20130A ASSY-POWER,CORD;-,CP2/NO(4.0R),H/C150,KJ ASSY CPT-R
1 0201-001059 ADHESIVE-SIL;#9590,WHT,-,CARTRIGE
1 AA26-00101A TRANS FBT;FWZ50A001E/FFA97513B,12KV,5P,- 1 BP91-00728A ASSY CPT-R;SP47W3HF1S/XEF,J54A,C2.0
1 AA40-00050A TUNER;TCLW3101PD18A(S),TCLW3101PD18A(S), 2 BP61-00079A HOLDER-DY;,PJTV,T0.5,NYLON66 V2
1 AA40-00051A TUNER;TCPW3001PC18B(S),TCPW3001PC18B(S), 2 AA91-00735B ASSY-BRKT,CRT;DP,AA91-00722A,PROJ
1 AA63-10002A BAND-TIE;-,NYLON66 V2,-,-,L100,NTR,- 2 AA63-00076B SPACER-LENS;FELT,W7,BLK,T0.8
1 AA65-30013A CLAMP-WIRE;-,NYLON-6 2 AA61-00810B HOLDER-CAP;PROJ,PC,CLR
1 AA65-30018A CLAMP-WIRE;DONG-A,NYLON-66,-,-,-,DATL-60 2 AA61-00809B HOLDER-CRT;PROJ,PC/ABS GF 20%,BLK
Samsung Electronics 3-1
Electrical Parts List
Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark
2 AA61-00056B BRACKET-LENS;PROJECTION,SECC,T1.6,-,-,-,
2 AA60-00127B SPACER-LENS;PROJ,SILICONE,D/GRAY
2 AA60-00126B SPACER-CAP;PROJ,EPDM,BLK
2 AA60-00125B SPACER-CRT;PROJ,SILICONE,D/GRAY
ASSY CABINET WOOD
2 AA39-00018A LEAD CONNECTOR-ASSY;,UL1015#22,UL/CSA,1P
2 AA33-00016A MAGNET CONVERGENCE;JH 92LT - 29F,-,29.1M 1 BP96-00103A ASSY CABINET WOOD; SVP-47W3HRT,P55
2 AA27-00278A DEFLECTION YOKE;-,PT-S0712AC,S/S,PJTCRT(
2 AA26-30006F FLYBACK;*WIRE*-,FWZ-50A001C,55,30KV 2 BP64-00083A CABINET-WOOD;SVP-47W3HRT,47W3,WOOD
2 0204-001148 ETHYLENE GLYCOL;MS-S02,CH20HCH20H,80,20 2 AA61-00097A HOLDER-WIRE;-,NYLON 6/6,-,-,-,NTR,-
2 0203-001303 TAPE-ACETATE;#1554,T0.25MM,W19MM,L30M,WH 2 AA60-00078B SPACER-DUAL,LOCK;W3,#250,19*40
2 0201-001030 ADHESIVE-SIL;SE9178,GRY,NON-FLOW,UL94V0 2 AA60-10051A SCREW-WOOD;-,SWRCH18A,M4,L16,PH,+,-,-,ZP
2 AA61-00845A CASE-COUPLER,R;DP,PROJ,AA61-00806B 2 AA60-10051B SCREW-WOOD;-,SWRCH18A,M3.5,L11,RH,+,-,-,
2 AA03-00307A CRT MONO;P16QDU11RJA S,-,-,-,90%,-,FLA 2 AA61-00094C HOLDER-RAIL;PCJ533R,ABS,-,-,-,BLK,HB,480
2 AA67-00157A LENS;,DELTA 240,RED,C-ELEMENT 2 AA61-00723A HOLDER-PIN,DABO;PRJT,WOODEN NAIL,OD6XL20
2 AA67-00145A LENS-ASSY;,DELTA 250,CLEAR A/B 2 AA61-00507B HOLDER-CABINET,WOOD;43,54,62J8,ABS,-,-,-
2 AA60-10011A SCREW-TAPTITE;-,SWRCH18A,M4,L12,HH,+,PC, 2 BP61-00075A HOLDER-JERSEY,ASSY;W3,ABS V0,GRAY,63-000
2 AA61-00616B HOLDER-CRT,MAIN;54J7,DP,-,-,-,-,AA61-005
2 AA61-01117B HOLDER-SENSOR;W3,PC VIOLET
2 AA61-00864A HOLDER-PCB;W3,HIPS,V0,BLK
ASSY CPT-G 2 AA61-00458B CASTER;-,TP4020-05 PLY,-,OH56,-,-,SR4
2 AA61-00973B HOLDER-SCREEN,L;47H1,ABS HB,GRAY
1 BP91-00729A ASSY CPT-G;SP47W3HF1S/XEF,J54A,C2.0 2 BP61-00087A RAIL-DOOR,R;W3,ABS HB,BLK
2 BP61-00087B RAIL-DOOR,L;W3,ABS HB,BLK
2 BP61-00079A HOLDER-DY;,PJTV,T0.5,NYLON66 V2 2 AA61-00857B BRACKET-NUT,INSERT;W3,M3 ZN
2 AA91-00735B ASSY-BRKT,CRT;DP,AA91-00722A,PROJ 2 AA61-00858B BRACKET-FRAME;W3,SECC,T2.0
2 AA63-00076B SPACER-LENS;FELT,W7,BLK,T0.8 2 AA61-10247A BRACKET-FOCUS;S46DS,SECC,T1.0,-,-,-,-
2 AA61-00810B HOLDER-CAP;PROJ,PC,CLR 2 AA63-00384A COVER-DUCT;DP 54J8,-,-,-,-,HB,-,AA63-003
2 AA61-00809B HOLDER-CRT;PROJ,PC/ABS GF 20%,BLK 2 AA65-00017A CLAMP CORE-WIRE;ALL MODEL,NYLON6.6,BLK
2 AA61-00056B BRACKET-LENS;PROJECTION,SECC,T1.6,-,-,-, 2 AA91-00750A ASSY-MAGNET,PUSH;,MAGNET,W3
2 AA60-00127B SPACER-LENS;PROJ,SILICONE,D/GRAY 2 6005-001006 SCREW-WOOD;FH,+,M3,L15.0,ZPC(BLK),SWRCH1
2 AA60-00126B SPACER-CAP;PROJ,EPDM,BLK 2 AA60-10050Y SCREW-WOOD;-,SWRCH18A,M4,L40,FH,+,-,-,ZP
2 AA60-00125B SPACER-CRT;PROJ,SILICONE,D/GRAY 2 AA61-00999A HOLDER-DUAL,LOCK;W3,W1,ABS HB,BLK
2 AA39-00018A LEAD CONNECTOR-ASSY;,UL1015#22,UL/CSA,1P 2 AA61-20219A HOLDER-FRONT,BOT,E;,ABS,HB,L40,BLK
2 AA27-00278A DEFLECTION YOKE;-,PT-S0712AC,S/S,PJTCRT( 2 AA61-01070A HOLDER-CABINET,BOT(D);W3,ABS HB,L990,BLK
2 AA26-30006F FLYBACK;*WIRE*-,FWZ-50A001C,55,30KV 2 AA61-00975A HOLDER-CABINET,BOT-F;W3,ABS HB,GRAY
2 0204-001148 ETHYLENE GLYCOL;MS-S02,CH20HCH20H,80,20 2 BP63-00001A SHEET-EMI;55W3,PS V2+AL LAMI,T0.35,350*
2 0203-001303 TAPE-ACETATE;#1554,T0.25MM,W19MM,L30M,WH 2 AA61-00792C HOLDER-SENSOR;W3,ABS HB,BLK
2 0201-001030 ADHESIVE-SIL;SE9178,GRY,NON-FLOW,UL94V0 2 AA61-00971A HOLDER-SCREEN,TB;47H1,ABS HB,GRAY
2 AA61-00846A CASE COUPLER G;DP,PROJ,AA61-00807B 2 AA61-01067A HOLDER-CABINET,BOT(A);W3,ABS HB,L40,BLK,
2 AA03-00308A CRT MONO;P16QDU11GHA S,-,-,-,90%,-,FLA 2 3001-001107 SPEAKER;20W,8ohm,95dB,1300Hz
2 AA67-00158A LENS;,DELTA 240,GREEN,C-ELEMENT 2 3001-001134 SPEAKER;30W,8ohm,93dB,60Hz
2 AA67-00145A LENS-ASSY;,DELTA 250,CLEAR A/B 2 AA39-00086A LEAD CONNECTOR-ASSY;,2.2UF,REC,REC,200MM
2 AA60-10011A SCREW-TAPTITE;-,SWRCH18A,M4,L12,HH,+,PC, 2 AA98-00049B ASSY-LEAD,CON;-,LEAD-CON,CORE,AA39-20505
2 AA39-00284A LEAD CONNECTOR-ASSY;SVP-47W3HD,UL2547#26
2 AA61-00617B BRACKET-CRT,MAIN;DP,54J7,AA61-00475B
ASSY CPT-B 2
2
6006-001094
AA61-00618C
SCREW-ASS'Y WOOD;WW,HH,+,M7,L32,ZPC(YEL)
GUIDE-FLOW;54J8,J7,ABS,IVORY,V0
2 AA91-00766A ASSY-CENTER,SPK;,W3
1 BP91-00730A ASSY CPT-B;SP47W3HF1S/XEF,J54A,C2.0 3 AA61-00859A PLATE-CENTER,SPK;W3,WOOD
3 3001-000151 SPEAKER;20W,8ohm,92dB,130Hz
2 BP61-00079A HOLDER-DY;,PJTV,T0.5,NYLON66 V2 3 AA39-20609A LEAD CONNECTOR-ASSY;,2P,SMH250-02,REC,40
2 AA91-00735B ASSY-BRKT,CRT;DP,AA91-00722A,PROJ 3 AA60-10051B SCREW-WOOD;-,SWRCH18A,M3.5,L11,RH,+,-,-,
2 AA63-00076B SPACER-LENS;FELT,W7,BLK,T0.8
2 AA61-00810B HOLDER-CAP;PROJ,PC,CLR
2 AA61-00809B HOLDER-CRT;PROJ,PC/ABS GF 20%,BLK
2 AA61-00056B BRACKET-LENS;PROJECTION,SECC,T1.6,-,-,-,
2 AA60-00127B SPACER-LENS;PROJ,SILICONE,D/GRAY
2 AA60-00126B SPACER-CAP;PROJ,EPDM,BLK
2 AA60-00125B SPACER-CRT;PROJ,SILICONE,D/GRAY
2 AA39-00018A LEAD CONNECTOR-ASSY;,UL1015#22,UL/CSA,1P
2 AA33-00018A MAGNET CONVERGENCE;JH 92LT - 36F,-,29.1M
2 AA27-00278A DEFLECTION YOKE;-,PT-S0712AC,S/S,PJTCRT(
2 AA26-30006F FLYBACK;*WIRE*-,FWZ-50A001C,55,30KV
2 0204-001148 ETHYLENE GLYCOL;MS-S02,CH20HCH20H,80,20
2 0203-001303 TAPE-ACETATE;#1554,T0.25MM,W19MM,L30M,WH
2 0201-001030 ADHESIVE-SIL;SE9178,GRY,NON-FLOW,UL94V0
2 AA61-00847A CASE-COUPLER,B;DP,PROJ,AA61-00808B
2 AA03-00309A CRT MONO;P16QDU11BEA S,-,-,-,90%,-,FLA
2 AA67-00156A LENS;,DELTA 240,CLEAR,C-ELEMENT
2 AA67-00145A LENS-ASSY;,DELTA 250,CLEAR A/B
2 AA60-10011A SCREW-TAPTITE;-,SWRCH18A,M4,L12,HH,+,PC,
1 AA65-30105A CLAMPER CORE-WIRE;ALL MODEL,NYLON 66,V2,
1 BP94-00239A ASSY PCB MISC-DY-JACK;DP,HCM4215W3S/XAA,
1 BP68-00092A MANUAL USERS;SP43T7HF,BG,W/P100G,J54A,B5
1 AA63-10007B BAND-PP;W18,CLEA
1 AA68-01070A LABEL-MODEL;-,A/P,-,30,20,-,-,-,ALL MODE
1 AA61-01134A HOLDER-MIRROR,BOT;43,54T6,HIPS HB,BLK
3-2 Samsung Electronics
Electrical Parts List
You can search for the updated part code through ITSELF web site.
URL : http://itself.sec.samsung.co.kr
3-2 SP42W4HBX/XEU
Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark
ASSY COVER FRONT ...3
...3
T0165
CIS4
AA64-02743A
BP73-00001A
BADGE-DECORATION;42W5,AL,NI,RS
RUBBER-SHEET;42W5,NBB RUBBER,GRAY,10*20
...3 BP02-00003A CHEMICALS-PTFE SPRAY;P/C34235,ROCOL,DRY S.N.A
1 M0001 BP90-00119B ASSY COVER FRONT;SP42W4HPX/XEU,J54A ..2 T0154 BP91-00752A ASSY-PANNEL,CONTROL;,HIPS HB,G4309,SV012
...3 T0081 6003-001019 SCREW-TAPTITE;RH,+,B,M4,L12,ZPC(BLK),SWR
..2 T0081 6003-001023 SCREW-TAPTITE;RWH,+,B,M3,L10,ZPC(YEL),SW S.N.A ...3 T0081 6003-001019 SCREW-TAPTITE;RH,+,B,M4,L12,ZPC(BLK),SWR
..2 T0081 6003-001339 SCREW-TAPTITE;HH,+,B,M4,L15,ZPC(BLK),SWR S.N.A ...3 T0081 6003-001019 SCREW-TAPTITE;RH,+,B,M4,L12,ZPC(BLK),SWR
..2 HC+CW 6005-001003 SCREW-WOOD;HH,+,M4,L19,ZPC(BLK),SWRCH18A S.N.A ...3 AA61-01132A VELCRO-A;COMMANDO,BST1 1/4H S.N.A
..2 HC+CW 6005-001003 SCREW-WOOD;HH,+,M4,L19,ZPC(BLK),SWRCH18A S.N.A ...3 AA61-01133A VELCRO-B;COMMANDO,BST1 1/4H S.N.A
..2 HC+CW 6005-001003 SCREW-WOOD;HH,+,M4,L19,ZPC(BLK),SWRCH18A S.N.A ...3 AA61-20129A HOLDER-WIRE;-,NYLON-66,-,-,-,NTR,DAFC-25 S.N.A
..2 HC+CW 6005-001003 SCREW-WOOD;HH,+,M4,L19,ZPC(BLK),SWRCH18A S.N.A ...3 CIS7 AA61-60003J SPRING ETC-CS;-,SUS304,-,-,OD6,N7,OD6,-, S.N.A
..2 BCM+CW6006-001094 SCREW-ASS'Y WOOD;WW,HH,+,M7,L32,ZPC(YEL) S.N.A ...3 AA63-10002A BAND-TIE;NYLON66 V2,L100,NTR S.N.A
..2 AA60-00072B SPACER-COVER,DUST;43,54,62J9,SPONGE 94HF S.N.A ...3 BP61-00108A GUIDE-KONB,CONTROL;42W4,G3676,42W4,ABS H S.N.A
..2 T0081 AA60-10011A SCREW-TAPTITE;-,SWRCH18A,M4,L12,HH,+,PC, S.N.A ...3 T0022 BP64-00076A KNOB CONTROL;42W4,ABS HB G3676 S.N.A
..2 T0081 AA60-10011A SCREW-TAPTITE;-,SWRCH18A,M4,L12,HH,+,PC, S.N.A ...3 T0023 BP64-00077A KNOB POWER;42W4,ABS HB G3676
..2 T0081 AA60-10011A SCREW-TAPTITE;-,SWRCH18A,M4,L12,HH,+,PC, S.N.A ...3 BP64-00078A WINDOW REMOCON-LED;42W4,PC,42W4,PC,CLEARS.N.A
..2 T0115 AA61-00475B BRACKET-CRT,MAIN;54,SECC,T1.6,-,-,-,- ...3 BP64-00095A CABINET-PANEL-CONTROL;42W4,HIPS,HB,G4309 S.N.A
..2 AA61-00618C GUIDE-FLOW;54J8,J7,ABS,IVORY,V0 S.N.A
..2 AA63-10002A BAND-TIE;NYLON66 V2,L100,NTR S.N.A
..2 T0056 AA67-00193A SCREEN-TINT;42W,958*550,T=0.7,P
..2 T0053 AA67-00193B SCREEN FRESNEL;42W,960*552,T=2.0 ASSY COVER REAR
..2 BH73-60304C RUBBER-SUPPORT;DP15LT,CR V0,GRAY,-,14*7* S.N.A
..2 T0118 BP26-00004A TRANS FBT-H/V DISTRIBUTOR;FUW50A002B,PJC 1 M0002 BP90-00120A ASSY COVER REAR;SP42W4HPS/XEF,P55A S.N.A
..2 T0076 BP39-00009A LEAD CONNECTOR-ASSY;P54A/SVP-42W5,UL2547
..2 BP61-00117B BRACKET-SCREEN,ASSY(TOP);42W5,SECC,T1.0, S.N.A ..2 T0081 6003-001022 SCREW-TAPTITE;RH,+,B,M3,L12,ZPC(BLK),SWR S.N.A
...3 T0069 AA60-00091J SPACER-FELT;-,FELT,330X10,-,-,BLK,T0.5,- S.N.A ..2 T0081 6003-001026 SCREW-TAPTITE;RH,+,B,M4,L15,ZPC(BLK),SWR S.N.A
...3 BP61-00043B HOLDER-SENSOR;W9,PC HB,VIOLET S.N.A ..2 T0081 6003-001026 SCREW-TAPTITE;RH,+,B,M4,L15,ZPC(BLK),SWR S.N.A
...3 BP61-00052A HOLDER-WIRE;PJTV,NYLON,66,NATURAL S.N.A ..2 T0081 6003-001026 SCREW-TAPTITE;RH,+,B,M4,L15,ZPC(BLK),SWR S.N.A
...3 T0254 BP61-00118A BRACKET-SCREEN,TB;42W5,SECC,T1.0,SCREEN S.N.A ..2 T0081 6003-001026 SCREW-TAPTITE;RH,+,B,M4,L15,ZPC(BLK),SWR S.N.A
..2 BP61-00119B BRACKET-SCREEN,ASSY(BOT);42W5,SECC,T1.0, S.N.A ..2 T0081 6003-001026 SCREW-TAPTITE;RH,+,B,M4,L15,ZPC(BLK),SWR S.N.A
...3 T0069 AA60-00091J SPACER-FELT;-,FELT,330X10,-,-,BLK,T0.5,- S.N.A ..2 HC+CW 6005-001003 SCREW-WOOD;HH,+,M4,L19,ZPC(BLK),SWRCH18A S.N.A
...3 AA65-00020A CLAMPER CORE-WIRE;55W9,NYLON 66 S.N.A ..2 HC+CW 6005-001003 SCREW-WOOD;HH,+,M4,L19,ZPC(BLK),SWRCH18A S.N.A
...3 BP61-00043B HOLDER-SENSOR;W9,PC HB,VIOLET S.N.A ..2 T0112 AA64-02728A CABINET-BACK,TOP;42W5,HIPS,HB,G4309
...3 BP61-00052A HOLDER-WIRE;PJTV,NYLON,66,NATURAL S.N.A ..2 T0112 AA64-02729A CABINET-BACK,BOT;42W5,HIPS,V2,G4309
...3 T0254 BP61-00118A BRACKET-SCREEN,TB;42W5,SECC,T1.0,SCREEN S.N.A ..2 AA64-60449B INLAY-COVER;SP-434JMF,PS,T0.5,149.3X69.5 S.N.A
..2 BP61-00120A BRACKET-SCREEN,ASSY(R);42W5,SECC,T1.0,SC S.N.A ..2 AA65-30008A CLAMPER CORE-CORD;-,PE,HB,-,BLK,- S.N.A
...3 BP61-00052A HOLDER-WIRE;PJTV,NYLON,66,NATURAL S.N.A ..2 T0108 AA67-00204B MIRROR-BACK;42W5,SSM,870*633*446
...3 T0056 BP61-00121A BRACKET-SCREEN,RL;42W5,SECC,T1.0,SCREEN S.N.A ..2 T0068 BP61-00008A BRACKET-MIRROR,ASSY;42W5,SECC,T1.0,01123 S.N.A
...3 BP61-00043B HOLDER-SENSOR;W9,PC HB,VIOLET S.N.A ...3 AA61-01123A BRACKET-MIRROR;42W5,SECC,T1.0 S.N.A
..2 BP61-00122A BRACKET-SCREEN,ASSY(L);42W5,SECC,T1.0,SC S.N.A ...3 BP60-00005A SPACER-SPONGE;42W5,RUBBER-SPONGE,T3 S.N.A
...3 T0056 BP61-00121A BRACKET-SCREEN,RL;42W5,SECC,T1.0,SCREEN S.N.A ..2 T0092 BP96-00038C ASSY COVER P-TERMINAL,ANT;42W5,HIPS VO,B S.N.A
...3 BP61-00043B HOLDER-SENSOR;W9,PC HB,VIOLET S.N.A ...3 AA64-02837A INLAY-TERMINAL,PAL;COMMANDO,PS SHEET,T0. S.N.A
...3 AA65-00020A CLAMPER CORE-WIRE;55W9,NYLON 66 S.N.A ...3 AA65-00023A TERMINAL-BOARD,ANT;,HIPS V0,BLK S.N.A
...3 BP61-00052A HOLDER-WIRE;PJTV,NYLON,66,NATURAL S.N.A
..2 BP64-00029A INLAY-SUPPORT;42W5,PS SHEET,T0.5,94V0 S.N.A
..2 T0102 BP73-00004A RUBBER-CAP;42W5,SILICONE,WHT,RUBBER
..2 T0257 BP91-00005D ASSY-CABINET,WOOD;,WOOD,MIJU,42W5 S.N.A
ASSY PRT
...3 T0082 3001-001107 SPEAKER;20W,8OHM,95DB,1300HZ
...3 T0076 AA39-00086A LEAD CONNECTOR-ASSY;,2.2UF,200MM,REC,REC 1 BP91-00463A ASSY PRT;SP42W5HPX/XEU,J54A S.N.A
...3 HC+CW AA60-10051A SCREW-WOOD;-,SWRCH18A,M4,L16,PH,+,-,-,ZP S.N.A
...3 AA61-00097A HOLDER-WIRE;-,NYLON 6/6,-,-,-,NTR,- S.N.A ..2 T0026 BP91-00453A ASSY CPT-R;SP42W5HPX/XEU,J54A,CRT-R ASSY
...3 AA61-00506B HOLDER-CRT,MAIN;43,54,62J8,HIPS,-,-,-,BL S.N.A ...3 AA03-00200A CRT MONO;P16LSG03RJA,FREE,3.30mH,2.20mH, S.N.A
...3 AA61-00508D HOLDER-JERSEY;W3,ABS V0,GRAY,G4309 S.N.A ...3 T0117 AA26-30006F TRANS FBT-ANODE CAP ASS'Y;-,FWZ-50A001C,
...3 AA61-00533B BRACKET-GRILLE;43,54,62J8,SECC-1 ,T0.5,- S.N.A ...3 T0078 AA27-00278A DEFLECTION YOKE;-,PT-S0712AC,S/S,PJTCRT(
...3 AA64-02724A CABINET-WOOD;42W5,WOOD,SDE8336R S.N.A ...3 T0079 AA33-00016A MAGNET CONVERGENCE;JH 92LT - 29F,-,29.1M
...3 AA98-00049A ASSY-LEAD,CON;-,LEAD-CON,CORE,AA39-20505 S.N.A ...3 AA60-00126B SPACER-CAP;PROJ,EPDM,BLK S.N.A
....4 T0121 3301-001201 CORE-FERRITE;AE,21x11x32mm,1500,280G ...3 AA60-00127B SPACER-LENS;PROJ,SILICONE,D/GRAY S.N.A
...3 BP61-00019A HOLDER-PALLET;42W5,HIPS HB,BLK S.N.A ...3 AA60-00128B SPACER-CRT;PROJ(65),SILICONE,D/GRAY S.N.A
...3 BP61-00035A BRACKET-GRILLE;42W5,SECC-1,T1.0 S.N.A ...3 T0081 AA60-10011A SCREW-TAPTITE;-,SWRCH18A,M4,L12,HH,+,PC, S.N.A
...3 AA61-00094C HOLDER-RAIL;PCJ533R,ABS,-,-,-,BLK,HB,480 S.N.A ...3 AA61-00056B BRACKET-LENS;PROJECTION,SECC,T1.6,-,-,-, S.N.A
...3 T0082 3001-001353 SPEAKER;25W,8OHM,90DB+/-3DB,60HZ+/-12HZ ...3 AA61-00806B CASE-COUPLER,R;PROJ,ALDC,T8,BLK S.N.A
..2 T0017 BP91-00006N ASSY-FRONT,MASK;,HIPS HB,G4309,SV012P,42 ...3 T0114 AA61-00810B HOLDER-CAP;PROJ,PC,CLR
...3 T0081 6003-001019 SCREW-TAPTITE;RH,+,B,M4,L12,ZPC(BLK),SWR ...3 T0109 AA67-00187A LENS-ASSY;DELTA71,CLEAR A/B
...3 AA61-01133A VELCRO-B;COMMANDO,BST1 1/4H S.N.A ...3 T0051 AA67-00188A LENS;DELTA71,RED C ELEMENT
...3 T0018 AA64-02727P CABINET-FRONT,MASK TOP;42W4,HIPS,HB,G430 ...3 T0107 AA91-00722A ASSY-BRKT,CRT;,SECC T1.6,PROJ
...3 T0057 BP64-00177A BADGE-BRAND;ALL,AL,T1.5,70,11.3,BLK,SILI S.N.A ....4 T0072 AA61-00473B BRACKET-CRT;53,SECC,T1.6,-,-,-,- S.N.A
...3 T0102 BP73-00004A RUBBER-CAP;42W5,SILICONE,WHT,RUBBER ....4 AA61-00615B BRACKET-EARTH;54J8,PBS,T0.5,-,-,-,- S.N.A
..2 T0002 BP91-00007E ASSY-FRONT,BOT;,HIPS HB,G4309,SV012P+SV7 ....4 AA61-00812A SPRING ETC-WIRE;PROJ,STS,3.6 S.N.A
...3 T0081 6003-001019 SCREW-TAPTITE;RH,+,B,M4,L12,ZPC(BLK),SWR ...3 BP61-00091A HOLDER-CRT;PJTV,PCABS GF20%,BLUE S.N.A
...3 AA61-01132A VELCRO-A;COMMANDO,BST1 1/4H S.N.A ...3 BP61-00079A HOLDER-DY;,PJTV,T0.5,NYLON66 V2 S.N.A
...3 T0016 AA64-02725B CABINET-FRONT,BOT;42W5,HIPS,HB,G4309,SV0 ...3 AA63-00076B SPACER-LENS;FELT,W7,BLK,T0.8 S.N.A
Samsung Electronics 3-3
Electrical Parts List
Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark
...3 T0076 AA39-00018A LEAD CONNECTOR-ASSY;,UL1015#22,UL/CSA,1P ...3 L801 AA29-00004A FILTER LINE NOISE;-,20UH,3A,AC80-260V,TQ
..2 T0027 BP91-00454A ASSY CPT-G;SP42W5HPX/XEU,J54A,CRT-G ASSY ...3 AA39-30007A CBF IF;-,T,100mm,1365#26
...3 AA03-00201A CRT MONO;P16LSG03HKA,FREE,3.30mH,2.20mH, S.N.A ...3 CG AA63-00396B SHIELD CASE-TOP;PRJT,P54A,SPTE,T0.5,-,-, S.N.A
...3 T0117 AA26-30006F TRANS FBT-ANODE CAP ASS'Y;-,FWZ-50A001C, ...3 MICOM AA63-00396B SHIELD CASE-TOP;PRJT,P54A,SPTE,T0.5,-,-, S.N.A
...3 T0078 AA27-00278A DEFLECTION YOKE;-,PT-S0712AC,S/S,PJTCRT( ...3 CG AA63-00397B SHIELD CASE-BOT;PRJT,P54A,SPTE,T0.5,-,-, S.N.A
...3 T0076 AA39-00018A LEAD CONNECTOR-ASSY;,UL1015#22,UL/CSA,1P ...3 MICOM AA63-00397B SHIELD CASE-BOT;PRJT,P54A,SPTE,T0.5,-,-, S.N.A
...3 AA60-00125B SPACER-CRT;PROJ,SILICONE,D/GRAY S.N.A ...3 IC801 AA96-00475C ASSY H/S;SILICON-OIL,KA278R09,KA7808,AA6 S.N.A
...3 AA60-00126B SPACER-CAP;PROJ,EPDM,BLK S.N.A ....4 0205-000129 GREASE-SILICON;SC102,JAPAN S.N.A
...3 AA60-00127B SPACER-LENS;PROJ,SILICONE,D/GRAY S.N.A ....4 T0087 1203-000293 IC-POSI.FIXED REG.;7808,TO-220,3P,-,PLAS
...3 T0081 AA60-10011A SCREW-TAPTITE;-,SWRCH18A,M4,L12,HH,+,PC, S.N.A ....4 T0123 1203-002003 IC-VOLTAGE REGULATOR;278R09,TO-220,4P,-,
...3 AA61-00056B BRACKET-LENS;PROJECTION,SECC,T1.6,-,-,-, S.N.A ....4 T0081 6003-000334 SCREW-TAPTITE;RH,+,2S,M3,L6,ZPC(YEL),SWR
...3 AA61-00807B CASE-COUPLER,G;PROJ,ALDC,T8,BLK S.N.A ....4 AA62-00066B HEAT SINK;D2,D3,AL ,T1.0,89,70,-,AA62-00 S.N.A
...3 AA61-00809B HOLDER-CRT;PROJ,PC/ABS GF 20%,BLK S.N.A ....4 T0123 1203-001978 IC-VOLTAGE REGULATOR;KA278RA05,TO-220F,4
...3 T0114 AA61-00810B HOLDER-CAP;PROJ,PC,CLR ...3 IC601 AA96-00623E ASSY H/S;SCREW,MAIN,AA62-00056A,TDA7265, S.N.A
...3 T0109 AA67-00187A LENS-ASSY;DELTA71,CLEAR A/B ....4 0205-000129 GREASE-SILICON;SC102,JAPAN S.N.A
...3 T0051 AA67-00189A LENS;DELTA71,GREEN C ELEMENT ....4 T0124 1201-001026 IC-POWER AMP;7265,ZIP,11P,19.6MIL,DUAL,1
...3 T0107 AA91-00722A ASSY-BRKT,CRT;,SECC T1.6,PROJ ....4 T0081 6003-000334 SCREW-TAPTITE;RH,+,2S,M3,L6,ZPC(YEL),SWR
....4 T0072 AA61-00473B BRACKET-CRT;53,SECC,T1.6,-,-,-,- S.N.A ....4 AA62-00056A HEAT SINK-PS;-,-,T1.0,-,41*35*70,D2,-,-, S.N.A
....4 AA61-00615B BRACKET-EARTH;54J8,PBS,T0.5,-,-,-,- S.N.A ...3 BP97-00013A ASSY ROBOT;0,0,0,0 S.N.A
....4 AA61-00812A SPRING ETC-WIRE;PROJ,STS,3.6 S.N.A ....4 IC012 1203-000165 IC-POSI.ADJUST REG.;78R12,TO-220,4P,-,PL
...3 BP61-00079A HOLDER-DY;,PJTV,T0.5,NYLON66 V2 S.N.A ....4 CN906 3711-003641 CONNECTOR-HEADER;BOX,12P,1R,2.5mm,STRAIG
...3 AA63-00076B SPACER-LENS;FELT,W7,BLK,T0.8 S.N.A ....4 CN906 3711-003973 CONNECTOR-HEADER;BOX,11P,1R,2.5mm,STRAIG
..2 T0028 BP91-00455A ASSY CPT-B;SP42W5HPX/XEU,J54A,CRT-B ASSY ....4 CN906 3711-003975 CONNECTOR-HEADER;BOX,14P,1R,2.5mm,STRAIG
...3 AA03-00202A CRT MONO;P16LSG03BMB,FREE,3.30mH,2.20mH, S.N.A ....4 BP97-00058A ASSY AUTO;SP42W5HPS/XEU,J54A S.N.A
...3 T0117 AA26-30006F TRANS FBT-ANODE CAP ASS'Y;-,FWZ-50A001C, .....5 D609 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
...3 T0078 AA27-00278A DEFLECTION YOKE;-,PT-S0712AC,S/S,PJTCRT( .....5 D608 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
...3 T0079 AA33-00018A MAGNET CONVERGENCE;JH 92LT - 36F,-,29.1M .....5 D607 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
...3 T0076 AA39-00018A LEAD CONNECTOR-ASSY;,UL1015#22,UL/CSA,1P .....5 D605 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
...3 AA60-00126B SPACER-CAP;PROJ,EPDM,BLK S.N.A .....5 D601 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
...3 AA60-00127B SPACER-LENS;PROJ,SILICONE,D/GRAY S.N.A .....5 D604 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
...3 AA60-00128B SPACER-CRT;PROJ(65),SILICONE,D/GRAY S.N.A .....5 T0083 0402-000546 DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T
...3 T0081 AA60-10011A SCREW-TAPTITE;-,SWRCH18A,M4,L12,HH,+,PC, S.N.A .....5 DZ016 0403-000700 DIODE-ZENER;TZP33A,33V,31-35V,1W,DO-41,T
...3 AA61-00056B BRACKET-LENS;PROJECTION,SECC,T1.6,-,-,-, S.N.A .....5 DZ016 0403-001039 DIODE-ZENER;MA2560,56V,52-60V,1W,DO-41,T
...3 AA61-00808B CASE-COUPLER,B;PROJ,ALDC,T8,BLK S.N.A .....5 DZ016 0403-001319 DIODE-ZENER;MTZJ4.7C,4.68-4.93V,500mW,DO
...3 T0114 AA61-00810B HOLDER-CAP;PROJ,PC,CLR .....5 DZ016 0403-001325 DIODE-ZENER;MTZJ15C,14.35-15.09V,500mW,D
...3 T0109 AA67-00187A LENS-ASSY;DELTA71,CLEAR A/B .....5 Q603 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
...3 T0051 AA67-00190A LENS;DELTA71,CLEAR C ELEMENT .....5 Q602 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
...3 T0107 AA91-00722A ASSY-BRKT,CRT;,SECC T1.6,PROJ .....5 Q601 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T
....4 T0072 AA61-00473B BRACKET-CRT;53,SECC,T1.6,-,-,-,- S.N.A .....5 R125 2001-000007 R-CARBON;3KOHM,5%,1/8W,AA,TP,1.8X3.2MM
....4 AA61-00615B BRACKET-EARTH;54J8,PBS,T0.5,-,-,-,- S.N.A .....5 R125 2001-000008 R-CARBON;15KOHM,5%,1/8W,AA,TP,1.8X3.2MM
....4 AA61-00812A SPRING ETC-WIRE;PROJ,STS,3.6 S.N.A .....5 R808 2001-000066 R-CARBON(S);10KOHM,5%,1/2W,AA,TP,2.4X6.4
...3 BP61-00091A HOLDER-CRT;PJTV,PCABS GF20%,BLUE S.N.A .....5 R810 2001-000066 R-CARBON(S);10KOHM,5%,1/2W,AA,TP,2.4X6.4
...3 BP61-00079A HOLDER-DY;,PJTV,T0.5,NYLON66 V2 S.N.A .....5 R125 2001-000273 R-CARBON;100KOHM,5%,1/8W,AA,TP,1.8X3.2MM
...3 AA63-00076B SPACER-LENS;FELT,W7,BLK,T0.8 S.N.A .....5 R125 2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
.....5 R125 2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
.....5 R125 2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
ASSY FIXING .....5 R125
.....5 R125
2001-000290
2001-000331
R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R-CARBON;12KOHM,5%,1/8W,AA,TP,1.8X3.2MM
.....5 R125 2001-000508 R-CARBON;220KOHM,5%,1/8W,AA,TP,1.8X3.2MM
1 BP91-00807Z ASSY FIXING;SP43T7HPX/SPL,J54A,CP2 S.N.A .....5 R125 2001-000660 R-CARBON;33KOHM,5%,1/8W,AA,TP,1.8X3.2MM
.....5 R125 2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM
..2 T0081 6003-001023 SCREW-TAPTITE;RWH,+,B,M3,L10,ZPC(YEL),SW S.N.A .....5 R125 2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM
..2 T0081 6003-001023 SCREW-TAPTITE;RWH,+,B,M3,L10,ZPC(YEL),SW S.N.A .....5 R125 2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM
..2 T0081 6003-001023 SCREW-TAPTITE;RWH,+,B,M3,L10,ZPC(YEL),SW S.N.A .....5 R125 2001-000739 R-CARBON;4.7MOHM,5%,1/8W,AA,TP,1.8X3.2MM
..2 T0076 AA39-20010B LEAD CONNECTOR-ASSY;,1P,500,YFH800-01,S, .....5 R125 2001-000739 R-CARBON;4.7MOHM,5%,1/8W,AA,TP,1.8X3.2MM
..2 T0070 AA61-01127A HOLDER-CHASSIS;COMMANDO,HIPS V0,G4309 S.N.A .....5 R125 2001-000739 R-CARBON;4.7MOHM,5%,1/8W,AA,TP,1.8X3.2MM
..2 AA63-10002A BAND-TIE;NYLON66 V2,L100,NTR S.N.A .....5 R125 2001-000739 R-CARBON;4.7MOHM,5%,1/8W,AA,TP,1.8X3.2MM
..2 AA65-00011B CLAMPER CORE-WIRE;ALL MODEL,NYLON 66,V2, S.N.A .....5 R125 2001-000739 R-CARBON;4.7MOHM,5%,1/8W,AA,TP,1.8X3.2MM
..2 AA65-30018A CLAMPER CORE-WIRE;DONG-A,NYLON-66,-,-,-, S.N.A .....5 R125 2001-000780 R-CARBON;470OHM,5%,1/8W,AA,TP,1.8X3.2MM
..2 AA65-30104C CLAMPER CORE-WIRE;ALL MODEL,NYLON 66,V2, S.N.A .....5 R125 2001-000780 R-CARBON;470OHM,5%,1/8W,AA,TP,1.8X3.2MM
..2 AA65-30110A CLAMPER CORE-WIRE;ALL MODEL,NYLON 66,V2, S.N.A .....5 R125 2001-000812 R-CARBON;5.6KOHM,5%,1/8W,AA,TP,1.8X3.2MM
..2 T0066 AA96-20126C ASSY POWER CORD;-,EP3/YES(HK),H/C150,MP5 S.N.A .....5 R125 2001-000812 R-CARBON;5.6KOHM,5%,1/8W,AA,TP,1.8X3.2MM
...3 3811-000401 WIRE-PVC CU;BCWA,300V,ROLL,17/0.16mm,#22 S.N.A .....5 R125 2001-000812 R-CARBON;5.6KOHM,5%,1/8W,AA,TP,1.8X3.2MM
...3 AA61-20284A HOLDER;P-CORD,PP,-,-,-,BLK,VO,KE-002 S.N.A .....5 R125 2001-001000 R-CARBON;82KOHM,5%,1/8W,AA,TP,1.8X3.2MM
...3 T0077 AA39-10007X CBF POWER CORD;-,EP3/YES(HK),H03VVH2-F,2 .....5 R801 2001-001077 R-CARBON(S);150OHM,5%,1/2W,AA,TP,2.4X6.4
..2 BP39-00047A LEAD CONNECTOR;P55A/HCM4215W,UL2547#26,U .....5 R681 2001-001146 R-CARBON(S);4.7OHM,5%,1/2W,AA,TP,2.4X6.4
.....5 R682 2001-001146 R-CARBON(S);4.7OHM,5%,1/2W,AA,TP,2.4X6.4
.....5 R814 2003-001098 R-METAL OXIDE(S);22Kohm,5%,3W,AA,TP,6x16
ASSY CHASSIS .....5 R024 2004-001390 R-METAL(S);1Kohm,2%,1/2W,AA,TP,2.4x6.4mm
.....5 R024 2004-001390 R-METAL(S);1Kohm,2%,1/2W,AA,TP,2.4x6.4mm
.....5 R024 2004-001970 R-METAL(S);1.8Kohm,1%,1/2W,AA,TP,6.5x2.5
1 M0017 BP91-01004A ASSY CHASSIS;SP42W4HBX/XEU,P55A
.....5 R024 2004-001970 R-METAL(S);1.8Kohm,1%,1/2W,AA,TP,6.5x2.5
.....5 R024 2004-001970 R-METAL(S);1.8Kohm,1%,1/2W,AA,TP,6.5x2.5
..2 T0073 AA94-05967A ASSY PCB MAIN(OPT);SP42W5HP,J54A, ,100HZ
.....5 R024 2004-001970 R-METAL(S);1.8Kohm,1%,1/2W,AA,TP,6.5x2.5
...3 C701 2401-001068 C-AL;3300uF,20%,50V,GP,BK,22x40,10
.....5 R024 2004-002019 R-METAL(S);33Kohm,1%,1/2W,AA,TP,2.5x6.5m
...3 CN906 3711-003046 CONNECTOR-HEADER;BOX,9P,1R,2.5MM,STRAIGH
.....5 R024 2004-002019 R-METAL(S);33Kohm,1%,1/2W,AA,TP,2.5x6.5m
...3 JA701 3722-000195 JACK-SCART;42P,-,SN,BLK,NO
.....5 C695 2301-000192 C-FILM,PEF;1nF,5%,50V,TP,5.3x10mm,5mm
3-4 Samsung Electronics
Electrical Parts List
Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark
.....5 C694 2301-000192 C-FILM,PEF;1nF,5%,50V,TP,5.3x10mm,5mm .....5 L114 2701-000114 INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
.....5 C689 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m .....5 L115 2701-000114 INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
.....5 C687 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m .....5 L116 2701-000114 INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
.....5 C682 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m .....5 L117 2701-000114 INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
.....5 C701 2401-002075 C-AL;4.7uF,20%,50V,GP,TP,5x11,5 .....5 L118 2701-000114 INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
.....5 C701 2401-000039 C-AL;1000uF,20%,16V,GP,TP,10x16,5 .....5 L107 2701-000114 INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
.....5 C701 2401-000039 C-AL;1000uF,20%,16V,GP,TP,10x16,5 .....5 L108 2701-000114 INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
.....5 C701 2401-000192 C-AL;1000uF,20%,50V,GP,TP,16x25,7.5 .....5 L109 2701-000114 INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
.....5 C701 2401-000192 C-AL;1000uF,20%,50V,GP,TP,16x25,7.5 .....5 L112 2701-000114 INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
.....5 C701 2401-000302 C-AL;100uF,20%,25V,GP,TP,6.3x11,5 .....5 L111 2701-000114 INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
.....5 C701 2401-000302 C-AL;100uF,20%,25V,GP,TP,6.3x11,5 .....5 L110 2701-000114 INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
.....5 C701 2401-000360 C-AL;100uF,20%,50V,GP,TP,8x11.5,5 .....5 L128 2701-000114 INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
.....5 C701 2401-000360 C-AL;100uF,20%,50V,GP,TP,8x11.5,5 .....5 L129 2701-000114 INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm
.....5 C701 2401-000360 C-AL;100uF,20%,50V,GP,TP,8x11.5,5 .....5 L703 2701-000115 INDUCTOR-AXIAL;10uH,10%,3x7mm
.....5 C701 2401-000471 C-AL;10uF,20%,50V,BP,TP,5x11,5mm .....5 L127 2701-000115 INDUCTOR-AXIAL;10uH,10%,3x7mm
.....5 C701 2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5 .....5 L106 2701-000115 INDUCTOR-AXIAL;10uH,10%,3x7mm
.....5 C701 2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5 .....5 L101 2701-000115 INDUCTOR-AXIAL;10uH,10%,3x7mm
.....5 C701 2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5 .....5 L104 2701-000115 INDUCTOR-AXIAL;10uH,10%,3x7mm
.....5 C701 2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5 .....5 L706 2701-001030 INDUCTOR-AXIAL;43uH,10%,5x14mm
.....5 C701 2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5 .....5 L705 2701-001030 INDUCTOR-AXIAL;43uH,10%,5x14mm
.....5 C701 2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5 .....5 L606 3301-000287 BEAD-AXIAL;3.5x1.0x6.0mm,1500,2400G
.....5 C701 2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5 .....5 L605 3301-000287 BEAD-AXIAL;3.5x1.0x6.0mm,1500,2400G
.....5 C701 2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5 .....5 GT01 AA60-40014A PIN-GT,ASSY;AUTO S.N.A
.....5 C701 2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5 .....5 GT02 AA60-40014A PIN-GT,ASSY;AUTO S.N.A
.....5 C701 2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5 .....5 GT03 AA60-40014A PIN-GT,ASSY;AUTO S.N.A
.....5 C701 2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5 .....5 GT04 AA60-40014A PIN-GT,ASSY;AUTO S.N.A
.....5 C701 2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5 .....5 BP97-00041A ASSY SMD;SP42W5HPS/XEU,J54A S.N.A
.....5 C701 2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5 ......6DZ016 0403-000314 DIODE-ZENER;RLZJ9.1B,8.80-9.30V,500MW,LL
.....5 C701 2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5 ......6DZ016 0403-000314 DIODE-ZENER;RLZJ9.1B,8.80-9.30V,500MW,LL
.....5 C701 2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5 ......6DZ016 0403-000314 DIODE-ZENER;RLZJ9.1B,8.80-9.30V,500MW,LL
.....5 C701 2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5 ......6DZ016 0403-000314 DIODE-ZENER;RLZJ9.1B,8.80-9.30V,500MW,LL
.....5 C701 2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5 ......6DZ016 0403-000314 DIODE-ZENER;RLZJ9.1B,8.80-9.30V,500MW,LL
.....5 C701 2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5 ......6DZ016 0403-001016 DIODE-ZENER;RLZ6.2B,5.96-6.27V,500MW,LL-
.....5 C701 2401-000603 C-AL;1UF,20%,50V,GP,TP,5X11,2 ......6DZ016 0403-001016 DIODE-ZENER;RLZ6.2B,5.96-6.27V,500MW,LL-
.....5 C701 2401-000603 C-AL;1UF,20%,50V,GP,TP,5X11,2 ......6DZ016 0403-001016 DIODE-ZENER;RLZ6.2B,5.96-6.27V,500MW,LL-
.....5 C701 2401-000603 C-AL;1UF,20%,50V,GP,TP,5X11,2 ......6DZ016 0403-001016 DIODE-ZENER;RLZ6.2B,5.96-6.27V,500MW,LL-
.....5 C701 2401-000603 C-AL;1UF,20%,50V,GP,TP,5X11,2 ......6DZ016 0403-001016 DIODE-ZENER;RLZ6.2B,5.96-6.27V,500MW,LL-
.....5 C701 2401-000603 C-AL;1UF,20%,50V,GP,TP,5X11,2 ......6DZ016 0403-001016 DIODE-ZENER;RLZ6.2B,5.96-6.27V,500MW,LL-
.....5 C701 2401-000832 C-AL;220uF,20%,25V,GP,TP,8x11.5,5 ......6DZ016 0403-001117 DIODE-ZENER;RLZ12B,5%,500mW,LL-34,TP
.....5 C701 2401-000962 C-AL;22uF,20%,50V,GP,TP,5x11,5 ......6DZ016 0403-001117 DIODE-ZENER;RLZ12B,5%,500mW,LL-34,TP
.....5 C701 2401-000962 C-AL;22uF,20%,50V,GP,TP,5x11,5 ......6DZ016 0403-001117 DIODE-ZENER;RLZ12B,5%,500mW,LL-34,TP
.....5 C701 2401-000962 C-AL;22uF,20%,50V,GP,TP,5x11,5 ......6Q711 0501-000344 TR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOT-
.....5 C701 2401-000962 C-AL;22uF,20%,50V,GP,TP,5x11,5 ......6Q709 0501-000344 TR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOT-
.....5 C701 2401-000962 C-AL;22uF,20%,50V,GP,TP,5x11,5 ......6Q708 0501-000344 TR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOT-
.....5 C701 2401-000962 C-AL;22uF,20%,50V,GP,TP,5x11,5 ......6Q712 0501-000344 TR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOT-
.....5 C701 2401-000962 C-AL;22uF,20%,50V,GP,TP,5x11,5 ......6Q713 0501-000344 TR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOT-
.....5 C701 2401-000962 C-AL;22uF,20%,50V,GP,TP,5x11,5 ......6Q714 0501-000344 TR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOT-
.....5 C701 2401-000962 C-AL;22uF,20%,50V,GP,TP,5x11,5 ......6Q715 0501-000344 TR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOT-
.....5 C701 2401-000962 C-AL;22uF,20%,50V,GP,TP,5x11,5 ......6Q716 0501-000344 TR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOT-
.....5 C701 2401-000962 C-AL;22uF,20%,50V,GP,TP,5x11,5 ......6Q107 0501-000344 TR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOT-
.....5 C701 2401-000962 C-AL;22uF,20%,50V,GP,TP,5x11,5 ......6Q108 0501-000344 TR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOT-
.....5 C701 2401-000962 C-AL;22uF,20%,50V,GP,TP,5x11,5 ......6Q701 0501-000344 TR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOT-
.....5 C701 2401-000962 C-AL;22uF,20%,50V,GP,TP,5x11,5 ......6Q702 0501-000344 TR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOT-
.....5 C701 2401-000962 C-AL;22uF,20%,50V,GP,TP,5x11,5 ......6Q703 0501-000344 TR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOT-
.....5 C701 2401-001192 C-AL;33uF,20%,50V,GP,TP,6.3x11,5 ......6Q707 0501-000344 TR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOT-
.....5 C701 2401-001397 C-AL;470uF,20%,25V,GP,TP,10x16,5 ......6Q706 0501-000344 TR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOT-
.....5 C701 2401-000025 C-AL;100uF,20%,16V,GP,TP,6.3x11,5 ......6Q705 0501-000344 TR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOT-
.....5 C701 2401-000025 C-AL;100uF,20%,16V,GP,TP,6.3x11,5 ......6Q704 0501-000344 TR-SMALL SIGNAL;KSC1623-G,NPN,200mW,SOT-
.....5 C701 2401-000025 C-AL;100uF,20%,16V,GP,TP,6.3x11,5 ......6IC101 0904-001031 IC-I/O SUPPORT CHIP;8574,8BIT,S0P,16P,-,
.....5 C701 2401-000025 C-AL;100uF,20%,16V,GP,TP,6.3x11,5 ......6IC106 1001-001177 IC-VIDEO SWITCH;TEA6425D,VIDEO SWITCH ,S
.....5 C701 2401-000025 C-AL;100uF,20%,16V,GP,TP,6.3x11,5 ......6IC106 1001-001177 IC-VIDEO SWITCH;TEA6425D,VIDEO SWITCH ,S
.....5 C701 2401-002009 C-AL;100uF,20%,16V,GP,TP,6.3x7,5 ......6IC605 1001-001178 IC-AUDIO SWITCH;TEA6422D,AUDIO SWITCH ,S
.....5 C701 2401-002144 C-AL;47uF,20%,16V,GP,TP,5x11,5 ......6IC704 1002-001048 IC-A/D&D/A CONVERTER;PCF8591T,8BIT,SOP,1
.....5 C701 2401-002300 C-AL;47uF,20%,50V,GP,TP,6.3x11,5 ......6IC705 1002-001048 IC-A/D&D/A CONVERTER;PCF8591T,8BIT,SOP,1
.....5 C701 2401-002300 C-AL;47uF,20%,50V,GP,TP,6.3x11,5 ......6DU410 1201-000541 IC-OP AMP;062,SOP,8P,153MIL,DUAL,6V/mV,P
.....5 C701 2401-002459 C-AL;220uF,20%,25V,LZ,TP,10x16,5 ......6R188 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608
.....5 C701 2401-002459 C-AL;220uF,20%,25V,LZ,TP,10x16,5 ......6R194 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608
.....5 C701 2401-002459 C-AL;220uF,20%,25V,LZ,TP,10x16,5 ......6R904 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608
.....5 C701 2401-002463 C-AL;470uF,20%,16V,GP,TP,8x11.5,5 ......6R101 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608
.....5 C701 2401-002463 C-AL;470uF,20%,16V,GP,TP,8x11.5,5 ......6R117 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608
.....5 C701 2401-002619 C-AL;47uF,20%,25V,GP,TP,5x11,5 ......6R129 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608
.....5 C701 2401-002619 C-AL;47uF,20%,25V,GP,TP,5x11,5 ......6R778 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608
.....5 C701 2401-002619 C-AL;47uF,20%,25V,GP,TP,5x11,5 ......6R779 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608
.....5 C701 2401-002619 C-AL;47uF,20%,25V,GP,TP,5x11,5 ......6R196 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608
.....5 C701 2401-002619 C-AL;47uF,20%,25V,GP,TP,5x11,5 ......6R79B 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608
.....5 L105 2701-000106 INDUCTOR-AXIAL;1.5uH,10%,3x7mm ......6R170 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608
.....5 L113 2701-000114 INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm ......6R195 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608
Samsung Electronics 3-5
Electrical Parts List
Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark
......6R706 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 ......6R648 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608
......6R708 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 ......6R797 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608
......6R788 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 ......6R798 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608
......6R791 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 ......6R750 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608
......6R187 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 ......6R688 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608
......6R193 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 ......6R755 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608
......6R626 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 ......6R771 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608
......6R627 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 ......6R774 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608
......6R646 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 ......6R780 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608
......6R647 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 ......6R181 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608
......6R625 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 ......6R182 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608
......6R624 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 ......6R183 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608
......6R602 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 ......6R184 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608
......6R601 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 ......6R604 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608
......6R180 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 ......6R611 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608
......6R703 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 ......6R748 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608
......6R773 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 ......6R746 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608
......6R772 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 ......6R768 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608
......6R757 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 ......6R769 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608
......6R756 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 ......6R770 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608
......6R724 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 ......6R191 2007-000092 R-CHIP;15Kohm,5%,1/10W,TP,1608
......6R722 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 ......6R190 2007-000092 R-CHIP;15Kohm,5%,1/10W,TP,1608
......6R711 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 ......6R176 2007-000092 R-CHIP;15Kohm,5%,1/10W,TP,1608
......6R709 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 ......6R185 2007-000092 R-CHIP;15Kohm,5%,1/10W,TP,1608
......6R707 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 ......6R741 2007-000093 R-CHIP;20Kohm,5%,1/10W,TP,1608
......6R179 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 ......6R744 2007-000093 R-CHIP;20Kohm,5%,1/10W,TP,1608
......6R114 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 ......6R716 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608
......6R113 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 ......6R704 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608
......6R112 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 ......6R110 2007-000098 R-CHIP;56Kohm,5%,1/10W,TP,1608
......6R111 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 ......6R105 2007-000098 R-CHIP;56Kohm,5%,1/10W,TP,1608
......6R108 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 ......6R612 2007-000134 R-CHIP;33Kohm,5%,1/10W,TP,1608
......6R107 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 ......6R607 2007-000134 R-CHIP;33Kohm,5%,1/10W,TP,1608
......6R103 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 ......6R609 2007-000329 R-CHIP;11Kohm,5%,1/10W,TP,1608
......6R102 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 ......6R608 2007-000329 R-CHIP;11Kohm,5%,1/10W,TP,1608
......6R116 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 ......6R109 2007-000828 R-CHIP;39Kohm,1%,1/10W,TP,1608
......6R178 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 ......6R104 2007-000828 R-CHIP;39Kohm,1%,1/10W,TP,1608
......6R177 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 ......6R753 2007-001010 R-CHIP;51Kohm,5%,1/10W,TP,1608
......6R172 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 ......6R751 2007-001010 R-CHIP;51Kohm,5%,1/10W,TP,1608
......6R171 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 ......6R610 2007-001010 R-CHIP;51Kohm,5%,1/10W,TP,1608
......6R122 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 ......6R605 2007-001010 R-CHIP;51Kohm,5%,1/10W,TP,1608
......6R123 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 ......6R726 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608
......6R124 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 ......6R723 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608
......6R128 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 ......6R721 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608
......6R730 2007-000076 R-CHIP;330ohm,5%,1/10W,TP,1608 ......6R715 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608
......6R718 2007-000076 R-CHIP;330ohm,5%,1/10W,TP,1608 ......6R714 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608
......6R720 2007-000076 R-CHIP;330ohm,5%,1/10W,TP,1608 ......6R727 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608
......6R736 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 ......6R799 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608
......6R737 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 ......6R792 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608
......6R781 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 ......6R789 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608
......6R782 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 ......6R731 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608
......6R783 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 ......6R729 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608
......6R728 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 ......6R713 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608
......6R705 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 ......6R131 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608
......6R793 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 ......6R130 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608
......6R79A 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 ......6R121 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608
......6R790 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 ......6R120 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608
......6R784 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 ......6R119 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608
......6R785 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 ......6R118 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608
......6R786 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 ......6R135 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608
......6R787 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 ......6R712 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608
......6R630 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 ......6R710 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608
......6R631 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 ......6R701 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608
......6R636 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 ......6R136 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608
......6R637 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 ......6R173 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608
......6R638 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 ......6R702 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608
......6R603 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 ......6R174 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608
......6R106 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 ......6R717 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608
......6R175 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 ......6R719 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608
......6R189 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 ......6R613 2007-001179 R-CHIP;8.2Kohm,5%,1/10W,TP,1608
......6R651 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 ......6R606 2007-001179 R-CHIP;8.2Kohm,5%,1/10W,TP,1608
......6R652 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 ......6C120 2203-000236 C-CERAMIC,CHIP;0.1NF,5%,50V,C0G,TP,1608
......6R653 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 ......6C120 2203-000236 C-CERAMIC,CHIP;0.1NF,5%,50V,C0G,TP,1608
......6R650 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 ......6C120 2203-000236 C-CERAMIC,CHIP;0.1NF,5%,50V,C0G,TP,1608
......6R640 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 ......6C120 2203-000236 C-CERAMIC,CHIP;0.1NF,5%,50V,C0G,TP,1608
......6R641 2007-000078 R-CHIP;◦ Jabse Service Manual Search 2026 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
