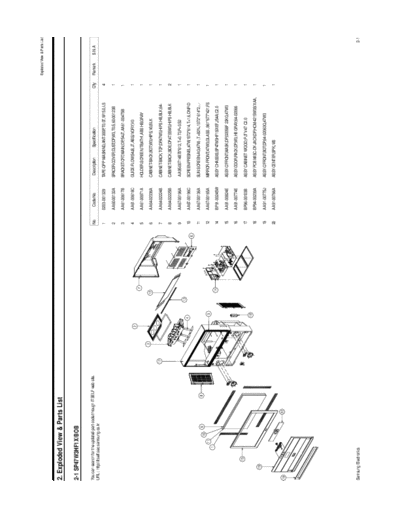

Image preview - the first page of the document
![Samsung_SP42W4HBX_SP47W4HFX1_20030708181639593_j54a_evapl-10_[SM]](/pics/5c26da280d5b8.gif)
>> Download Samsung_SP42W4HBX_SP47W4HFX1_20030708181639593_j54a_evapl-10_[SM] documenatation <<
Text preview - extract from the document
Exploded View & Parts List
2. Exploded View & Parts List
2-1 SP47W3HF1X/BOB
You can search for the updated part code through ITSELF web site. No Code No Description Specification Q'ty Remark S.N.A
URL : http://itself.sec.samsung.co.kr
1 0203-001329 TAPE-OPP MASKING;ANT-300P,T0.07,W15.0,L5 4
2 AA60-00132A SPACER-COVER,DUST;DP,W3,T0.5,60-00123B 1
3 AA61-00617B BRACKET-CRT,MAIN;DP,54J7,AA61-00475B 1
4 AA61-00618C GUIDE-FLOW;54J8,J7,ABS,IVORY,V0 1
5 AA61-00971A HOLDER-SCREEN,TB;47H1,ABS HB,GRAY 1
6 AA64-02336A CABINET-BACK,BOT;W3,HIPS,V0,BLK 1
7 AA64-02224B CABINET-BACK,TOP;DP,47W3,HIPS HB,BLK,64- 1
8 AA64-02225B CABINET-BACK,SIDE;DP,47.55W3,HIPS HB,BLK 2
9 AA67-00196A AA95-00714B70*612,T=0.73,P=0.52 1
10 AA67-00196C SCREEN-FRESNEL;47W,1072*614,T=1.6,DNP-D 1
11 AA67-00136A SUN SCREEN-AG;47W,-,T=82%,1072*614*2,-,- 1
12 AA67-00165A MIRROR-FRONT;47W3,GLASS ,861*677*421,FS 1
14 BP91-00245W ASSY CHASSIS;SP47W3HF1S/XEF,J54A,C2.0 1
15 AA91-00824E ASSY-C/FRONT,MASK;DP,02058F 22KG,47W3 1
16 AA91-00774E ASSY-DOOR,RACK;DP,W3,HB GRAY,64-02066 1
17 BP96-00103B ASSY CABINET WOOD; PJTV 47 C2.0 1
18 BP94-00239A ASSY PCB MISC-DY-JACK;DP,HCM4215W3S/XAA, 1
19 AA91-00775J ASSY-C/FRONT,BOT;DP,64-02063Q,47W3 1
20 AA91-00766A ASSY-CENTER,SPK;,W3 1
Samsung Electronics 2-1
Exploded View & Parts List
2-2 SP42W4HBX/XEU
You can search for the updated part code through ITSELF web site. o Code No Description Specification Q'ty Remark S.N.A
URL : http://itself.sec.samsung.co.kr
1 BP91-00006N ASSY-FRONT,MASK;,HIPS HB,G4309,SV012P,42 1 T0017
2 AA64-02724A CABINET-WOOD;42W5,WOOD,SDE8336R 1 S.N.A
3 SUN SCREEN 1
4 AA67-00193A SCREEN-TINT;42W,958*550,T=0.7,P 1 T0056
5 AA67-00193B SCREEN FRESNEL;42W,960*552,T=2.0 1 T0053
6 BP64-00177A BADGE-BRAND;ALL,AL,T1.5,70,11.3,BLK,SILI 1 T0057 S.N.A
7 BP59-00005A MODULE-FOCUS PACK ASS'Y;PJT TV,F301-P03A 1 T0103
8 BP91-00463A ASSY PRT;SP42W5HPX/XEU,J54A 1 S.N.A
9 BP64-00077A KNOB POWER;42W4,ABS HB G3676 1 T0023
10 AA61-60003J SPRING ETC-CS;-,SUS304,-,-,OD6,N7,OD6,-, 1 CIS7 S.N.A
11 BP64-00095A CABINET-PANEL-CONTROL;42W4,HIPS,HB,G4309 1 S.N.A
12 BP64-00078A WINDOW REMOCON-LED;42W4,PC,42W4,PC,CLEAR 1 S.N.A
13 BP64-00076A KNOB CONTROL;42W4,ABS HB G3676 1 T0022 S.N.A
14 6003-001019 SCREW-TAPTITE;RH,+,B,M4,L12,ZPC(BLK),SWR 4 T0081
15 BP61-00108A GUIDE-KONB,CONTROL;42W4,G3676,42W4,ABS H 1 S.N.A
16 AA64-02725B CABINET-FRONT,BOT;42W5,HIPS,HB,G4309,SV0 1 T0016
17 AA64-02743A BADGE-DECORATION;42W5,AL,NI,RS 1 T0165
18 AA61-01128C HOLDER-SIDE AV;42W5,ABS HB,G3676,SV-704P 1 S.N.A
19 AA64-02780C DOOR-AV;42W5,ABS HB,G3676,SV-704P 1 T0150
20 AA61-01132A VELCRO-A;COMMANDO,BST1 1/4H 3 S.N.A
20 AA61-01132A VELCRO-A;COMMANDO,BST1 1/4H 1 S.N.A
21 AA61-01133A VELCRO-B;COMMANDO,BST1 1/4H 1 S.N.A
21 AA61-01133A VELCRO-B;COMMANDO,BST1 1/4H 3 S.N.A
22 6003-001019 SCREW-TAPTITE;RH,+,B,M4,L12,ZPC(BLK),SWR 1 T0081
24 6003-001026 SCREW-TAPTITE;RH,+,B,M4,L15,ZPC(BLK),SWR 7 T0081 S.N.A
25 AA67-00204B MIRROR-BACK;42W5,SSM,870*633*446 1 T0108
26 AA61-01123A BRACKET-MIRROR;42W5,SECC,T1.0 1 S.N.A
27 6003-001026 SCREW-TAPTITE;RH,+,B,M4,L15,ZPC(BLK),SWR 4 T0081 S.N.A
28 AA64-02728A CABINET-BACK,TOP;42W5,HIPS,HB,G4309 1 T0112
29 6005-001003 SCREW-WOOD;HH,+,M4,L19,ZPC(BLK),SWRCH18A 3 HC+CW S.N.A
30 BP96-00038C ASSY COVER P-TERMINAL,ANT;42W5,HIPS VO,B 1 T0092 S.N.A
31 6003-001026 SCREW-TAPTITE;RH,+,B,M4,L15,ZPC(BLK),SWR 2 T0081 S.N.A
32 BP91-01004A ASSY CHASSIS;SP42W4HBX/XEU,P55A 1 M0017
33 AA60-00072B SPACER-COVER,DUST;43,54,62J9,SPONGE 94HF 1 S.N.A
34 BP61-00120A BRACKET-SCREEN,ASSY(R);42W5,SECC,T1.0,SC 1 S.N.A
35 BP61-00117B BRACKET-SCREEN,ASSY(TOP);42W5,SECC,T1.0, 1 S.N.A
36 BP61-00122A BRACKET-SCREEN,ASSY(L);42W5,SECC,T1.0,SC 1 S.N.A
37 BP61-00119B BRACKET-SCREEN,ASSY(BOT);42W5,SECC,T1.0, 1 S.N.A
38 AA60-10011A SCREW-TAPTITE;-,SWRCH18A,M4,L12,HH,+,PC, 20 T0081 S.N.A
39 BP64-00029A INLAY-SUPPORT;42W5,PS SHEET,T0.5,94V0 1 S.N.A
40 6005-001003 SCREW-WOOD;HH,+,M4,L19,ZPC(BLK),SWRCH18A 2 HC+CW S.N.A
2-2 Samsung Electronics
