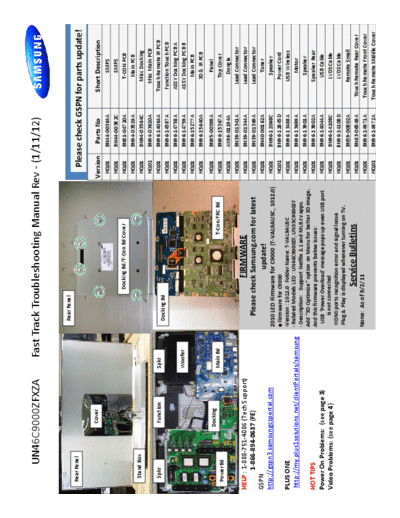

Image preview - the first page of the document
![Samsung_UN46C9000ZFXZA_fast_track_guide_[SM]](/pics/5c26daa5f2d93.gif)
>> Download Samsung_UN46C9000ZFXZA_fast_track_guide_[SM] documenatation <<
Text preview - extract from the document
UN46C9000ZFXZA Fast Track Troubleshooting Manual Rev - (1/11/12)
Rear Panel
Rear Panel
Please check GSPN for parts update!
Cover Version Parts No Short Description
HQ01 BN44-00364A SMPS
HQ01 BN44-00382C SMPS
Docking Bd/T-Con Bd Cover HQ01 BN81-04720A T-CON PCB
HQ01 BN94-03519A Main PCB
Stand Box HQ01 BN94-03564C Misc Docking
HQ01 BN94-03610A Misc Main PCB
Spkr Function Spkr HQ01 BN96-14064A Touch Remote IR PCB
Docking Bd
HQ01 BN96-14587A Function Touch PCB
HQ01 BN96-14758A ASSY Docking PCB A
Woofer HQ01 BN96-14759A ASSY Docking PCB B
HQ01 BN96-15277A Main PCB
HQ01 BN96-15640A 3D & IR PCB
Docking HQ01 BN95-00398A Panel
Main Bd T-Con/FRC Bd HQ01 BN96-15367A Top Cover
Power Bd
HQ01 AK96-01194A Dongle
HQ01 BN39-01341A Lead Connector
HELP : 1-888-751-4086 (Tech Support) FIRMWARE HQ01 BN39-01344A Lead Connector
1-866-894-0637 (FE) Please check Samsung.com for latest HQ01 BN39-01369A Lead Connector
GSPN update! HQ01 BN40-00162A Tuner
http://gspn3.samsungcsportal.com 2010 LED Firmware for C9000 (T-VAL9AUSC, 1012.0) HQ01 BN96-12068C Speaker
Firmware for C9000 HQ01 BN96-12845D Power Cord
PLUS ONE -Version : 1012.0 Folder Name: T-VAL9AUSC HQ01 BN96-13488A USB Wireless
http://my.plus1solutions.net/clientPortals/samsung - Related Models LED : UN46C9000ZF, UN55C9000ZF HQ01 BN96-13699A Motor
- Description: Support Netflix 2.1 and MLB.tv apps.
HQ01 BN96-13901A Speaker
Add "3D Optimize" option on Menu for better 3D image.
HOT TIPS And this firmware prevents below issues: HQ01 BN96-13902A Speaker Rear
Power On Problems: (see page 3) USB `Power Overload' message pops up even USB port HQ01 BN96-14044A USB Cable
Video Problems: (see page 4) is not connected HQ01 BN96-14108C LVDS Cable
HDMI ports recognition error and signal loose HQ01 BN96-14108D LVDS Cable
Plug & Play is displayed whenever turning on TV.
HQ01 BN59-00802A Remote Small
Service Bulletins HQ01 BN63-06549A Touch Remote Rear Cover
None: As of 9/2/11 HQ01 BN96-14971A
1
Touch Remote Front Cover
HQ01 BN96-14972A Touch Remote Middle Cover
UN46C9000ZFXZA Fast Track Troubleshooting Manual
CNM801 (SMPS)
1 Top_Dim 11 GND 21 BLU_On/Off
2 Bot_Dim 12 GND 22 Power_On/Off
3 D12V 13 GND 23 OD_On/Off
4 D12V 14 GND 24 STBY
5 D12V 15 GND 25 GND
6 D12V 16 GND 26 GND
7 D12V 17 D5.3V 27 GND
8 D12V 18 D5.3V 28 GND
9 GND 19 D5.3V 29 Vamp
10 GND 20 D5.3V 30 Vamp
CN501 (to Function)
Power On Sequence: To Force Backlight "On":
1. Standby Voltage, (CNM801, #24, 5v)
2. Power On, (CNM801,#22, 0-1.2v)
1. Remove Power Cord
3. Low Voltage Supplies On, (D12, D5.3V) 2. Disconnect CN201 at Main Board
4. High Voltage Supplies On, (CNM801, #21, 3. Short P_On to STBY (CNM801, #22 & 24)
BLU_ON) 4. Plug Power Cord In.
5. Back Light "On" Confirmation 5. Backlight should now come on. 2
UN46C9000ZFXZA Fast Track Troubleshooting Manual
CD437 CD418 CD403 CD477
46" 150VDC ~ 170VDC Panel or SMPS
179VDC ~ 256VDC Normal
340VDC ~ 380VDC Panel (LED bar problem)
55" 150VDC ~ 170VDC Panel or SMPS
224VDC ~ 284VDC Normal
340VDC ~ 380VDC Panel (LED bar problem)
UN46C9000ZFXZA Fast Track Troubleshooting Manual
TROUBLESHOOTING VIDEO PROBLEMS 2011 LED 8000 Series
1. Verify Video Operation
a. Customer Picture Test (models available)
b. "Display" (If display is OK source is suspected)
c. Substitute with known good Source
(external DVD or Signal Generator)
2. Using Test Patterns in Service Mode
