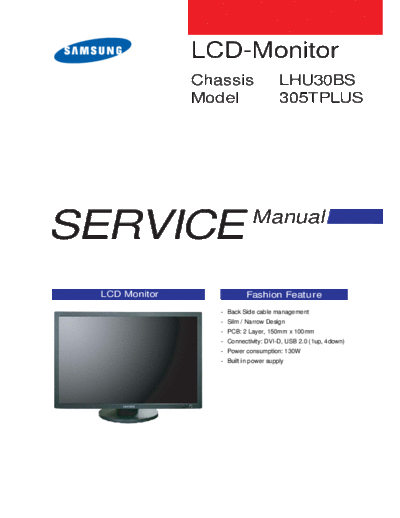

Image preview - the first page of the document



>> Download Samsung_305TPLUS_[SM] documenatation <<

Text preview - extract from the document

               LCD-Monitor
               Chassis                 LHU30BS
               Model                   305TPLUS




SERVICE                      Manual


 LCD Monitor               Fashion Feature
                  - Back Side cable management
                  - Silm / Narrow Design
                  - PCB: 2 Layer, 150mm x 100mm
                  - Connectivity: DVI-D, USB 2.0 (1up, 4down)
                  - Power consumption: 130W
                  - Built in power supply
                                                  Samsung Electronics Co.,Ltd.
-This Service Manual is a property of Samsung     416, Maetan-3Dong, Yeongtong-Gu, Suwon City,
 Electronics Co., Ltd.                            Gyeonggi-Do, Korea, 443-742
 Any unauthorized use of Manual can be punished   Printed in Korea
 under applicable International and/or domestic   P/N : BN82-00169A-01
 law.                                             URL : http://itself.sec.samsung.co.kr/
                                                                                 3 Alignments and Adjustments



3 Alignments and Adjustments
This section of the service manual explains how to use the RS232 JIG.
This function is needed for AD board change and program memory (IC200) change.
3-1 Required Equipment
The following equipment is necessary for adjusting the monitor:
  Computer with Windows 95, Windows 98, or Windows NT.
   MTI-2055 DDC MANAGER JIG

3-2 DDC EDID Data Input
 1. Input DDC EDID data when replacing AD PCB.
 2. Receive/Download the proper DDC file for the model from HQ quality control department.
    Install the below jig (Figure 1) and enter the data.




                                                       MTI-2055
                                                       DDC Manager

                    Parallel Connector
                       (25P Cable)
                                                                      Connect Monitor
                                                                       (Signal Cable)


                                                     Figure 1.


3-3 Hidden Key list




                                                                                                          3-1
3 Alignments and Adjustments

3-4 EDID Installation with Dos Program
                                     1.Execute "DDC21.exe"
