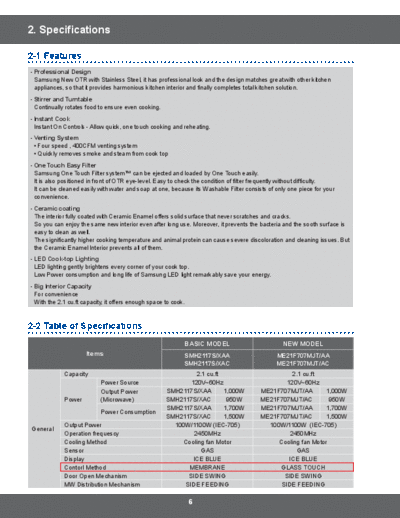

Image preview - the first page of the document
>> Download 3.Specifications documenatation <<
Text preview - extract from the document
2-1 Features
- Professional Design
Samsung New OTR with Stainless Steel, it has professional look and the design matches great with other kitchen
- Stirrer and Turntable
Continually rotates food to ensure even cooking.
- Instant Cook
Instant On Controls - Allow quick, one touch cooking and reheating.
- Venting System
Four speed , 400CFM venting system
Quickly removes smoke and steam from cook top
- One Touch Easy Filter
Samsung One Touch Filter systemTM can be ejected and loaded by One Touch easily.
It can be cleaned easily with water and soap at one, because its Washable Filter consists of only one piece for your
convenience.
- Ceramic coating
The interior fully coated with Ceramic Enamel offers solid surface that never scratches and cracks.
So you can enjoy the same new interior even after long use. Moreover, it prevents the bacteria and the sooth surface is
easy to clean as well.
the Ceramic Enamel Interior prevents all of them.
- LED Cook-top Lighting
LED lighting gently brightens every corner of your cook top.
Low Power consumption and long life of Samsung LED light remarkably save your energy.
- Big Interior Capacity
For convenience
With the 2.1 cu.ft capacity, it offers enough space to cook.
BASIC MODEL NEW MODEL
Items SMH2117S/XAA ME21F707MJT/AA
SMH2117S/XAC ME21F707MJT/AC
Capacity 2.1 cu.ft 2.1 cu.ft
Power Source 120V~60Hz 120V~60Hz
Output Power SMH2117S/XAA 1,000W ME21F707MJT/AA 1,000W
Power (Microwave) SMH2117S/XAC 950W ME21F707MJT/AC 950W
SMH2117S/XAA 1,700W ME21F707MJT/AA 1,700W
Power Consumption
SMH2117S/XAC 1,500W ME21F707MJT/AC 1,500W
Output Power 100W/1100W (IEC-705) 100W/1100W (IEC-705)
General
Operation frequescy 2450MHz 2450MHz
Cooling Method Cooling fan Motor Cooling fan Motor
Sensor GAS GAS
Display ICE BLUE ICE BLUE
Contorl Method MEMBRANE GLASS TOUCH
Door Open Mechanism SIDE SWING SIDE SWING
MW Distribution Mechanism SIDE FEEDING SIDE FEEDING
6
(Cont.)
BASIC MODEL NEW MODEL
Items SMH2117S/XAA ME21F707MJT/AA
SMH2117S/XAC ME21F707MJT/AC
1. Popcorn YES YES
2. Potato YES YES
Sensor Cook 3. Pizza YES YES
Mode 4. Cook YES YES
5. Reheat YES YES
6. Veggies YES YES
1. Kids Meals YES YES
2. Snacks YES YES
3. Soften Melt YES(3) YES(4)
Auto Cook Mode
4. 1 Pound Defrost YES YES
Feature 5. Auto Defrost YES YES
6. Custom Cook YES YES
Clock YES YES
Timer YES YES
Max time
MW 99 min 99 sec 99 min 99 sec
Cooking
Power Level YES(10 Level) YES(10 Level)
Sound Option YES YES
Clock System Option
12H 12H
Setting (24H/12H/24H+12H)
Child Lock YES YES
Turntable On/Off NO YES
Door Color STSS STSS
Material &
Cavity Interior Ceramic Enamel Ceramic Enamel
Finishes
Packing Case Yellow Box Yellow Box
YES YES
Accessory Wire Rack
(Rectangular Rack) (Rectangular Rack)
OUTSIDE DIMENSIONS 297/8(W) x 161/2(H) x 181/2(D) 2913/16(W) X 1615/16(H) X 181/8(D)
OVEN CAVITY DIMENSIONS 221/8(W) x 1013/16(H) x 1413/16(D) 221/8(W) x 1013/16(H) x 1413/16(D)
Physical SHIPPING DIMENSIONS 333/8(W) x 197/16(H) x 2013/16(D) 333/8(W) x 197/16(H) x 2013/16(D)
NET WEIGHT 55.9 lbs 58.0 lbs
SHIPPING WEIGHT 64.2 lbs 65.0 lbs
USA USA
Export Zone
CANADA CANADA
7
2-3 Accessory
Item Description Code No. Q'ty
Glass tray DE74-20002D 1
Roller guide ring DE92-90189V 1
Top Template DE68-03843A 1
Wall template DE68-03142B 1
Installation
DE68-04108A 1
instructions
Use and Care Guide DE68-03970A 1
Hardware-kit DE92-90505N 1
FILTER AIR
DE63-00196A 1
(INSTALLED)
DE63-30016D 1
Shelf DE75-00083A 1
Exhaust adaptor DE92-90242D 1
