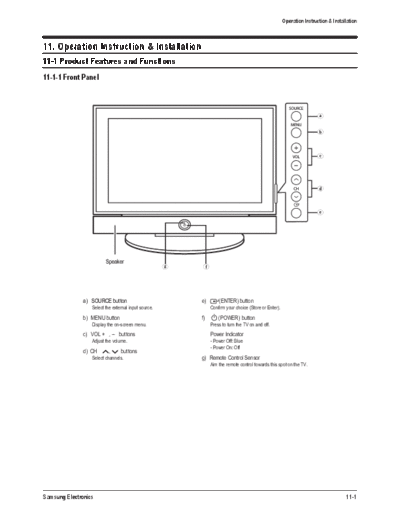

Image preview - the first page of the document
>> Download Operation Instruction & Installation documenatation <<
Text preview - extract from the document
Operation Instruction & Installation
11. Operation Instruction & Installation
11-1 Product Features and Functions
11-1-1 Front Panel
Speaker
a) SOURCE button e) (ENTER) button
Select the external input source. Confirm your choice (Store or Enter).
b) MENU button f) (POWER) button
Display the on-screen menu. Press to turn the TV on and off.
c) VOL + , - buttons Power Indicator
Adjust the volume. - Power Off: Blue
- Power On: Off
d) CH , buttons
Select channels. g) Remote Control Sensor
Aim the remote control towards this spot on the TV.
Samsung Electronics 11-1
Operation Instruction & Installation
11-1-2 Rear Panel
a) HDMI/DVI IN f) S-VIDEO
Connect to the HDMI jack of a device with Video input for external devices with an S-Video
HDMI output. These inputs can also be used output, such as a camcorder or VCR.
as a DVI connection with separate analog
audio inputs. An optional HDMI/DVI cable g) COMPONENT IN
will be necessary to make this connection. Video ( Y/P B /P R) and audio ( AUDIO L/R ) inputs for
When using the optional HDMI/DVI adapter, Component.
the DVI analog audio inputs on your TV allow
you to receive left and right audio from your h) EXT 1, EXT 2
DVI device. (Not compatible with PC) Inputs or outputs for external devices, such as
VCR, DVD, video game device or video disc
b) DVI AUDIO IN L/R players.
DVI audio outputs for external devices.
i) ANT IN (75 )
c) AV OUT (VIDEO / AUDIO L/R) 75 Coaxial connector for Aerial/Cable Network.
Outputs for external devices.
j) SERVICE
d) AV IN (VIDEO / AUDIO L/R) Connector for service only.
Video and audio inputs for external devices, such
as a camcorder or VCR. k) POWER IN
Connect the supplied power cord.
e) PC IN / AUDIO
Connect to the video and audio output jack on
your PC.
11-2 Samsung Electronics
Operation Instruction & Installation
11-1-3 Remote Control
TURNS THE TV ON AND OFF
PICTURE EFFECT SELECTION
MAKE THE REMOTE CONTROL WORK
FOR TV, STB, VCR, CABLE, OR DVD
SOUND EFFECT SELECTION/
TELETEXT CANCEL
DIRECT CHANNEL SELECTION
AUTOMATIC SWITCH-OFF/ SWITCH REPEATEDLY BETWEEN THE
TELETEXT PAGE HOLD LAST TWO CHANNELS DISPLAYED/
TELETEXT SUB-PAGE
NEXT CHANNEL/
VOLUME INCREASE TELETEXT NEXT PAGE
EXTERNAL INPUT SELECTION/
TEMPORARY SOUND SWITCH-OFF TELETEXT MODE SELECTION
LIST/FASTEXT (UK)
VOLUME DECREASE
PREVIOUS CHANNEL/
TELETEXT PREVIOUS PAGE
TELETEXT DISPLAY/ INFORMATION DISPLAY/
MIX BOTH TELETEXT INFORMATION TELETEXT REVEAL
AND THE NORMAL BROADCAST
TV MODE SELECTION/
MENU DISPLAY/ EXIT TELETEXT
TELETEXT INDEX (DEPENDING ON THE MODEL)
MOVE TO THE REQUIRED
MENU OPTION/
ADJUST AN OPTION VALUE
RESPECTIVELY
CONFIRM YOUR CHOICE
(STORE OR ENTER)
PICTURE STILL SOUND MODE SELECTION
FASTEXT TOPIC SELECTION
TruSurround XT
PICTURE SIZE
MODE SELECTION
PIP FUNCTIONS:
ADJUST SCREEN BRIGHTNESS - PIP ACTIVATION OR DEACTIVATION
TO SURROUNDING (PIP)
ENVIRONMENT - SWAPPING THE MAIN AND THE SUB
PICTURE (SWAP)
- LOCATION SELECTION (POSITION)
- SOURCE SELECTION (SOURCE)
- SIZE SELECTION (SIZE)
- CHANNEL SELECTION (P )
REMOTE CONTROL SETUP
IF YOUR REMOTE CONTROL IS NOT
FUNCTIONING PROPERLY, TAKE
OUT THE BATTERIES AND PRESS
THE RESET BUTTON FOR ABOUT VCR/DVD FUNCTIONS:
2~3 SECONDS. RE-INSERT THE - REWIND (REW)
BATTERIES AND TRY USING THE - STOP
REMOTE CONTROL AGAIN. - PLAY/PAUSE
- FAST FORWARD (FF)
Samsung Electronics 11-3
Operation Instruction & Installation
Programming the Remote Control for Other Component
Your TV comes equipped with a universal remote control. In
addition to controlling the TV, the universal remote control can
also operate a VCR, Cable box, DVD, and Set-Top Box (even if your
VCR, Cable box and DVD are made by manufacturers other than
Samsung).
The remote control might not be compatible with all
VCRs, DVD players, Cable boxes, and Set-Top Boxs.
1 Turn off your VCR (Cable box or DVD).
2 Press the MODE button to switch the remote control to the VCR
(CATV or DVD) mode.
The remote control has five modes : TV, STB, VCR,
CABLE and DVD.
3 Press the SET button.
4 Enter 3 digits of the VCR (Cable box or DVD) code listed on the
next page for your VCR (Cable box or DVD).
Example: To enter code "6", press 0, 0, and 6.
To enter code "76", press 0, 7, and 6.
5 Press the POWER ( ) button. Your VCR (Cable box or DVD)
should turn on. If it turns on, your remote control is now set
correctly.
If it does not turn on, repeat the steps above, but try one of
the other codes listed for your particular brand.
6 Once your remote control is set up, press the MODE button any
time you want to use the remote control to operate the VCR
(Cable box or DVD).
When your remote control is in STB, VCR, CABLE or
DVD mode, the volume buttons still control your
television's volume.
When your remote control is in TV mode, the VCR or
DVD control buttons (rewind, stop, play/pause, and fast
forword) still operate your VCR or DVD.
11-4 Samsung Electronics
Operation Instruction & Installation
VCR Remote Control Codes
Cable Box (CATV) Remote Control Codes
DVD Remote Control Codes
Samsung Electronics 11-5
Operation Instruction & Installation
11-2 New Features
11-2-1 Power Saving Mode (Applies to the "Settings" of the User Menu)
1. Objectives
- To enhance a sensible visual quality by maintaining an appropriate screen brightness according to the ambient brightness and
to reduce power consumption.
- To improve the power consumption efficiency when Power Saving Mode is selected.
2. Details
The CPU PW318 of the Video Board takes the current ambient brightness (in Lux units) stored in the Ambient Light Sensor of the
Power Assy., which is attached at the front of the PDP, at given intervals through SMBUS communication (identical to I2C) and
controls the PDP module to operate with the appropriate illuminance. The I2C bus is used to communicate with the PDP module,
and the communication method is the same as the existing communication method.
- Location of the Ambient Light Sensor
The sensor is attached to the Power Assy., which is on the front of the PDP. The location of the sensor on the Power Assy. is
displayed in the figure below. External light reaches the sensor through the guide of the Power Assy.
The Ambient Light Sensor IC
detects the amount of illumination.
The screen brightness is adjusted according to the brightness measured by the Ambient Light Sensor, using the Multi APC
function (controls the number of sustain pulses according to the average signal levels) of the PDP panel, thus reducing power
consumption.
11-6 Samsung Electronics
Operation Instruction & Installation
TV Picture
Mode : Dynamic
Size : Auto Wide
Digital NR : On
1 Press the MENU ( ) button.
DNIe Demo : Off
Result: The main menu is displayed.
My Colour Control
Energy Saving : St andard
PIP 2 Press the ... or button to select Picture .
Result: The Picture menu is displayed.
Move Enter Return
3 Press the ENTER ( ) button.
TV Picture
4 Press the ... or button to select Energy Saving .
Mode : Dynamic
Press the ENTER ( ) button.
Size : Auto Wide
Digital NR : On
DNIe Demo : Off 5 Select the required option by pressing the ... or button.
My Colour Control
Energy Saving
Auto Saving
: Standard
Result: The following options are available.
Standard
PIP Auto Saving: Automatically adjusts to the
Super Saving
surrounding illumination.
Move Enter Return
Standard: Operates in standard mode
regardless of the surrounding illumination.
Super Saving: Enters maximum power
saving mode regardless of the surrounding
illumination.
6 Press the ENTER ( ) button.
This feature is not available when the input source is in PC or
HDMI mode.
You can select these options by simply pressing the
E.SAVINGbutton on the remote control.
11-2-2 PIP Settings (X - This PIP combination is not available, O - This PIP combination is available)
Sub Main TV Ext.1 Ext.2 AV S-Video Component PC HDMI
TV X O O O O O O O
Ext.1 O X O O O O O O(RGB Excluded)
Ext.2 O O X O O O O O
AV O O O X O O O O
S-Video O O O O X O O O
Component X X X X X X X X
PC X X X X X X X X
HDMI X X X X X X X X
Samsung Electronics 11-7
Operation Instruction & Installation
11-3 Installation Notes and Precautions
11-3-1 Installation Notes
1. Contact a technician for installing the wall bracket.
2. Samsung Electronics is not responsible for any damage to the product or injury to yourself or others if you elect to perform the
wall installation.
3. This product is for installing on cement walls. The product may not stay in place when installed on plaster or wood.
11-3-2 Parts (Wall attachment panel is sold separately)
Wall Bracket Hinge Accessories
Plastic Hanger: 4 Screw : 11
Screw :4 Anchor : 11
1 Left: 1 Right: 1
11-8 Samsung Electronics
Operation Instruction & Installation
11-3-3 How to assemble the Wall Mount Bracket
1 Insert and tighten the Captive Screw in 2 Before drilling into the wall, check if the length
the direction of the arrow. between the two locking holes at the back of
When done, mount the wall bracket on the product is correct.
the wall. If the length is too short or long, loosen all or
some of the 4 screws on the wall bracket to
Captive Screw adjust the length.
Length between the
two locking holes
Wall Bracket
Hinge (Left)
There are two hinges
(left and right). Use the
correct one. Hinge (Right)
3 Check the installation diagram and mark the drill
points on the wall. Use the 5.0 mm bit to drill holes
deeper than 35 mm.
Fix each anchor in the corresponding hole.
Match each of the brackets and hinge holes to the
corresponding anchor holes and insert and tighten
the 11 screws .
Samsung Electronics 11-9
Operation Instruction & Installation
11-3-4 Fixing the TV panel to the wall attachment panel bracket
1 Remove the 4 screws on the back of the product. 2 Insert the screw into the plastic hanger.
(See the figure below)
Mount the product on the wall bracket
and make sure it is properly fixed to
the left and right plastic hangers.
Be careful when installing the product
on the bracket as fingers can be
caught in the holes.
Make sure the wall bracket is securely
fixed to the wall, or the product may not
stay in place after installation.
3 Tighten the 4 screws in step 2 (plastic hanger 4 Remove safety pin ( # ) and insert the 4 product
+ screw ) to the rear holes of the product. holders into the corresponding bracket holes ( ! ). Then
place the product (@) so that it is firmly fixed to the
bracket. Make sure to reinsert and tighten the safety
pin (# ) to securely hold the product to the bracket.
PDP
Wall Bracket Wall
11-3-5 How to Adjust Mounting Angle
o
Adjust the bracket angle to -2 before installing it on the wall.
1 Fix the product to the wall bracket.
2 Hold the product at the top in the center and pull it
forward (direction of the arrow) to adjust the angle. Make sure to use the top center,
(See the figure to the right) and not the left or the right side of
the product to adjust the angle.
3 You can adjust the bracket angle between -2◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
