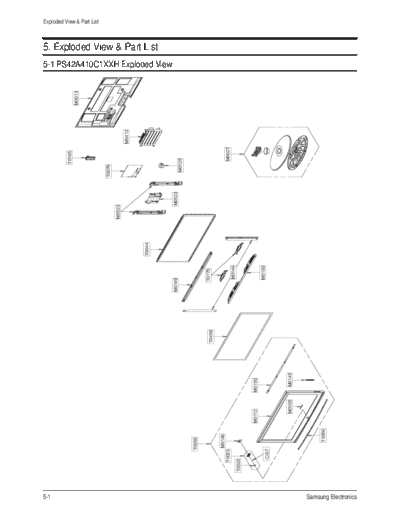

Image preview - the first page of the document
>> Download Exploded_View_&_Part_List documenatation <<
Text preview - extract from the document
5-1
T0165
M0013
Exploded View & Part List
T0079
M0523
M0412
T0044
5. Exploded View & Part List
5-1 PS42A410C1XXH Exploded View
M0149 M0523
M0125
T0003
T0175
T0456
M0146
T0023 M0027
M0146
T0023
M0112 M0150
M0150
CIS7
M0105 M0145
T0056
Samsung Electronics
Exploded View & Part List
Loc. No. Code No. Description Specification Q'ty SA/SNA Remark
CIS7 AA61-60003B SPRING ETC-CS -,SUS304,-,-,OD11.2,N7,OD1 1 S.N.A
M0013 BN96-06752B ASSY COVER P-REAR P410 42Inch,PCM T0.5,B 1 S.A
M0027 BN96-05835A ASSY STAND P-BASE -,42Q9/42C9,-,ABS,SF-0 1 S.A
M0105 BN67-00190A LENS-LED 42Q9,PC,light blue,Material of 1 S.N.A
M0112 BN63-03047C COVER-FRONT 42C9,ABS+PMMA,-,-,-,HB,-,BK2 1 S.N.A
M0125 BN96-07190A ASSY INLET P Pyrope,350mm,IG-N06BES1,250 1 S.A
M0145 BN96-04853E ASSY BOARD P-FUNCTION Carnelian,CT5000-4 1 S.A
M0146 BN96-07666D ASSY BOARD P-POWER & IR P410 Carnelian,P 1 S.A
M0146 BN96-06750A ASSY BRACKET P-FILTER SIDE P450 42Inch,S 2 S.N.A
M0149 BN96-06749A ASSY BRACKET P-FILTER TOP P450 42Inch,SA 1 S.N.A
M0150 BN96-06748A ASSY BRACKET P-SUPPORT FILTER P410 42Inc 1 S.N.A
M0150 BN96-06751B ASSY BRACKET P-FILTER BOTTOM 42P410,EO,S 1 S.N.A
M0412 BN96-06697A ASSY BRACKET P-PCB Spinel 50,,SECC,T0.6, 1 S.N.A
M0523 BN96-06753A ASSY BRACKET P-SUPPORT STAND P410 42Inch 1 S.A
M0523 BN96-06756B ASSY BRACKET P-WALL P450 42Inch,SECC T1. 2 S.N.A
T0003 BN96-06746B ASSY COVER P-FRONT P410 42Inch,ABS+PMMA, 1 S.A
T0023 BN96-04707A ASSY COVER P-KNOB POWER C9/Q9,,ABS HB,,, 1 S.A
T0023 BN64-00567A KNOB POWER 42Q9,PC,VIOLET 1 S.N.A
T0044 BN96-06642A ASSY PDP MODULE P PL42AX030A,42HD W3,W3, 1 S.A
T0056 BN63-03091B COVER-DECORATION 42C92,ABS,HB,BLM-1520 1 S.N.A
T0079 BN94-01762D ASSY PCB MISC-MAIN PS42A410C1XXC,F53A,BN 1 S.A
T0165 BN96-06696G ASSY COVER P-AV 42P450 1 S.N.A
T0175 BN96-04704C ASSY SPEAKER P 8ohm,P410 42",L150mm / R7 1 S.A
T0456 BN67-00206A GLASS-EMI FILTER 42 C9, without AR,Sputt 1 S.A
Samsung Electronics 5-2
Exploded View & Part List
5-2 PS42A410C1XXH Service Item
This is the list which is available to repair the real material at the time of service.
Loc. No. Code No. Description Specification Q'ty Remark
M0013 BN96-06752B ASSY COVER P-REAR P410 42Inch,PCM T0.5,B 1
M0027 BN96-05835A ASSY STAND P-BASE -,42Q9/42C9,-,ABS,SF-0 1
M0154 BN96-06760A ASSY PDP P-Y-MAIN BUFFER PL42AX030A,42HD 1
M2893 BN39-00802C LEAD CONNECTOR HPT4264H,UL1617#22,24P/24 1
T0003 BN96-06746B ASSY COVER P-FRONT P410 42Inch,ABS+PMMA, 1
T0037 BN96-06761A ASSY PDP P-LOGIC MAIN PL42AX030A,42HD W3 1
T0038 BN96-06762A ASSY PDP P-ADDRESS E-BUFFER PL42AX030A,4 1
T0039 BN96-06763A ASSY PDP P-ADDRESS F-BUFFER PL42AX030A,4 1
T0044 BN96-06642A ASSY PDP MODULE P PL42AX030A,42HD W3,W3, 1
T0045 BN96-06757A ASSY PDP P-X-MAIN BOARD PL42AX030A,42HD 1
T0045 BN96-06758A ASSY PDP P-X-MAIN BUFFER PL42AX030A,42HD 1
T0074 BN59-00676A REMOCON TM-95,39,TTX,EUROPE-READY 1
T0079 BN94-01762D ASSY PCB MISC-MAIN PS42A410C1XXC,F53A,BN 1
T0175 BN96-04704C ASSY SPEAKER P 8ohm,P410 42",L150mm / R7 1
T0262 BN96-06759A ASSY PDP P-Y-MAIN BOARD PL42AX030A,42HD 1
T0764 BN44-00206A SMPS-PDP TV W3 PDP SMPS,SEM,AC/DC,406.6W 1
5-3 Samsung Electronics
