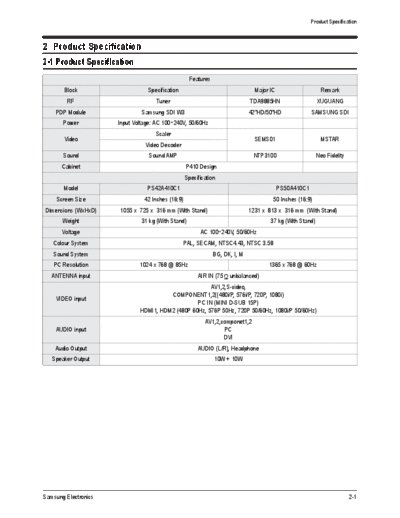

Image preview - the first page of the document
>> Download Product Specification documenatation <<
Text preview - extract from the document
Product Specification
2. Product Specification
2-1 Product Specification
Features
Block Specification Major IC Remark
RF Tuner TDA9885HN XUGUANG
PDP Module Samsung SDI W3 42"HD/50"HD SAMSUNG SDI
Power Input Voltage: AC 100~240V, 50/60Hz
Scaler
Video SEMS01 MSTAR
Video Decoder
Sound Sound AMP NTP3100 Neo Fidelity
Cabinet P410 Design
Specification
Model PS42A410C1 PS50A410C1
Screen Size 42 Inches (16:9) 50 Inches (16:9)
Dimensions (WxHxD) 1055 x 725 x 316 mm (With Stand) 1231 x 813 x 316 mm (With Stand)
Weight 31 kg (With Stand) 37 kg (With Stand)
Voltage AC 100~240V, 50/60Hz
Colour System PAL, SECAM, NTSC4.43, NTSC 3.58
Sound System BG, DK, I, M
PC Resolution 1024 x 768 @ 85Hz 1365 x 768 @ 60Hz
ANTENNA input AIR IN (75 unbalanced)
AV1,2,S-video,
COMPONENT1,2((480i/P, 576i/P, 720P, 1080i)
VIDEO input
PC IN (MINI D-SUB 15P)
HDMI1, HDM2 (480P 60Hz, 576P 50Hz, 720P 50/60Hz, 1080i/P 50/60Hz)
AV1,2,componet1,2
AUDIO input PC
DVI
Audio Output AUDIO (L/R), Headphone
Speaker Output 10W + 10W
Samsung Electronics 2-1
Product Specification
2-2 Specifications Analysis
: application, X: non-application
Items SubItems PS50A410C1 PS42A410C1 PS50Q91HX PS42Q91HX
Design
Inch 50" 42" 50" 42"
Basic Info Chassis Name F53B F53B F33A F33A
Cabinet Name 50C1 42C1 50Q9 42Q9
IDTV / Ready Ready Ready Ready Ready
Motion Judder Canceller No No No No
Speaker Type (Hidden/Side/Array) Hidden Hidden Hidden Hidden
USB spec (Side) No No No No
F. Memory No No No No
UI Smart Smart Smart Smart
DCM No No No No
DLNA No No No No
RSS No No No No
Woofer No No No No
Wi-Fi No No No No
Optical Link No No No No
Additional Wheel Key No No No No
Feature 3D No No No No
ACE2 No No No No
100Hz No No No No
1080p (24Hz) Input Yes Yes No No
H.264 No No No No
Finland Cable DTV No No No No
HDMI-CEC No No Yes Yes
HDMI Version (1,2/1.3) 1.2 1.2 1.2 1.2
HDMI Rear / Side 2/0 2/0 2/1 2/1
Clone Remote Controller Yes Yes Yes Yes
Auto-Wallmount Support Yes Yes Yes Yes
Analog audio Out (L/R) 1 1 1 1
Remote Controller (Model Code) TM95 TM95 TM87 TM87
Screen Size(inches) 50" 42" 50" 42"
Resolution(Number of Pixels) 1365 x 768 1024 x 768 1365 x 768 1024 x 768
Brightness 1500cd/m2 1500cd/m2 1500cd/m2 1500cd/m2
Ultra FilterBright No No No No
Anti Reflection Yes Yes No No
Contrast Ratio 15000:1 15000:1 15000:1 15000:1
Screen Aspect Ratio(16:9/4:3) 16:9 16:9 16:9 16:9
Video Viewing Angle over 175o (H/V) over 175o (H/V) over 175o (H/V) over 175o (H/V)
DNIe Yes Yes Yes Yes
Number of colors(expressed) 281T 281T 281T 281T
Grey Level(Gradation) 65536 65536 65536 65536
Cinema Progressive (Film mode) Yes Yes Yes Yes
Digital Comb Filter 3D 3D 3D 3D
Digital Noise Reduction Yes Yes Yes Yes
Low Noise Amplifier No No No No
Sound Effect System SRS TruSurround XT SRS TruSurround XT SRS TruSurround XT SRS TruSurround XT
Audio Speaker 10W 10W 10W 10W
Sound output (RMS) 10W x 2 10W x 2 10W x 2 10W x 2
2-2 Samsung Electronics
Product Specification
Yes (APS, All white, Yes (APS, All white, Yes (APS, All white, Yes (APS, All white,
Anti Burn-in Technology
Signal pattern) Signal pattern) Signal pattern) Signal pattern)
"Yes (Off / High / Middle / "Yes (Off / High / Middle / "Yes (Off / High / Middle / "Yes (Off / High / Middle /
Power Saving
Low)Multi Brightness Mode Low)Multi Brightness Mode Low)Multi Brightness Mode Low)Multi Brightness Mode
Picture-In-Picture Yes Yes Yes Yes
Clock & On/Off Timer Yes Yes Yes Yes
Sleep Timer Yes (Max 180Min) Yes (Max 180Min) Yes (Max 180Min) Yes (Max 180Min)
Teletext(TTX) 1.5(1000P) 1.5(1000P) 1.5(1000P) 1.5(1000P)
V-Chip No No No No
Feature Blue Screen On/Off No No No No
Melody On-Off Yes Yes Yes Yes
Plug & Play Yes Yes Yes Yes
Absent Power Off Yes Yes Yes Yes
Auto Power Off Yes (15Min after No Signal) Yes (15Min after No Signal) Yes (15Min after No Signal) Yes (15Min after No Signal)
OSD Language 5-Language 5-Language 5-Language 5-Language
Favorite Channel List No No No No
Still Picture No No No No
Sports Mode / Game mode Yes Yes Yes Yes
NTSC 4.43, PAL-B/G, D/K, I, I/I', NTSC 4.43, PAL-B/G, D/K, I, I/I', NTSC 4.43, PAL-B/G, D/K, I, I/I', NTSC 4.43, PAL-B/G, D/K, I, I/I',
Tuners
System SECAM-B/G, D/K, L/L`, AV Multi SECAM-B/G, D/K, L/L`, AV Multi SECAM-B/G, D/K, L/L`, AV Multi SECAM-B/G, D/K, L/L`, AV Multi
POD (Digital Cable Ready) No No No No
Composite (AV) 1 1 1 1
Y/C (S-Video) 1 1 1 1
Headphone(Earphone) 1 1 1 1
Input & Output
WISELINK (Multi Memory Slot) No No No No
(sid0e)
WISELINK (USB) No No No No
HDMI No No 1 1
PictBridge No No No No
RF input 1 1 1 1
RF output No No No No
Composite (AV) 1 1 1 1
S-Video No No No No
Component (Y/Pb/Pr) 1 1 1
Euro Scart No No No No
Input & Output
PC input (D-sub) 1 1 1 1
(back)
HDMI 2 2 2 2
Motorized Mount Control Yes Yes Yes Yes
Video Monitor Out No No No No
Audio Monitor Out 1 1 1 1
Digital Audio (Coaxial) No No No No
Digital Audio (Optical) Yes Yes Yes Yes
Power Supply 220~240V (50/60Hz) 220~240V (50/60Hz) 220~240V (50/60Hz) 220~240V (50/60Hz)
Operation Power Consumption 470W 380W 470W 380W
Power Stand-By Power Consumption UNDER 3W UNDER 3W UNDER 3W UNDER 3W
Master S/W No No No No
Energy Star No No No No
Panel Life Time 60,000 hrs 60,000 hrs 60,000 hrs 60,000 hrs
Remote Control TM95 TM95 TM87B TM87B
RF Cable No No No No
User Manual Yes Yes Yes Yes
Accessory Battery 2EA(AAA) 2EA(AAA) 2EA(AAA) 2EA(AAA)
Power Cable Yes Yes Yes Yes
Stand Yes Yes Yes Yes
Speaker Integraded Integraded Integraded Integraded
For the power supply and power consumption, refer to the label attached to the product.
Samsung Electronics 2-3
Product Specification
2-3 Accessories
Accessories Item Item code Remark
Remote Control BN59-00676A
Batteries 4301-000103
Power Cord 3903-000343
Supplied Accessories
Owner's Instructions BN68-01448H
Samsung Service center
Warranty Card AA68-03753A
Registration Card -
Safety Guide Manual AA68-03242M
Ferrite Core for
3301-001456
Earphone/Power Cord
Ferrite Core for
3301-001305
S-VIDEO/Power Cord
HDMI Cable
BN39-00641A
3000mm
HDMI/DVI cable
BN39-00643A
3000mm
Accessories that can be purchased
Component Cables BN39-00279A
additionally
Electronics Store/
PC Cable 1830mm
Internal shopping mall
PC Audio Cable BN39-00115A
Antenna Cable 2000mm
S-VIDEO Cable BN39-00149A
2-4 Samsung Electronics
