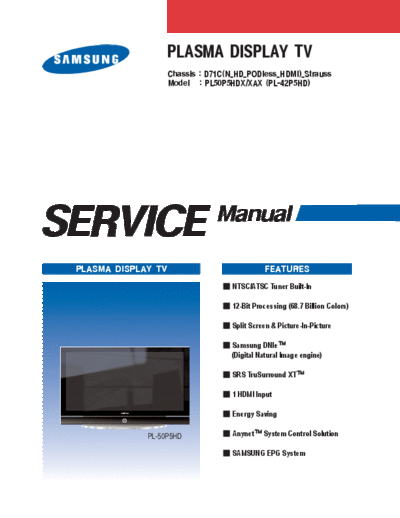

                     PLASMA DISPLAY TV
                     Chassis : D71C(N_HD_PODless_HDMI)_Strauss
                     Model : PL50P5HDX/XAX (PL-42P5HD)




SERVICE                          Manual

 PLASMA DISPLAY TV                             FEATURES

                                   NTSC/ATSC Tuner Built-In

                                   12-Bit Processing (68.7 Billion Colors)

                                   Split Screen & Picture-In-Picture

                                   Samsung DNIeTM  TM
                                   (Digital Natural Image engine)

                                   SRS TruSurround XTTM
                                                     TM

                                   1 HDMI Input

                                   Energy Saving

              PL-50P5HD            AnynetTM System Control Solution
                                         TM

                                   SAMSUNG EPG System
                                                                    ELECTRONICS




This Service Manual is a property of Samsung Electronics Co.,Ltd.
