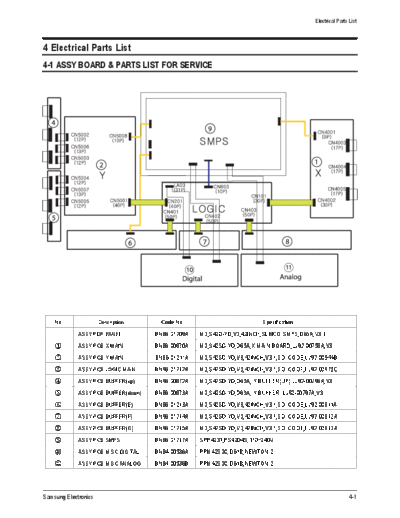

Image preview - the first page of the document
>> Download Electrical Part List documenatation <<
Text preview - extract from the document
Electrical Parts List
4 Electrical Parts List
4-1 ASSY BOARD & PARTS LIST FOR SERVICE
No Description Code No Specification
- ASSY PDP PANEL BN96-01209A M3,S42D-YD,V3,42INCH,SEMCO SMPS,D65A,V3.1
ASSY PCB X MAIN BN96-00870A M3,S42SD-YD,D65A,X MAIN BOARD,LJ92-00758A,V3
ASSY PCB Y MAIN BN96-01211A M3,S42SD-YD,V3,42INCH,V3.1,SDI CODE,LJ92-00944B
ASSY PCB LOGIC MAIN BN96-01212A M3,S42SD-YD,V3,42INCH,V3.1,SDI CODE,LJ92-00975C
ASSY PCB BUFFER(up) BN96-00872A M3,S42SD-YD,D65A, Y BUFFER(UP) LJ92-00796A,V3
ASSY PCB BUFFER(down) BN96-00873A M3,S42SD-YD,D65A, Y BUFFER LJ92-00797A,V3
ASSY PCB BUFFER(E) BN96-01213A M3,S42SD-YD,V3,42INCH,V3.1,SDI CODE,LJ92-00811A
ASSY PCB BUFFER(F) BN96-01214A M3,S42SD-YD,V3,42INCH,V3.1,SDI CODE,LJ92-00812A
ASSY PCB BUFFER(G) BN96-01215A M3,S42SD-YD,V3,42INCH,V3.1,SDI CODE,LJ92-00813A
ASSY PCB SMPS BN96-01217A SPP4231,PS42D4S,110~240V
ASSY PCB MISC DIGITAL BN94-00536A PPM42S3Q.D61B,NEWTON 2
ASSY PCB MISC ANALOG BN94-00536B PPM42S3Q.D61B,NEWTON 2
Samsung Electronics 4-1
Electrical Parts List
4-2 SERVICE ITEM
4-2-1 PPM42S3QX/XEU
You can search for the updated part code through ITSELF web site.
URL : http://itself.sec.samsung.co.kr
Loc. Code No Description;Specification Q'ty S.N.A
T0268 3903-000067 CBF-POWER CORD;DT,GB,GP3/YES(A),I(IEC C1 1
M0114 AA39-00311A CBF SIGNAL;PDP,9P/1P,UL2851#28,5000MM,UL 1
M0114 BN39-00115A CBF SIGNAL;NL5MO,15P/15P,2990,1830MM,UL2 1
T0074 BN59-00366A REMOCON;TM76,D61A,42,G6148,PPM42S3,EX 1
T0098 BN94-00494L ASSY PCB MISC-CONTROL;SPD-42A4H,D55A,ALE 1
T0132 BN94-00536C ASSY PCB MISC-DIGITAL;PPM42S3Q,D61B,42P3 1
T0145 BN94-00536B ASSY PCB MISC-ANALOG;PPM42S3Q,D61B,NEWTO 1
M0003 BN96-00135P ASSY COVER P-FRONT;42P3(VMB),EUP,HIPS HB 1
T0001 BN96-00314C ASSY COVER P-BACK;PS42P3S,AL5052 T1.2,DG 1
T0532 BN96-00676A ASSY MISC P-FAN;PPM42S3 2
M0764 BN96-00756A ASSY STAND P-SCREW;PPM50H3,SCREW+PE-BAG, 1
T0073 BN96-00870A ASSY PDP P-X MAIN BOARD;M3,S42SD-YD,D65A 1
T0091 BN96-00872A ASSY PDP P-Y BUFFER (UP);M3,S42SD-YD,D65 1
T0092 BN96-00873A ASSY PDP P-Y BUFFER (DOWN);M3,S42SD-YD,D 1
T0044 BN96-01209A ASSY PDP P-MODULE;M3,S42SD-YD,V3,42INCH, 1
T0096 BN96-01211A ASSY PDP P-Y MAIN BOARD;M3,S42SD-YD,V3,4 1
T0172 AA69-02609A BAND-PP;W18,CLEA,1G 7.6 S.N.A
T0113 BN96-01213A ASSY PDP P-E BUFFER BOARD;M3,S42SD-YD,V3 1
T0114 BN96-01214A ASSY PDP P-F BUFFER BOARD;M3,S42SD-YD,V3 1
T0033 BN96-01215A ASSY PDP P-G BUFFER BOARD;M3,S42SD-YD,V3 1
T0764 BN96-01217A ASSY MISC P-SMPS;SPP4231,PS42D4S,110~240 1
4-2 Samsung Electronics
