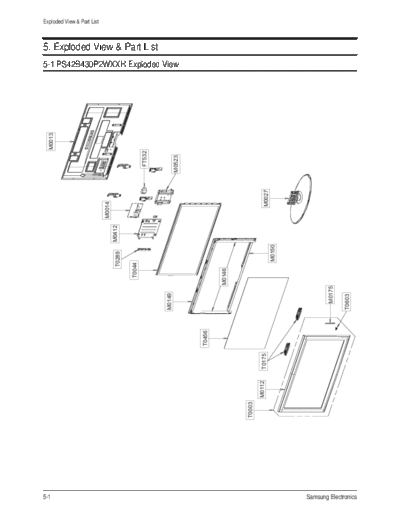

Image preview - the first page of the document
>> Download Exploded View & Part List documenatation <<
Text preview - extract from the document
Exploded View & Part List
5. Exploded View & Part List
5-1 PS42B430P2WXXH Exploded View
M0013
FT532
M0523
M0027
PLASMA DISPLAY T V
M0014
M0412
M0150
T0289
T0044
M0146
M0175
M0149
T0603
T0456
T0175
M0112
T0003
5-1 Samsung Electronics
Exploded View & Part List
Loc. No. Code No. Description Specification Q'ty SA/SNA Remark
FT532 2901-001548 FILTER-EMI AC LINE 250V,6A,UL, CSA, VDE, 1 S.A
M0013 BN96-10614B ASSY COVER P-REAR PB430 42,PCM T0.5,BKN 1 S.A
M0014 BN94-02836A ASSY PCB MISC-MAIN PS42B430P2MXXC 1 S.A
M0027 BN96-09927A ASSY STAND P-BASE 42/50(PB450) 1 S.A
M0112 BN63-04217N COVER-FRONT PB430 42,ABS+PMMA,HB,BK27,S/ 1 S.N.A
M0146 BN96-10616A ASSY BRACKET P-FILTER SIDE PB430 42,SAZC 2 S.N.A
M0149 BN96-10615A ASSY BRACKET P-FILTER TOP PB430 42,SAZCC 1 S.N.A
M0150 BN96-10199D ASSY BRACKET P-FILTER BOTTOM PB450 42,SE 1 S.N.A
M0175 BN96-10706B ASSY BOARD P-TOUCH FUNCTION&IR PS42B430P 1 S.N.A
M0412 BN96-10232A ASSY BRACKET P-PCB PB450 42,SECC,T0.6 1 S.N.A
M0523 BN96-10231F ASSY BRACKET P-SUPPORT STAND PB450 42,SE 1 S.A
T0003 BN96-10613B ASSY COVER P-FRONT PB430 42,ABS+PMMA,HB, 1 S.A
T0044 BN96-10452B ASSY PDP MODULE P SA42AX-YD11,PP42AB057B 1 S.A
T0175 BN96-09465A ASSY SPEAKER P 8ohm,4pin,10W,R:850 / L:3 1 S.N.A
T0289 BN63-05298A COVER-AV 50PB550,ABS HB,BLK(BK500) 1 S.A
T0456 BN67-00247A GLASS-FILTER EMI 42" P410,without AR & B 1 S.A
T0603 BN64-00628A WINDOW-RMC 50P9,PC,VIOLET 1 S.N.A
Samsung Electronics 5-2
Exploded View & Part List
5-2 PS42B430P2WXXH Service Item
This is the list which is available to repair the real material at the time of service.
Loc. No. Code No. Description Specification Q'ty Remark
M0013 BN96-10614B ASSY COVER P-REAR PB430 42,PCM T0.5,BKN 1
M0014 BN94-02836A ASSY PCB MISC-MAIN PS42B430P2MXXC 1
M0027 BN96-09927A ASSY STAND P-BASE 42/50(PB450) 1
M0154 BN96-09752A ASSY PDP P-Y-MAIN BUFFER BOARD S42AX-YB0 1
M2893 BN39-01214A LEAD CONNECTOR UL1007#26,300MM,SMH200-24 1
T0003 BN96-10613B ASSY COVER P-FRONT PB430 42,ABS+PMMA,HB, 1
T0037 BN96-09753A ASSY PDP P-LOGIC MAIN BOARD S42AX-YB07,P 1
T0044 BN96-10452B ASSY PDP MODULE P SA42AX-YD11,PP42AB057B 1
T0045 BN96-09749A ASSY PDP P-X-MAIN BOARD S42AX-YB07,PL42A 1
T0045 BN96-09750A ASSY PDP P-X-MAIN BUFFER BOARD S42AX-YB0 1
T0074 BN59-00865A REMOCON DLP,CRT,TM940,EUROPE,39,92g 1
T0262 BN96-09751A ASSY PDP P-Y-MAIN BOARD S42AX-YB07,PL42A 1
T0764 BN44-00273B SMPS-PDP TV 42U1_DY,AC/DC,314.23W,AC90~2 1
T0937 BN96-09754A ASSY PDP P-ADDRESS E-BUFFER BO S42AX-YB0 1
T0938 BN96-09755A ASSY PDP P-ADDRESS F- BUFFER B S42AX-YB0 1
5-3 Samsung Electronics
