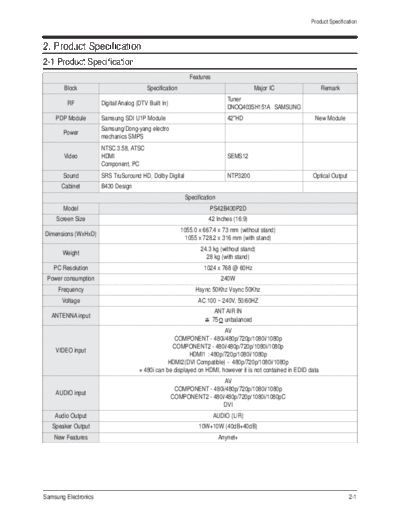

Image preview - the first page of the document
>> Download Product Specification documenatation <<
Text preview - extract from the document
Product Specification
2. Product Specification
2-1 Product Specification
Features
Block Specification Major IC Remark
Tuner
RF Digital/Analog (DTV Built In)
DNOQ403SH151A SAMSUNG
PDP Module Samsung SDI U1P Module 42"HD New Module
Samsung/Dong-yang electro
Power
mechanics SMPS
NTSC 3.58, ATSC
Video HDMI SEMS12
Component, PC
Sound SRS TruSuround HD, Dolby Digital NTP3200 Optical Output
Cabinet B430 Design
Specification
Model PS42B430P2D
Screen Size 42 Inches (16:9)
1055.0 x 667.4 x 73 mm (without stand)
Dimensions (WxHxD)
1055 x 728.2 x 316 mm (with stand)
24.3 kg (without stand)
Weight
28 kg (with stand)
PC Resolution 1024 x 768 @ 60Hz
Power consumption 240W
Frequency Hsync 50Khz Vsync 50Khz
Voltage AC 100 ~ 240V, 50/60HZ
ANT AIR IN
ANTENNA input
75 unbalanced
AV
COMPONENT - 480i/480p/720p/1080i/1080p
COMPONENT2 - 480i/480p/720p/1080i/1080p
VIDEO input
HDMI1 : 480p/720p/1080i/1080p
HDMI2(DVI Compatible) - 480p/720p/1080i/1080p
480i can be displayed on HDMI, however it is not contained in EDID data
AV
COMPONENT - 480i/480p/720p/1080i/1080p
AUDIO input
COMPONENT2 - 480i/480p/720p/1080i/1080pC
DVI
Audio Output AUDIO (L/R)
Speaker Output 10W+10W (40dB+40dB)
New Features Anynet+
Samsung Electronics 2-1
Product Specification
New Features explanation
- Anynet+ : Anynet+ is an AV network system that enables you to control all connected Samsung AV devices with your
Samsung TV's remote.
2-2 Samsung Electronics
Product Specification
2-2 Specifications Analysis
: application, X: non-application
B430 P410
SubItems SubItems
PS42B430P2 PS42A410C1
Design
Inch 42" 42"
Chassis Name F65A F59A
Cabinet Name 42BB1 P410
Display Type PDP TV PDP TV
Built-In Tuner X X
Basic Resolution 1024 x 768 @60Hz 1024 x 768 @60Hz
PDP Module U1A HD W3 HD
Screen Size 42 inches 42 inches
Picture ratio 16:9 16:9
Dimensions (WxHxD) 1055 x 728.2 x 316 mm (With stand) 1055 x 728.2 x 316 mm (With stand)
Weight 28 kg 30 kg
Brightness 1,500 Cd/m2 1,000 Cd/m2
Picture Contrast Ratio 10,000 : 1 10,000 : 1
Picture Enhacer X FBE3X
Equalizer O O
Auto Volume Control O O
Audio Surround Sound SRS TruSurround SRS TruSurround
Speaker Output 10W + 10W 10W + 10W
Speaker 2.2CH (2Way) 2.2CH (2Way)
PIP X X
Double Screen O O
Caption X X
Still Image O O
Features
My Color Control O O
Color Weakness X X
Energy Saving O O
Screen Burn Protection O O
Antenna 1 Input 1 Input
AV Input 1 Input (Side) 1 Input (Side)
S-Video X 1 Input (Side)
Component (Y/PB/PR) 2 Input 2 Input
PC (D-SUB) X 1 Input
Connections
DVI X X
HDMI 2 Input 2 Input
Scart X X
Optical O O
Coaxial X X
For the power supply and power consumption, refer to the label attached to the product.
Samsung Electronics 2-3
Product Specification
2-3 Accessories
Accessories Item Item code Remark
Remote Control
BN59-00865A
Batteries
Power Cord 3903-000145
Owner's Instructions BN68-02011B
Supplied Accessories
Warranty Card -
Registration Card - Samsung Service center
Safety Guide Manual AA68-03242Q
Cloth-Clean BN63-01798B
Ferrite Core for
3301-001305
Power Cord
Cover-Bottom BN63-05671A
Screws (2ea) 6003-001621
HDMI Cable
BN39-00641A
9.843 feet
Sold Separately
HDMI/DVI cable Electronics Store/
BN39-00643A
9.843 feet Internal shopping mall
Component Cables (RCA)
BN39-00279A
4.171 feet
2-4 Samsung Electronics
Product Specification
Accessories Item Item code Remark
Optical Cable None
PC Cable
BN39-00115A
Sold Separately
6.004 feet
Electronics Store/
Internal shopping mall
PC Audio Cable
BN39-00061B
6.562 feet
Antenna Cable
BN39-00333A
9.843 feet
Samsung Electronics 2-5
