Wiring Diagram

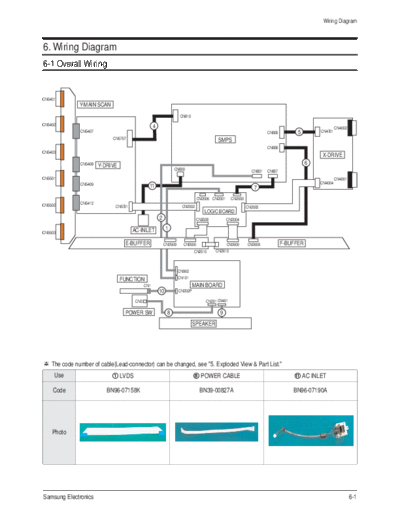

6. Wiring Diagram
6-1 Overall Wiring
CN5401
Y-MAIN SCAN
CN810
CN5402 4 CN4002
CN5407 CN809 5 CN4701
CN5707 SMPS
CN808
CN5403
X-DRIVE
CN5408 Y-DRIVE 6
CN800 CN801 CN807
CN5501 CN4001
CN5409 CN4004
11 7
CN2006 CN2001 CN2000
CN5412
CN5502 CN5701 CN2002 CN2003
?
LOGIC BOARD
2 CN2028 CN2004
AC-INLET 1
CN5503
E-BUFFER CN2509 CN2500 CN2600 CN2609 F-BUFFER
CN2510 CN2610
CN902
FUNCTION CN101
CN1 MAIN BOARD
10 CN202P
CN3 CN201 CN401
POWER SW 8 9
SPEAKER
The code number of cable(Lead-connector) can be changed, see "5. Exploded View & Part List."
Use LVDS POWER CABLE AC INLET
Code BN96-07158K BN39-00827A BN96-07190A
Samsung Electronics 6-1
Wiring Diagram
6-1-1 Pin Connection
CN902(MAIN B'D) CN2001(LOGIC B'D) CN101(MAIN B'D) CN801(MAIN SMPS)
Pin No. Signal Pin No. Signal
Pin No. Signal Pin No. Signal
1 RxIN1b- 16 GND
1 PS_ON 13 D5.3V
2 RxIN1b+ 17 RxIN3-
2 VS_ON 14 D5.3V
3 RxIN0b- 18 RxIN3+
3 STBY 15 D5.3V
4 RxIN0b+ 19 GND
4 GND_STBY 16 D5.3V
5 RxIN0- 20 I2C_READY
5 GND_15Vamp 17 GND_15V
6 RxIN0+ 21 GND
6 GND_15Vamp 18 GND_15V
7 GND 22 3D_SYNC 7 15Vamp 19 D15V
8 RxIN1- 23 GND 8 15Vamp 20 GND_15V
9 RxIN1+ 24 UART Tx 9 GND_5.3V 21 D15V
10 GND 25 GND 10 GND_5.3V 22 D15V
11 RxIN2- 26 UART Rx 11 GND_5.3V 23 AC_DET
12 RxIN2+ 27 Start_OPT 12 GND_5.3V 24 NC[Vt]
13 GND 28 SCL
14 RxCLKIN- 29 GND
15 RxCLKIN+ 30 SDA
CN810(SMPS) CN809(SMPS) CN807(SMPS) CN201(MAIN B'D) CN401(MAIN B'D)
CN5707_42"(Y B'D) CN4701(X B'D) CN2000(LOGIC B'D) POWER&IR SPEAKER
CN5407_50"(Y B'D) Pin No. Signal Pin No. Signal Pin No. Signal Pin No. Signal
Pin No. Signal 1 Vs 1 D5.3V 1 IR 1 R+_OUT
1 Vs 2 Vs 2 D5.3V 2 GND 2 R-_OUT
2 Vs 3 GND 3 GND 3 A5V 3 L+_OUT
3 GND 4 GND 4 GND 4 LED_STB 4 L-_OUT
4 Vg 5 Vg 5 Vg 5 BUZZER
5 GND 6 KEY_INPUT1
6 Va CN800(SMPS)
7 KEY_INPUT2
8 GND AC INLET
9 NC Pin No. Signal
10 NC 1 AC Neutral
2 N/C
3 AC Live
6-2 Samsung Electronics
Wiring Diagram
6-1-2 Connector role
Loc. No. Description
CN5401 Horizontal Y-scan line(1~128) of Module and Y-Main Scan Connect
CN5402 Horizontal Y-scan line(129~256) of Module and Y-Main Scan Connect
CN5403 Horizontal Y-scan line(256~384) of Module and Y-Main Scan Connect
- Y-Main Scan(High) and Y-Main Scan(Low) Connect
CN5501 Horizontal Y-scan line(384~512) of Module and Y-Main Scan Connect
CN5502 Horizontal Y-scan line(512~640) of Module and Y-Main Scan Connect
CN5503 Horizontal Y-scan line(640~768) of Module and Y-Main Scan Connect
CN5407 Upper Y-Drive and Y-Main Scan Connect
CN5507 Lower Y-Drive and Y-Main Scan Connect
CN5707 Vs(205V),Vg(15v) Power input connect(6Pin) of Y-Drive
CN5701 Y-Drive control signal from Logic Board
CN810 Vs(205V),Vg(15v) Power input connect(6Pin) of SMPS for Y-Drive
CN809 Vs(205V),Vg(15v) Power input connect(6Pin) of SMPS for X-Drive
CN808 Va(63V) ,5.3V Power input connect(3Pin) of SMPS for F-Buffer
CN807 Power input connect(10pin) for Logic Board
CN801 Image signal(LVDS) connect(41pin) from Main Board
CN800 AC Power input connect from AC-inlet
CN4002 Horizontal X-scan line of Module and X-scan Connect(first Block)
CN4001 Horizontal X-scan line of Module and X-scan Connect(second Block)
- Horizontal X-scan line of Module and X-scan Connect(third Block)
CN2000 Power input connect(10pin) of Logic Board from SMPS
CN2001 Image signal(LVDS) connect(41pin) of Logic board from Main Board
CN2002 Y-Drive control signal of Logic Board
CN2004 Address Data(684th~1366th) connect for F-Buffer board
CN2028 Address Data(1st~683th) connect for E-Buffer board
CN2500 Address Data(1st~683th) connect from Logic Board
CN2510 Power input connect from F-Buffer Board
CN2610 Power input connect to E-Buffer Board
CN2600 Address Data(684th~1366th) connect from Logic board
CN2609 Va(63V) ,5.3V Power input connect(3Pin) from SMPS
CN1101 Power input connect(24Pin) from SMPS
CN2202 Image signal(LVDS) connect(41pin) for Logic board
CN1605 Function input(source,ch up/down...) connect on Main board
CN1404 Video signal input connect form Side AV ass'y
CN1606 Power SW input connect on Main Board
CN1203 Speak out connect on Main Board
CN101 Video signal input connect on Side AV ass'y
CN1 Function input(source,ch up/down...) connect to Main board
CN3 Power SW input connect to Main Board
Samsung Electronics 6-3
