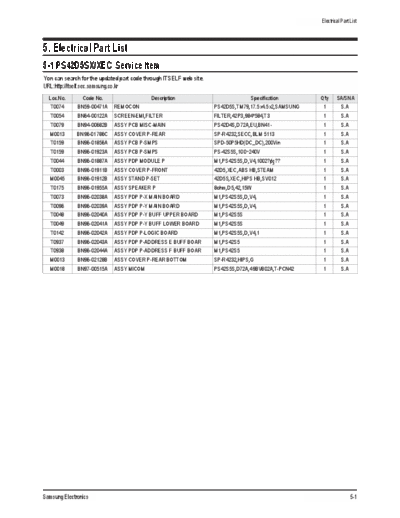

Image preview - the first page of the document
Electrical Part List


>> Download Electrical Part List documenatation <<

Text preview - extract from the document
                                                                                                      Electrical Part List



5. Electrical Part List
5-1 PS42D5SX/XEC Service Item
Yon can search for the updated part code through ITSELF web site.
URL:http://itself.sec.samsung.co.kr
  Loc.No.       Code No.                   Description                            Specification       Q'ty    SA/SNA
   T0074      BN59-00471A   REMOCON                                 PS42D5S,TM79,17.5x4.5x2,SAMSUNG    1         S.A
   T0054      BN64-00122A   SCREEN-EMI,FILTER                       FILTER,42P3,984*584,T3             1         S.A
   T0079      BN94-00682B   ASSY PCB MISC-MAIN                      PS42D4S,D72A,EU,BN41-              1         S.A
  M0013       BN96-01786C   ASSY COVER P-REAR                       SP-R4232,SECC,BLM 5113             1         S.A
   T0159      BN96-01856A   ASSY PCB P-SMPS                         SPD-50P5HD(DC_DC),200Vin           1         S.A
   T0159      BN96-01923A   ASSY PCB P-SMPS                         PS-42S5S,100~240V                  1         S.A
   T0044      BN96-01887A   ASSY PDP MODULE P                       M1,PS42S5S,D,V4,1002?
