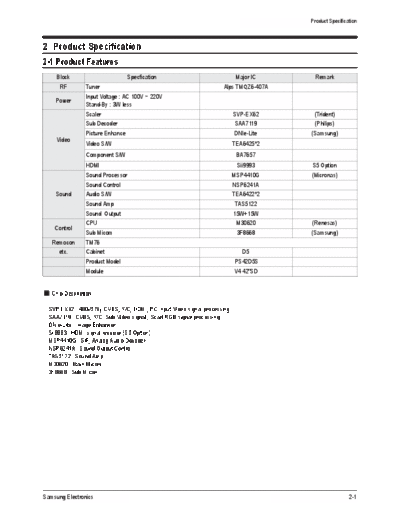

Image preview - the first page of the document
>> Download Product Specification documenatation <<
Text preview - extract from the document
Product Specification
2. Product Specification
2-1 Product Features
Block Specfication Major IC Remark
RF Tuner Alps TMQZ6-407A
Input Voltage : AC 100V ~ 220V
Power
Stand-By : 3W less
Scaler SVP-EX62 (Trident)
Sub Decoder SAA7119 (Philips)
Picture Enhance DNIe-Lite (Samsung)
Video
Video S/W TEA6425*2
Component S/W BA7657
HDMI Sii9993 S5 Option
Sound Processor MSP4410G (Micronas)
Sound Control NSP6241A
Sound Audio S/W TEA6422*2
Sound Amp TAS5122
Sound Output 15W+15W
CPU M30620 (Renesas)
Control
Sub Micom 3F8668 (Samsung)
Remocon TM76
etc. Cabinet D5
Product Model PS42D5S
Module V4 42"SD
Chip Description
- SVP-EX62 : 480i/576i, CVBS, Y/C, HDMI, PC input Video signal processing
- SAA7119 : CVBS, Y/C Sub Video signal , Scart RGB signal processing
- DNIe-Lite : Image Enhancer
- Sii9993 : HDMI signal receiver (S5 Option)
- MSP4410G : SIF, Analog Audio Decoder
- NSP6241A : Sound Output Control
- TAS5122 : Sound Amp
- M30620 : Main Micom
- 3F8668 : Sub Micom
Samsung Electronics 2-1
Product Specification
2-2 Key Features
Model PS-42D5S
Dimensions 1057.8 (W) x 98.3 (D) x 763.7 (H) mm
Weight 48 kg
Voltage AC 100 - 240V~ , 50 Hz
Power Consumption 290W
Number of Pixels 852 (H) x 480 (V)
Screen Size 42 inches
TV (VHF, UHF Antenna)
External input :CVBS/S-Video
VIDEO input COMPONENT1:480i/480p/720p/1080i
COMPONENT1:480i/480p/720p/1080i
PC
External input
COMPONENT1
AUDIO input
COMPONENT2
PC
AV Output VIDEO (CVBS), AUDIO (L/R)
Audio Output 15W + 15W (8)
H/W Configuration
- Video : SVP-EX62, TEA6425, BA7657F, DNIe-L
- Sound : MSP4440G, NSP6241A, TAS5122
- Tuner : TMQZ6-407A
S/W Configuration
- SVP-EX62 Trident Chip Control , DNIe-L
- CPU Master Control + Sub Micom, TTX Software
- Favorite CH, Label CH
- System : Video PAL/SECAM/NTSC4.43,
Sound Analog
- Progressive
- Output resolution : 852*480
- OSD : Smart user Interface Grade1
- Picture Enhancement : DNIe-L
- Still picture, Noise reduction
- Comb Filter : 3D comb filter
- PIP : D/W, Large
- Panorama : Wide
2-2 Samsung Electronics
Product Specification
Sound
- System : Stereo
- Dolby Digital : Tru Surround XT
- Output : 15W + 15W
- Speaker : built-in.
Feature
- Component Interface(480i/480p/720p/1080i, Y/Pb/Pr)
- Digital Interface : HDMI
- Picture Size : Wide/Wide 4:3/Panorama/Zoom/4:3
- Auto Program
- Sleep Timer : 180 minute
- Clock
- Zoom, Previous channel, White Screen, Color Tone
In/Out Terminals(Rear)
- 1 AV Input, 1 SVHS Input
- AV Monitor Output
- 2 Component Input : 480i / 480p / 720p / 1080i
- 15 Pin D-sub Input : ~ XGA (1024 x 768)
- 1 RF Input
Remocon
- Normal : TM76
Power Supply
- 100V ~ 240V
Power
- Standy-by : 3W less
- Max Power : 380W
Samsung Electronics 2-3
Product Specification
The table below shows all of the display modes that are supported. (N : Negative, P : Positive)
The interlace mode is not supported.
The television might operate abnormally if a non-standard video format is selected.
480i/p, 576i/p, 720p, or 1080i is not available in pc mode.
2-4 Samsung Electronics
Product Specification
2-3 Specifications Analysis
Model Puccini(V4) Mozart (V3) Nelson (V3)
Design
Display Type PDP TV PDP TV PDP TV
Built-In Tuner O O O
Resolution 852*480 852*480 852*480
PDP Module V4 V3 V3
Basic Screen Size 42 inches 42 inches 42 inches
Aspect Ratio 16:09 16:09 16:09
Power Consumption 290W 330W 330W
Dimensions 14255 (W) x 114 (D) x 825.4 (H) mm 14255 (W) x 114 (D) x 825.4 (H) mm 14255 (W) x 114 (D) x 825.4 (H) mm
Weight 59.2 kg 59.2 kg 59.2 kg
Brightness 1300cd/m2 1000cd/m2 1000cd/m2
Contrast Ratio 10000:1 3000:01:00 3000:01:00
Image Enhacer DNIe-L DNIe 3 DNIe 3
Digital Comb Filter O O O
Equalizer O O O
Auto Volume O O O
Audio Surround Sound SRS TreSurround XT SRS TreSurround XT SRS TreSurround XT
Speaker Output 15W +15W 15W +15W 15W +15W
Speaker Included Included Included
PIP O O O
Double Screen O O O
Caption X X X
Still Image O O O
My Color Control O O O
Color Weakness O O O
Features Energy Saving O X X
Anynet X X X
D-Net(IEEE1394 S.400) X X X
POD X X X
Gemstar
X X X
(TV Guide On Screen)
Screen Burn Protection O O O
Antenna 1Input 1Input 1Input
CVBS 1AV 3AV 1AV
S-Video 1Input 2Input 1Input
Component(Y/PB/PR) 1Input 1Input 1Input
PC(D-SUB) 1Input(15Pin D-Sub) 1Input(15Pin D-Sub) 1Input(15Pin D-Sub)
Connections
DVI X O O
HDMI 1Input X X
Sub Woofer X X X
Optical X X X
Coaxial X X X
Samsung Electronics 2-5
Product Specification
2-4 Accessories
Accessories Item Item code Remark
User Manual BN68-00868A
Supplied Accessories
Remote Control BN59-00471A Samsung Service center
AAA Batteries 4301-000103
Power Cord 3903-000193
S-VIDEO Cable -
Accessories that can be purchased
Component Cables (RCA) -
additionally
PC Cable - Internal shopping mall
PC Audio Cable -
Antenna Cable -
2-6 Samsung Electronics
