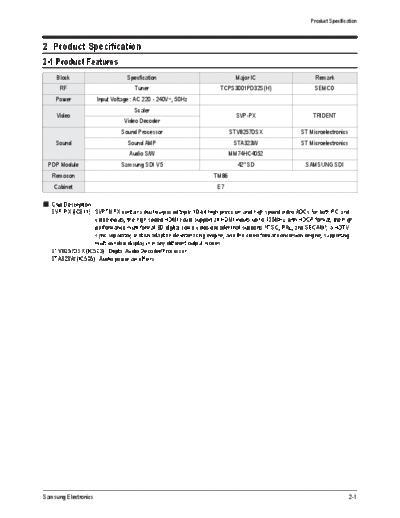

Image preview - the first page of the document
>> Download Спецификации documenatation <<
Text preview - extract from the document
Product Specification
2. Product Specification
2-1 Product Features
Block Specfication Major IC Remark
RF Tuner TCPS3001PD32S(H) SEMCO
Power Input Voltage : AC 220 - 240V~, 50Hz
Scaler
Video SVP-PX TRIDENT
Video Decoder
Sound Processor STV8257DSX ST Microelectronics
Sound Sound AMP STA323W ST Microelectronics
Audio S/W MM74HC4052
PDP Module Samsung SDI V5 42" SD SAMSUNG SDI
Remocon TM86
Cabinet E7
Chip Description
- SVP-PX (IC611) : SVPTMPX contains dual-purposed triple 10-bit high-precision and high speed video ADCs for both PC and
video inputs, the high speed HDMI could support all HDMI inputs up to 135MHz with HDCP format, the high-
performance multi-format 3D digital comb video decoder that supports NTSC, PAL, and SECAM*, a HDTV
sync separator, motion adaptive de-interlacing engine, and the video format conversion engine, supporting
multi-window display in many different output modes.
- STV8257DSX (IC503) : Digital Audio Decoder/Processor
- STA323W (IC505) : Audio power amplifiers
Samsung Electronics 2-1
Product Specification
2-2 Key Features
Model PS-42E71SR
Screen Size 107 Cm / 42 Inches (16:9)
Dimensions 1059(W) x 341(D) x 762.5(H) mm
Weight 39.5 Kg
EU : AC 220-240V~, 50Hz
Voltage
CIS : AC 100-240V~, 50/60Hz
Colour System PAL, SECAM, NT3.58, NT4.43
Sound System BG, DK, I, L
Number of Pixels 852(H) X 480(V)
ANTENNA input VHF, UHF (75 unbalanced)
SCART1, SCART2
AV (Side), S-VIDEO (Side)
VIDEO input 2 COMPONENT IN (480i/P, 576i/P, 720P, 1080i)
PC IN (MINI D-SUB 15P)
HDMI/DVI IN
SCART1, SCART2
AV (Side), S-VIDEO (Side)
AUDIO input 2 Component
PC
DVI
AUDIO OUT
Audio Output
Headphone (Side)
Speaker Output 10W + 10W ( 8 )
H/W Configuration
- Video : SVP-PX
- Sound : STA8257DSX, STA323W
- Tuner : TCLW3001PD32S (H)
S/W Configuration
- Main Micom : M30840SGP (IC202)
- Sub Micom : 3F866BXZZ (IC207)
- System : Video PAL/SECAM/NTSC4.43, Sound Analog
- Progressive
- Output resolution : 852*480
- OSD : Smart user Interface
- Picture Enhancement : FBE
- Still picture, Noise reduction
- Comb Filter : 3D comb filter
- PIP : Large
- Panorama : Wide
Sound
- System : Stereo
- Output : 10W + 10W
- Speaker : built-in
2-2 Samsung Electronics
Product Specification
Feature
- Component Interface (480i/480p/576i/576p/720p/1080i, Y/Pb/Pr)
- Digital Interface : HDMI
- Picture Size : Auto Wide/16:9/Wide4:3/Zoom/4:3
- Auto Store
- Sleep Timer : 180 minute
- Clock
- Zoom, Previous channel, Blue Screen, Color Tone, Screen Burn Protection
Remocon
- TM86
Power Supply
- EU : AC 220-240V, 50Hz
- CIS : AC 100-240V~, 50/60Hz
Power Consumption
- Max Power : 310 W
Both screen position and size will vary depending on the type of PC monitor and its resolution.
The table below shows all of the display modes that are supported. (N : Negative, P : Positive)
Resolution Vertical frequency Horizontal frequency Vertical Horizontal
Video Signal
(Dot X Line) (Hz) (kHz) polarity polarity
640 X 350 70.086 31.469 P N
720 X 400 70.087 31.469 N P
59.940 31.469 N N
70.000 35.000 N/P N/P
640 X 480
72.809 37.861 N N
75.000 37.500 N N
56.250 35.156 N/P N/P
60.317 37.879 P P
IBM PC / AT
800 X 600 70.000 43.750 N/P N/P
Compatible
72.188 48.077 P P
75.000 46.875 P P
60.000 31.020 P P
848 X 480
74.769 37.684 P N
60.004 48.363 N N
70.069 56.476 N N
1024 X 768
72.000 57.672 N/P N/P
75.029 60.023 P P
The interlace mode is not supported.
The television might operate abnormally if a non-standard video format is selected.
480i/p, 576i/p, 720p, or 1080i is not available in PC mode.
The PC text quality is optimum in WVGA mode (848 x 480@60Hz).
Samsung Electronics 2-3
Product Specification
2-3 Specifications Analysis
Model PS-42E71SR (Audi-42SD) Puccini (V4)
Design
Display Type PDP TV PDP TV
Built-In Tuner O O
Resolution 852 x 480 1024 x 768
PDP Module V5 V4
Basic Screen Size 42 inches 42 inches
Aspect Ratio 16 : 9 16 : 9
Power Consumption 310 W 380 W
Dimensions 1059(W) x 341(D) x 762.5(H) mm 1050(W) x 86(D) x 755(H) mm
Weight 39.5 Kg 59.2 Kg
Brightness 1,100 Cd/m2 1,300 Cd/m2
Picture Contrast Ratio 5000:1 10,000 : 1
Image Enhacer FBE DNIe-L
Equalizer O O
Auto Volume O O
Audio Surround Sound SRS TruSurround SRS TruSurround
Speaker Output 10 W + 10 W 15 W + 15 W
Speaker Included Included
PIP O O
Double Screen X O
TTX O O
Still Image O O
Features
My Color Control X O
Color Weakness X O
Energy Saving O O
Screen Burn Protection O O
Antenna 1 Input 1Input
CVBS 2 AV 1AV
S-Video 1 Input 1 Input
Component(Y/PB/PR) 2 Input 1 Input
PC(D-SUB) 1 Input 1 Input
Connections
DVI X X
HDMI 1 Input 1 Input
Sub Woofer X X
Optical X X
Coaxial X X
2-4 Samsung Electronics
Product Specification
2-4 Accessories
Accessories Item Item code Remark
User Manual BN68-00989S
Supplied Accessories
Remote Control BN59-00531A
AAA Batteries 4301-000103
Samsung Service center
Power Cord 3903-000145
Core Ferrite 3301-001110
S-VIDEO Cable -
HDMI Cable -
HDMI/DVI cable -
Accessories that can be purchased
Component Cables (RCA) -
additionally
Internal shopping mall
PC Cable -
PC Audio Cable -
Antenna Cable -
Scart Cable -
Samsung Electronics 2-5
